680S21W Series
Manufacturer: NorComp Inc.
Beta
⌘K

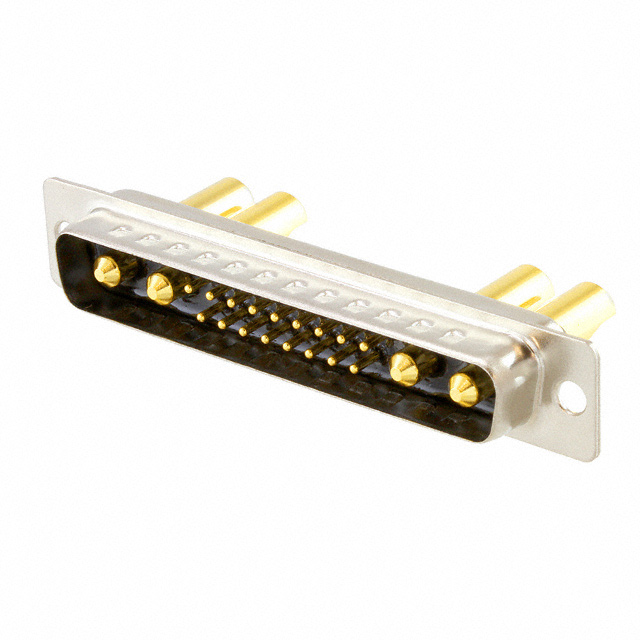

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-21WA4, RECEPTACLE
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Material, Finish | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Contact Type | Contact Finish | Material Flammability Rating | Connector Type | Shell Size, Connector Layout | Mounting Type | Number of Positions | Flange Feature | Ingress Protection | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Brass | Nickel Plated Steel | Flash | Combo D-Sub | 2 | Signal and Power | Gold | UL94 V-0 | Receptacle Female Sockets | 4 (DC C) - 21WA4 | Panel Mount | 21 | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | 3 A 20 A | |
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Copper Alloy | Nickel Plated Steel | Flash | Combo D-Sub | 2 | Signal and Power | Gold | UL94 V-0 | Plug Male Pins | 4 (DC C) - 21WA4 | Panel Mount | 21 | Housing/Shell (Unthreaded) | IP67 - Dust Tight Waterproof | 5 A 40 A | Grounding Indents |
