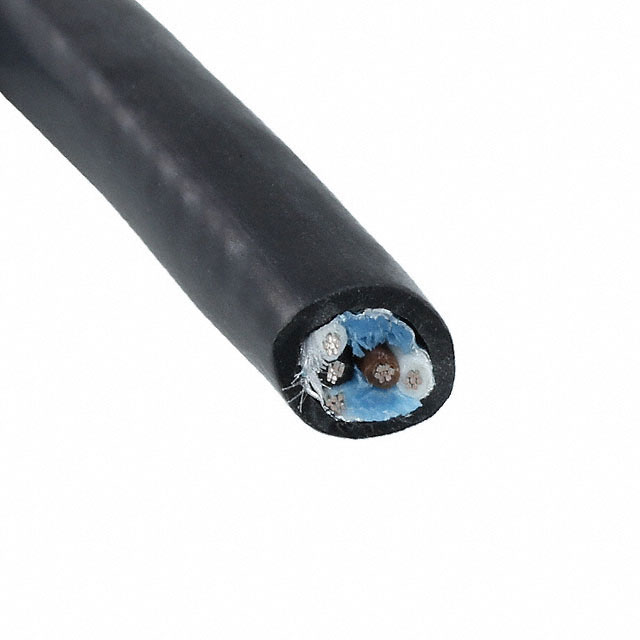

45482 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 22AWG WHT 1000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Shield Type | Jacket Color | Length | Length | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Wire Gauge | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 1.143 mm | 0.045 in | Multi-Pair | Foil | White | 304.8 m | 1000 ft | 0.301 in | 7.65 mm | 22 AWG | 300 VDC | 125 °C | -50 °C | Biological Compatibility Drain Wire Rip Cord | 30 AWG | 7 | 4 | TPE | Thermoplastic Elastomer | ||
ALPHA WIRE | Aluminum | 100 % | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 1.143 mm | 0.045 in | Multi-Pair | Foil | Slate | 304.8 m | 1000 ft | 0.301 in | 7.65 mm | 22 AWG | 300 VDC | 125 °C | -50 °C | Biological Compatibility Drain Wire Rip Cord | 30 AWG | 7 | 4 | TPE | Thermoplastic Elastomer | ||
 ALPHA WIRE | Aluminum | 100 % | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 1.143 mm | 0.045 in | Multi-Pair | Foil | Black | 0.301 in | 7.65 mm | 22 AWG | 300 VDC | 125 °C | -50 °C | Biological Compatibility Drain Wire Rip Cord | 30 AWG | 7 | 4 | TPE | Thermoplastic Elastomer | 100 ft | 30.5 m |
