EEA.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 5POS GOLD SOLDER

Part	Fastening Type	Shell Finish	Shell Material	Material Flammability Rating	Insert Material	Primary Material	Shell Size - Insert	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Mounting Feature	Termination	Contact Finish - Mating	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Ingress Protection	Orientation	Current Rating (Amps)	Shell Size - Insert [custom]
LEMO EEA.1B.305.CLN	Push-Pull	Chrome	Brass	UL94 V-0	Polyetheretherketone (PEEK)	Metal	305	Silver	Receptacle Female Sockets	-55 C	250 °C	5	Bronze	Bulkhead - Front Side Nut	Solder	Gold	Shielded	1.5 Ám	59 Áin	Panel Mount Through Hole	IP50 - Dust Protected	A	9 A

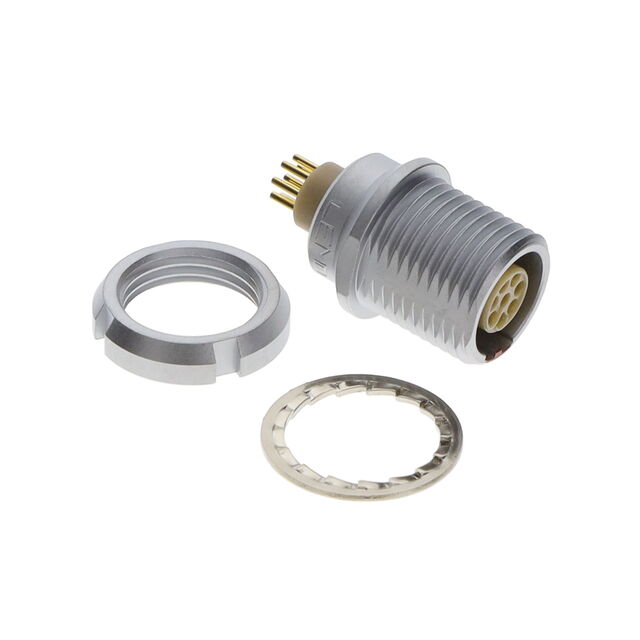

LEMO EEA.1B.308.CLN	Push-Pull	Chrome	Brass	UL94 V-0	Polyetheretherketone (PEEK)	Metal	308	Silver	Receptacle Female Sockets	-55 C	250 °C	8	Bronze	Bulkhead - Front Side Nut	Solder	Gold	Shielded	1.5 Ám	59 Áin	Panel Mount Through Hole	IP50 - Dust Protected	A	5 A
LEMO EEA.1B.304.CYM	Push-Pull	Chrome	Brass	UL94 V-0	Polyetheretherketone (PEEK)	Metal	304	Silver	Receptacle Female Sockets	-55 C	250 °C	4	Bronze	Bulkhead - Front Side Nut	Crimp	Gold	Shielded	1.5 Ám	59 Áin	Panel Mount	IP50 - Dust Protected	A	10 A
LEMO EEA.1B.307.CLN	Push-Pull	Chrome	Brass	UL94 V-0	Polyetheretherketone (PEEK)	Metal		Silver	Receptacle Female Sockets	-55 C	250 °C	7	Bronze	Bulkhead - Front Side Nut	Solder	Gold	Shielded	1.5 Ám	59 Áin	Panel Mount Through Hole	IP50 - Dust Protected	A	7 A	307
