M55-600 Series

Catalog

CONN RCPT 20POS 0.05 GOLD SMD

Part	Insulation Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Number of Rows [custom]	Insulation Height	Insulation Height	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Voltage Rating	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Features	Fastening Type	Connector Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]

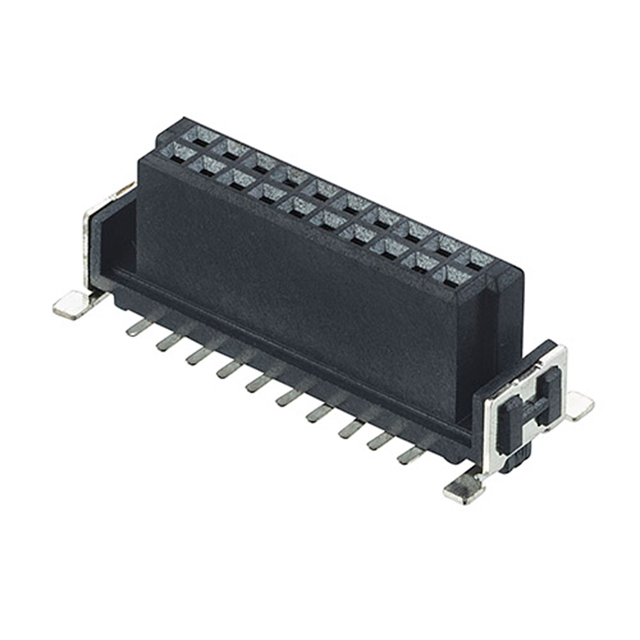

Harwin Inc. M55-6002042R	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Tin	0.05 in	1.27 mm	Solder	20	Gold	Black	UL94 V-0	2	6.25 mm	0.246 in	8 mm 9.5 mm 11.1 mm	1.27 mm	0.05 in	100 VAC	Surface Mount	Female Socket	0.025 µm	1 µin	1.2 A	Board Guide Pick and Place Solder Retention	Latch Holder	Receptacle	All	-55 C	125 °C
Harwin Inc. M55-6005042R	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Tin	0.05 in	1.27 mm	Solder	50	Gold	Black	UL94 V-0	2	6.25 mm	0.246 in	8 mm 9.5 mm 11.1 mm	1.27 mm	0.05 in	100 VAC	Surface Mount	Female Socket	0.025 µm	1 µin	1.2 A	Board Guide Pick and Place Solder Retention	Latch Holder	Receptacle	All	-55 C	125 °C

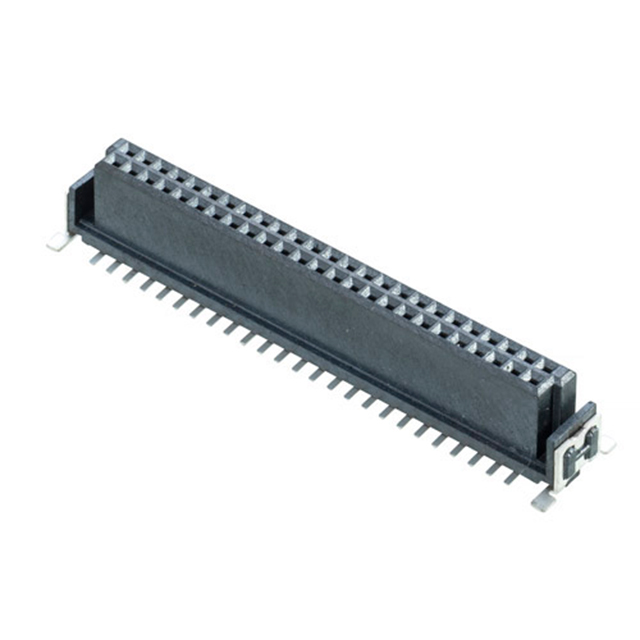

Harwin Inc. M55-6004042R	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Tin	0.05 in	1.27 mm	Solder	40	Gold	Black	UL94 V-0	2	6.25 mm	0.246 in	8 mm 9.5 mm 11.1 mm	1.27 mm	0.05 in	100 VAC	Surface Mount	Female Socket	0.025 µm	1 µin	1.2 A	Board Guide Pick and Place Solder Retention	Latch Holder	Receptacle	All	-55 C	125 °C

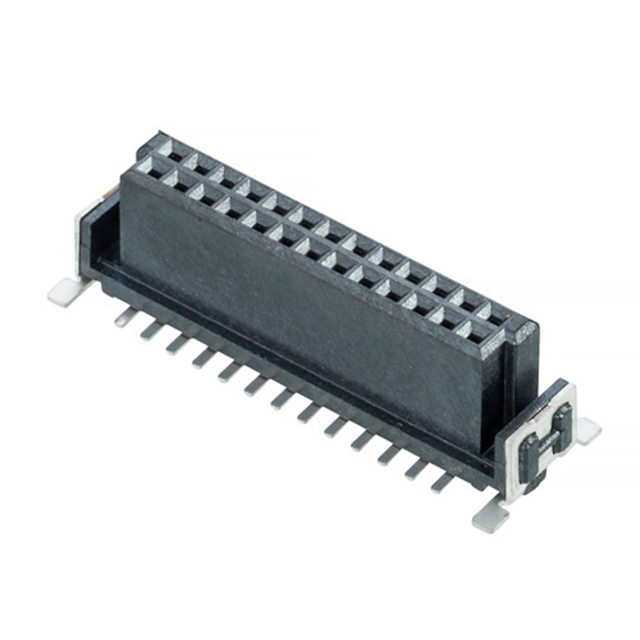

Harwin Inc. M55-6002642R	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Tin	0.05 in	1.27 mm	Solder	26	Gold	Black	UL94 V-0	2	6.25 mm	0.246 in	8 mm 9.5 mm 11.1 mm	1.27 mm	0.05 in	100 VAC	Surface Mount	Female Socket	0.025 µm	1 µin	1.2 A	Board Guide Pick and Place Solder Retention	Latch Holder	Receptacle	All	-55 C	125 °C

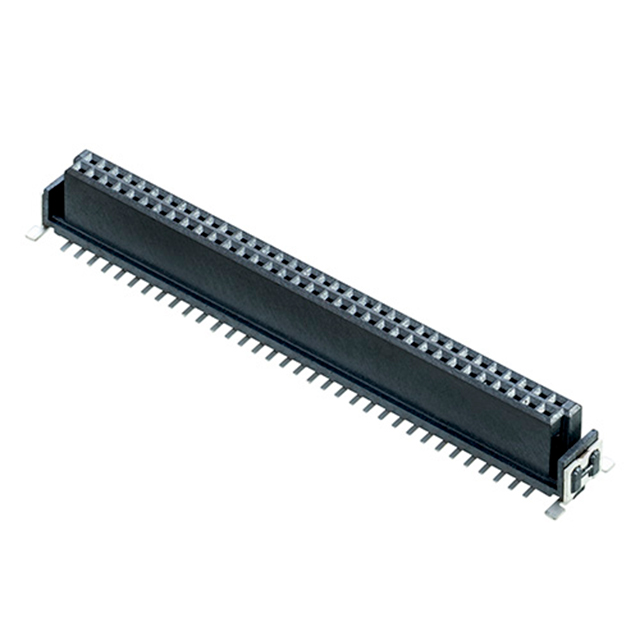

Harwin Inc. M55-6006842R	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	2.54 µm	100 µin	Rectangular	Phosphor Bronze	Tin	0.05 in	1.27 mm	Solder	68 positions	Gold	Black	UL94 V-0	2	6.25 mm	0.246 in	8 mm 9.5 mm 11.1 mm	1.27 mm	0.05 in	100 VAC	Surface Mount	Female Socket	0.025 µm	1 µin	1.2 A	Board Guide Pick and Place Solder Retention	Latch Holder	Receptacle	All	-55 C	125 °C
