845-122 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 122POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Contact Material	Number of Positions	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Finish	Card Type	Color	Features
EDAC Inc. 845-122-542-512	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green
EDAC Inc. 845-122-542-803	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green
EDAC Inc. 845-122-541-507	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	M3 Threaded Insert Top Mount Opening			Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green
EDAC Inc. 845-122-544-508	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	4-40 Threaded Insert Top Mount Opening			Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green

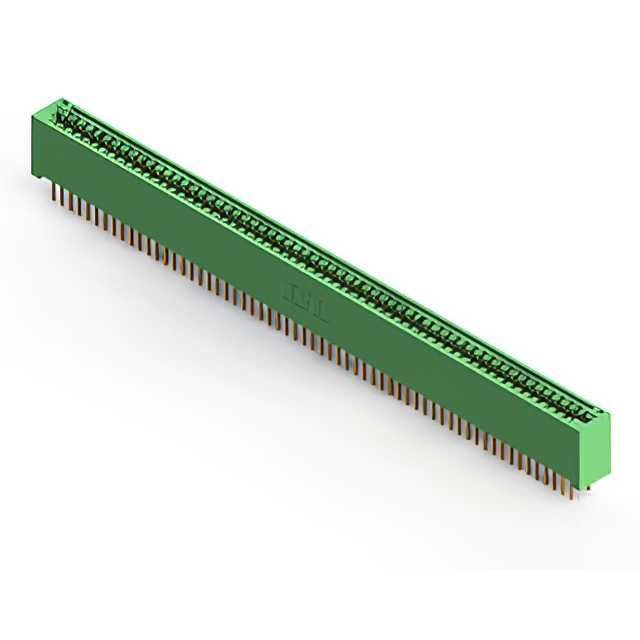

EDAC Inc. 845-122-540-201	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61				Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green

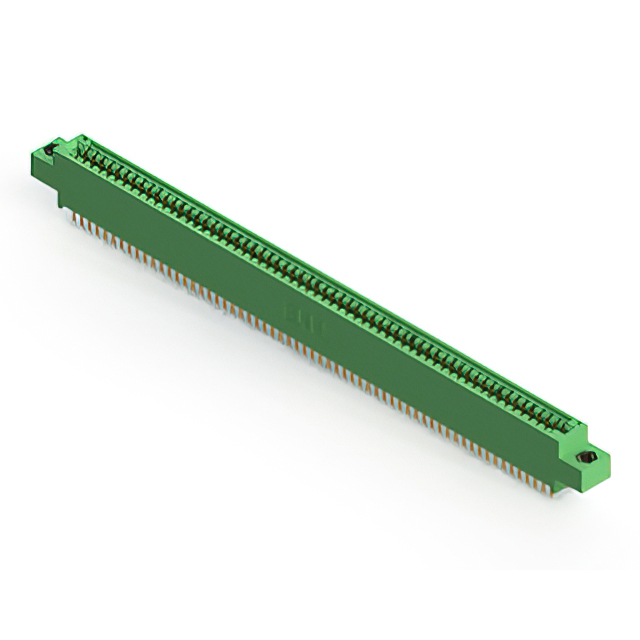

EDAC Inc. 845-122-525-807	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Solder	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	M3 Threaded Insert Top Mount Opening			Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green
EDAC Inc. 845-122-542-812	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green

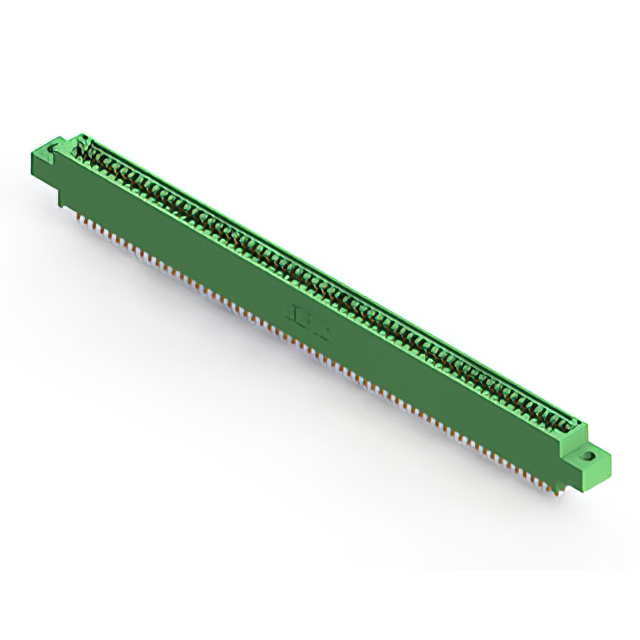

EDAC Inc. 845-122-556-804	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Solder	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61		0.156 "	3.96 mm	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green	Card Extender
EDAC Inc. 845-122-544-212	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Wire Wrap	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green

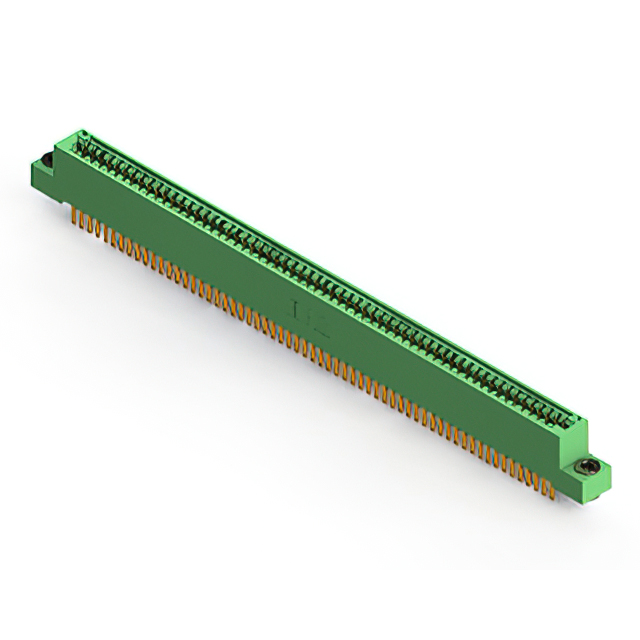

EDAC Inc. 845-122-500-203	2	Diallyl Phthalate (DAP)	2	Copper Alloy	122	Solder Eyelet(s)	Female	0.25 Ám	10 Áin	0.1 "	2.54 mm	61	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Cantilever	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	Green
