ZC-D55 Series

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Operating Force	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Mounting Type	Electrical Life	Termination Style	Current Rating (Amps)	Differential Travel	Differential Travel	Pretravel	Pretravel	Mechanical Life	Voltage Rating - AC	Operating Position	Operating Position	Switch Function	Ingress Protection	Circuit	Features

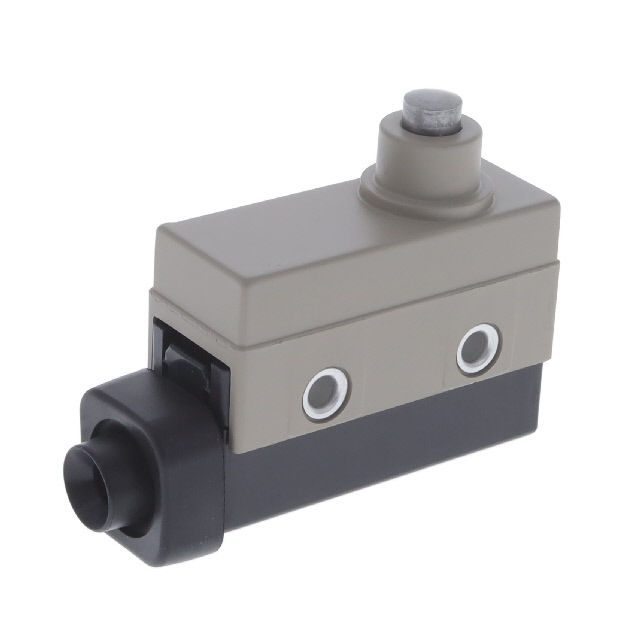

Omron Automation and Safety ZC-D55-01	1200 gf	500 gf	-10 °C	80 °C	Round (Pin Plunger)	2.4 mm	0.094 "	30 V	Chassis Mount	500000 Cycles	Screw Terminal	100 mA	0.2 mm	0.008 in	0.06 in	1.5 mm	10000000 Cycles	125 V	1.276 "	32.4 mm	On-Mom	IP67 - Dust Tight Waterproof	SPDT
Omron Automation and Safety ZC-D55-L4	1200 gf	500 gf	-10 °C	80 °C	Round (Pin Plunger)	2.4 mm	0.094 "	30 V	Chassis Mount	500000 Cycles	Screw Terminal	6 A 10 A	0.2 mm	0.008 in	0.06 in	1.5 mm	10000000 Cycles	125 V	1.276 "	32.4 mm	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Status Indicator
