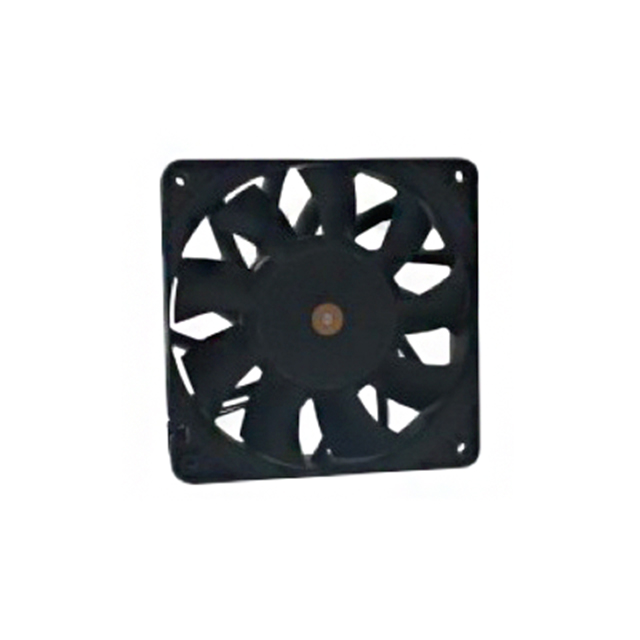

MR1238 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Weight	Weight	Features	Fan Type	Noise	RPM	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Bearing Type	Approval Agency	Width [y]
Mechatronics Fan Group MR1238L48B1-FSR	Plastic	320 mA	Plastic	0.838 lb	380.11 g	Auto Restart Speed Sensor (Tach)	Tubeaxial	58.5 dB	3500 RPM	120 mm	120 mm	48 VDC	0.66 in H2O	164.4 Pa	5.16 m³/min	184.4 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238E48B1+6-FSR	Plastic	0.95 A	Plastic	0.838 lb	380.11 g	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	67.9 dB(A)	5000 RPM	120 mm	120 mm	48 VDC	1.325 in H2O	330 Pa	7.31 m³/min	261 CFM	4 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238L24B2-FSR	Plastic	650 mA	Plastic	0.838 lb	380.11 g	Auto Restart Locked Rotor Sensor	Tubeaxial	58.5 dB	3500 RPM	120 mm	120 mm	24 VDC	0.66 in H2O	164.4 Pa	5.16 m³/min	184.4 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238E24B1+6-FSR	Plastic	1.9 A	Plastic	0.838 lb	380.11 g	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	67.9 dB(A)	5000 RPM	120 mm	120 mm	24 VDC	1.325 in H2O	330 Pa	7.31 m³/min	261 CFM	4 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238H24B1+6-FSR	Plastic	1.3 A	Plastic	0.838 lb	380.11 g	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	64.6 dB(A)	4500 RPM	120 mm	120 mm	24 VDC	1.075 in H2O	267.8 Pa	6.58 m³/min	235 CFM	4 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238E24B2-FSR	Plastic	1.9 A	Plastic	0.838 lb	380.11 g	Auto Restart Locked Rotor Sensor	Tubeaxial	67.9 dB(A)	5000 RPM	120 mm	120 mm	24 VDC	1.325 in H2O	330 Pa	7.31 m³/min	261 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238E48B1-FSR	Plastic	0.95 A	Plastic	0.838 lb	380.11 g	Auto Restart Speed Sensor (Tach)	Tubeaxial	67.9 dB(A)	5000 RPM	120 mm	120 mm	48 VDC	1.325 in H2O	330 Pa	7.31 m³/min	261 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238M48B2-FSR	Plastic	460 mA	Plastic	0.838 lb	380.11 g	Auto Restart Locked Rotor Sensor	Tubeaxial		4000 RPM	120 mm	120 mm	48 VDC	0.85 in H2O	211.7 Pa	5.88 m³/min	210 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238M48B1-FSR	Plastic	460 mA	Plastic	0.838 lb	380.11 g	Auto Restart Speed Sensor (Tach)	Tubeaxial		4000 RPM	120 mm	120 mm	48 VDC	0.85 in H2O	211.7 Pa	5.88 m³/min	210 CFM	3 Wire Leads	Ball	CE cUL TUV UL	38 mm
Mechatronics Fan Group MR1238L48B1+6-FSR	Plastic	320 mA	Plastic	0.838 lb	380.11 g	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	58.5 dB	3500 RPM	120 mm	120 mm	48 VDC	0.66 in H2O	164.4 Pa	5.16 m³/min	184.4 CFM	4 Wire Leads	Ball	CE cUL TUV UL	38 mm
