EVAL800 Series
Manufacturer: INFINEON
Beta
⌘K

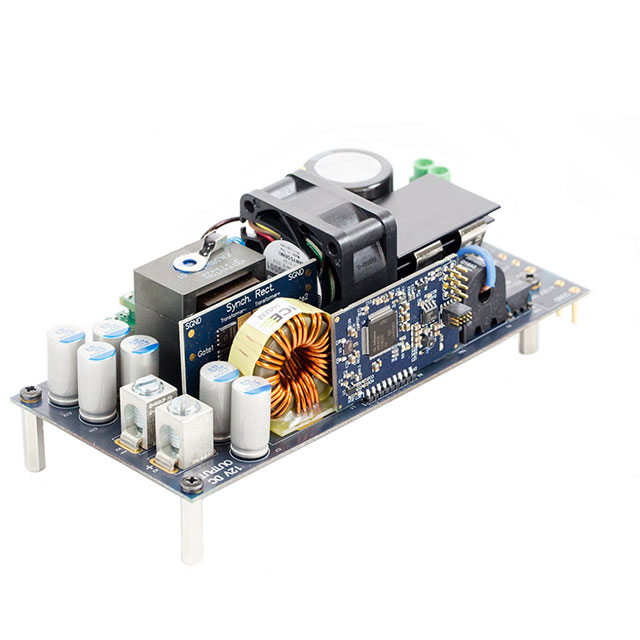

THIS 800W EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TESTPLATFORM FOR SERVER APPLICATIONS TO SHOW OPERATION OF THE 600V COOLMOS C7, 650V SIC DIODE , OPTIMOS 40V, QUASI RESONAT FLYBACK (QR) AND XMC 1400/4200 CONTROLLER.THE EVALUATION BOARD IS DESIGNED AROUND THE INFINEON 600V COOLMOS 4-PIN DEVICE AND THE COST EFFECTIVE OPTIMOS 40V TECHNOLOGY TO SHOW SWITCHING PERFORMANCE AND POWER DENSITY DESIGN .
| Part | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Outputs and Type | Regulator Topology | Voltage - Output | Frequency - Switching | Current - Output | Contents | Power - Output | Supplied Contents | Function | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | ICE3RBR4765JZ XMC4200 | 410 V | 350 V | DC/DC Step Down | 1 Isolated Output | Buck | 12 V | 100 kHz | 67 A | Board(s) | 800 W | |||
 INFINEON | ICE2QR2280Z ICE3PCS01G | Board(s) | Board(s) | Power Factor Correction | Power Management |
