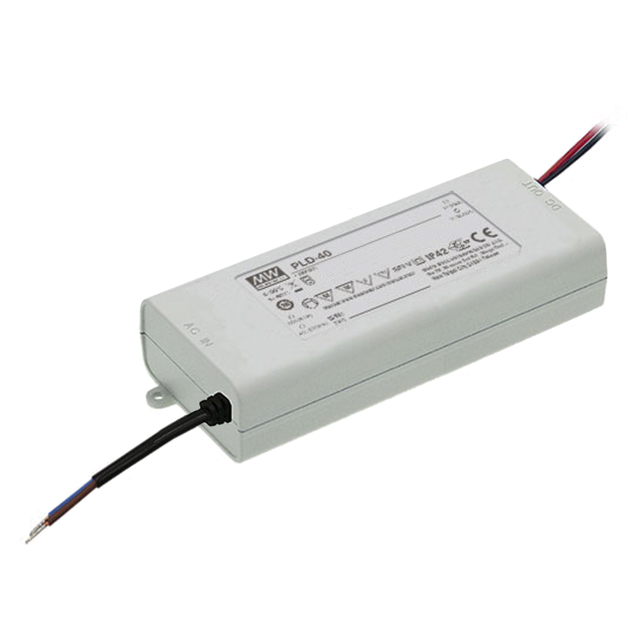

PLD-40 Series

Catalog

LED DRVR CC AC/DC 13-23V 1.75A

Part	Mounting Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	Type	Power (Watts)	Termination Style	Ratings	Voltage - Input (Min) [Min]	Efficiency	Topology	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. PLD-40-1750B	Chassis Mount	OTP SCP	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	1	295 VAC	-30 ░C	50 °C	1.75 A	CB CE ENEC	Constant Current	40 W	Wire Leads	IP42	180 VAC	86 %	AC DC Converter	3750 VDC	13 V	23 V
MEAN WELL USA Inc. PLD-40-1400B	Chassis Mount	OTP SCP	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	1	295 VAC	-30 ░C	50 °C	1.4 A	CB CE ENEC	Constant Current	41 W	Wire Leads	IP42	180 VAC	86 %	AC DC Converter	3750 VDC	17 V	29 V
MEAN WELL USA Inc. PLD-40-500B	Chassis Mount	OTP SCP	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	1	295 VAC	-30 ░C	50 °C	500 mA	CB CE ENEC	Constant Current	40 W	Wire Leads	IP42	180 VAC	88 %	AC DC Converter	3750 VDC	45 V	80 VDC
MEAN WELL USA Inc. PLD-40-700B	Chassis Mount	OTP SCP	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	1	295 VAC	-30 ░C	50 °C	700 mA	CB CE ENEC	Constant Current	40 W	Wire Leads	IP42	180 VAC	87 %	AC DC Converter	3750 VDC	34 V	57 V
