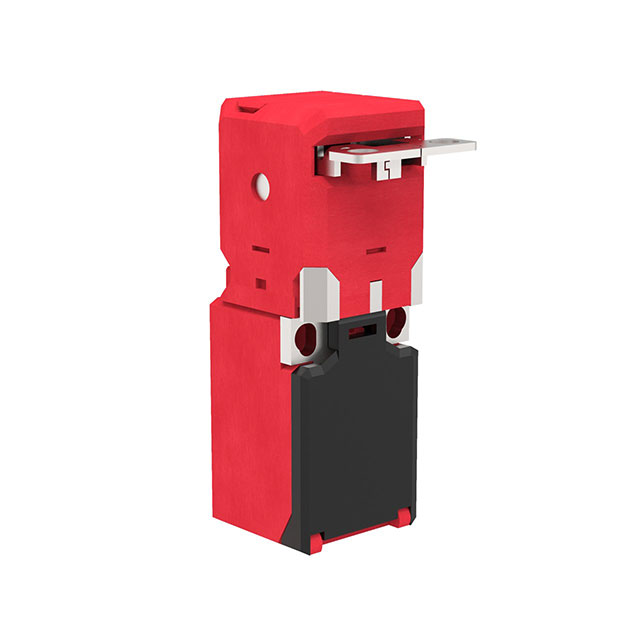

SI-LS83 Series

Catalog

LIMIT SWITCH: STANDARD IN-LINE

Part	Voltage Rating	Termination Style	Conduit Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Approval Agency	Actuator Type	Circuit	Ingress Protection	Type
BANNER ENGINEERING SI-LS83SE	24 VDC 110 VAC	Screw Terminal	M16	80 °C	-30 ░C	6 A 10 A	CE CSA UL	Panel Disconnect	DPST-NC	IP65 - Dust Tight Water Resistant	Non-Locking
BANNER ENGINEERING SI-LS83SRAD	24 VDC 110 VAC	Screw Terminal	M16	80 °C	-30 ░C	6 A 10 A	CE CSA UL	Panel Disconnect	DPST-NO/NC	IP65 - Dust Tight Water Resistant	Non-Locking

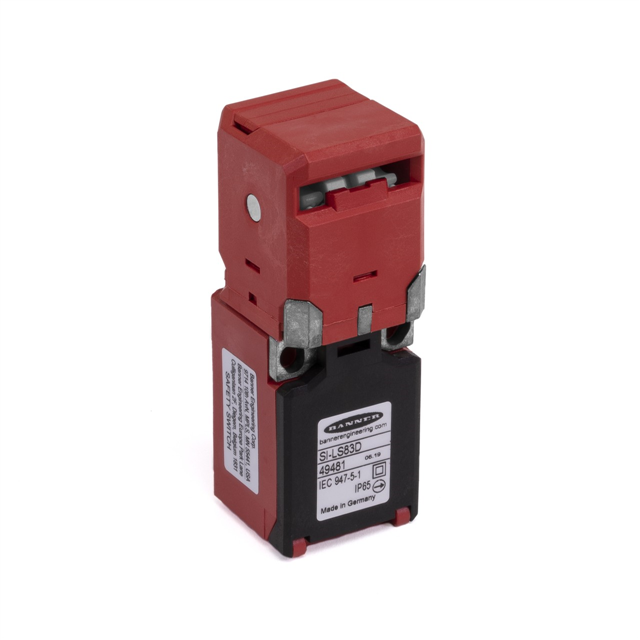

BANNER ENGINEERING SI-LS83D	24 VDC 110 VAC	Screw Terminal	M16	80 °C	-30 ░C	6 A 10 A	CE CSA UL	Panel Disconnect	DPST-NO/NC	IP65 - Dust Tight Water Resistant	Non-Locking
BANNER ENGINEERING SI-LS83SRAE	24 VDC 110 VAC	Screw Terminal	M16	80 °C	-30 ░C	6 A 10 A	CE CSA UL	Panel Disconnect	DPST-NC	IP65 - Dust Tight Water Resistant	Non-Locking
