PGA450-Q1 Series
Ultrasonic Sensor Signal Processor with Integrated Microcontroller (MCU)
Manufacturer: Texas Instruments
Catalog
Ultrasonic Sensor Signal Processor with Integrated Microcontroller (MCU)
| Part | Package / Case | Package / Case | Package / Case [y] | Supplier Device Package | Current - Supply | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Grade | Type | Utilized IC / Part | Supplied Contents | Function | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 28-TSSOP | 0.173 in | 4.4 mm | 28-TSSOP | 15 mA | Surface Mount | 125 °C | -40 °C | AEC-Q100 | Automotive | Signal Conditioner | ||||

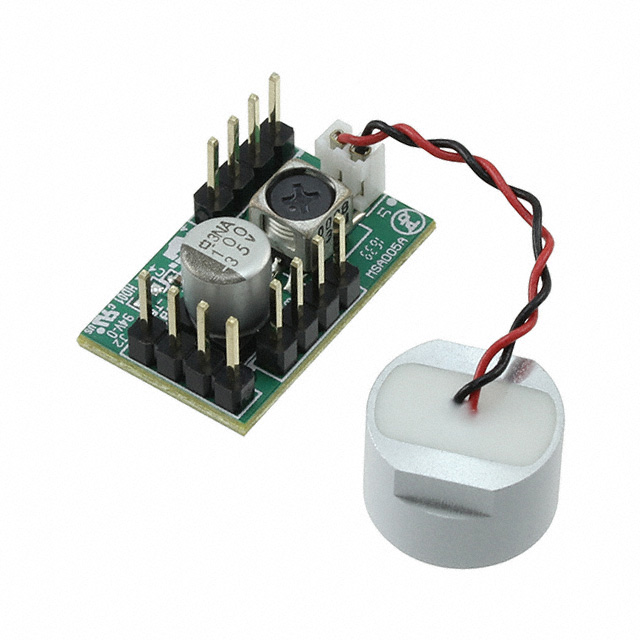

 Texas Instruments | Interface | PGA450-Q1 | Board(s) | Sensor Signal Conditioner |
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeMeasurements up to 7 Meters through AirDual NMOS Low-Side DriversConfigurable Burst GeneratorLow-Noise Amplifier12-Bit SAR ADCConfigurable Digital Bandpass FilterDigital Signal Envelope DetectOn-Chip 8-Bit MicroprocessorLIN 2.1 Physical Interface and ProtocolWatchdog TimerFour-Wire SPI for Testability and Programming8K Bytes of OTP768 Bytes of FIFO RAM256 Bytes of Scratchpad RAM8K Bytes of Development RAM32 Bytes of EEPROM for ApplicationAll trademarks are the property of their respective owners.Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeMeasurements up to 7 Meters through AirDual NMOS Low-Side DriversConfigurable Burst GeneratorLow-Noise Amplifier12-Bit SAR ADCConfigurable Digital Bandpass FilterDigital Signal Envelope DetectOn-Chip 8-Bit MicroprocessorLIN 2.1 Physical Interface and ProtocolWatchdog TimerFour-Wire SPI for Testability and Programming8K Bytes of OTP768 Bytes of FIFO RAM256 Bytes of Scratchpad RAM8K Bytes of Development RAM32 Bytes of EEPROM for ApplicationAll trademarks are the property of their respective owners.
Description
AI
The PGA450-Q1 device is a fully integrated system-on-a-chip analog front-end for ultrasonic sensing in automotive park-assist, object-detection through air, level sensing in large tanks, and distance measurements for anti-collision and landing assist of unmanned systems (such as drones, cameras, and robots). This highly integrated device enables a small form-factor and cost-optimized solution compared to discrete ultrasonic-sensor solutions. The PGA450-Q1 device can measure distances ranging from less than 1 meter up to 7 meters, at a resolution of 1 cm depending on the transducer-transformer sensor pair used in the system.
The PGA450-Q1 device has an integrated 8051 8-bit microcontroller and OTP memory for program storage to process the echo signal and calculate the distance between the transducer and targeted object. Full programmability is available for optimization of specific end applications, and to accommodate a wide-range of closed-top or open-top transducers. Configurable variables include the number of transmit pulses, driving frequency, LNA gain, and comparison signal thresholds. External communication with the PGA450-Q1 device is capable through the LIN 2.1 protocol, SPI, or UART interfaces.
The PGA450-Q1 device is a fully integrated system-on-a-chip analog front-end for ultrasonic sensing in automotive park-assist, object-detection through air, level sensing in large tanks, and distance measurements for anti-collision and landing assist of unmanned systems (such as drones, cameras, and robots). This highly integrated device enables a small form-factor and cost-optimized solution compared to discrete ultrasonic-sensor solutions. The PGA450-Q1 device can measure distances ranging from less than 1 meter up to 7 meters, at a resolution of 1 cm depending on the transducer-transformer sensor pair used in the system.
The PGA450-Q1 device has an integrated 8051 8-bit microcontroller and OTP memory for program storage to process the echo signal and calculate the distance between the transducer and targeted object. Full programmability is available for optimization of specific end applications, and to accommodate a wide-range of closed-top or open-top transducers. Configurable variables include the number of transmit pulses, driving frequency, LNA gain, and comparison signal thresholds. External communication with the PGA450-Q1 device is capable through the LIN 2.1 protocol, SPI, or UART interfaces.
