1571541 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

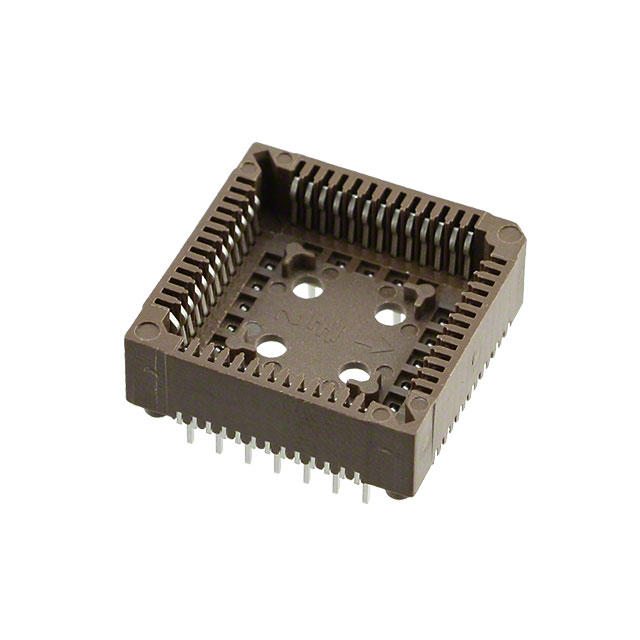

CONN SOCKET PLCC 52POS TIN
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Contact Finish - Post | Type | Contact Material - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Termination | Contact Material - Post [custom] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 A | 30 mOhm | UL94 V-0 | Tin | PLCC | Copper Alloy | 4 x 13 | 52 | 0.1 " | 2.54 mm | 180 µin | 4.57 µm | Closed Frame | Through Hole | 180 µin | 4.57 µm | 0.1 in | 2.54 mm | Solder | Copper Alloy | ||
 TE Connectivity AMP Connectors | 1 A | 30 mOhm | UL94 V-0 | Tin | PLCC | Copper Alloy | 44 | 0.1 " | 2.54 mm | 180 µin | 4.57 µm | Closed Frame | Through Hole | 180 µin | 4.57 µm | 0.1 in | 2.54 mm | Solder | Copper Alloy | 11 | 4 |
