90142 Series

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 32 Circuits, Black

Manufacturer: Molex

Catalog

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 32 Circuits, Black

Catalog

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 32 Circuits, Black

Part	Note	Connector Type	Contact Termination	Number of Rows [custom]	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Mounting Type	Row Spacing	Row Spacing	Insulation Material	Pitch	Pitch

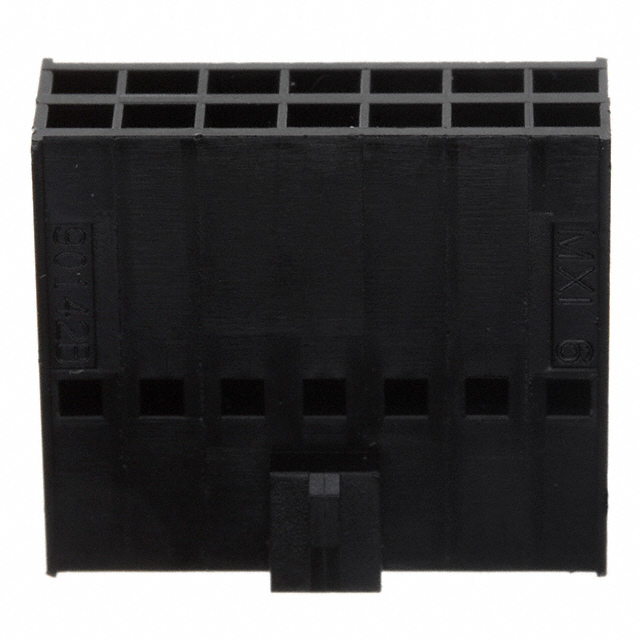

Molex 0901420014	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	14	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm

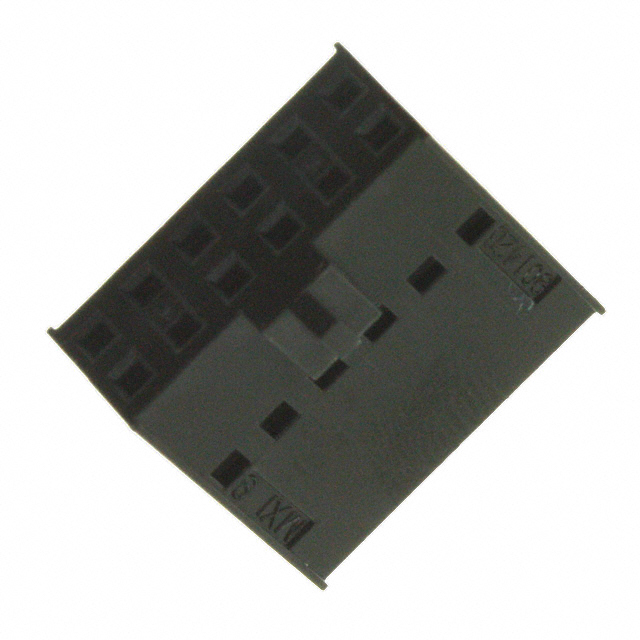

Molex 0901420012	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	12	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm

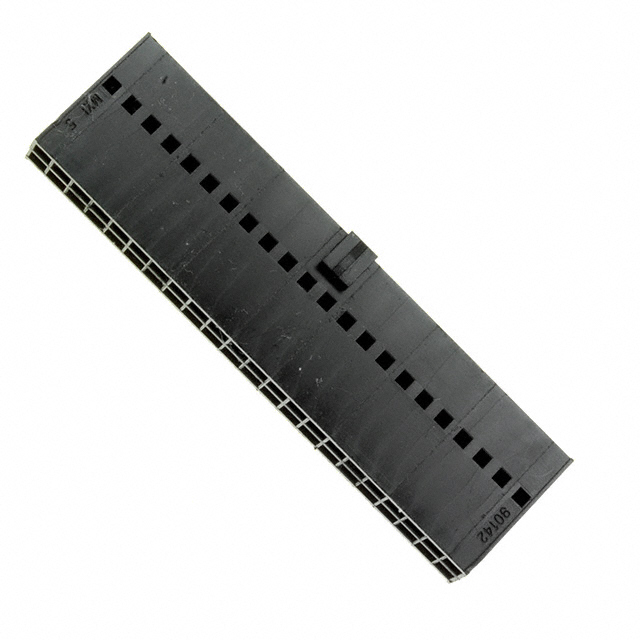

Molex 0901420044	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	44	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm
Molex 0901420022	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	22	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm

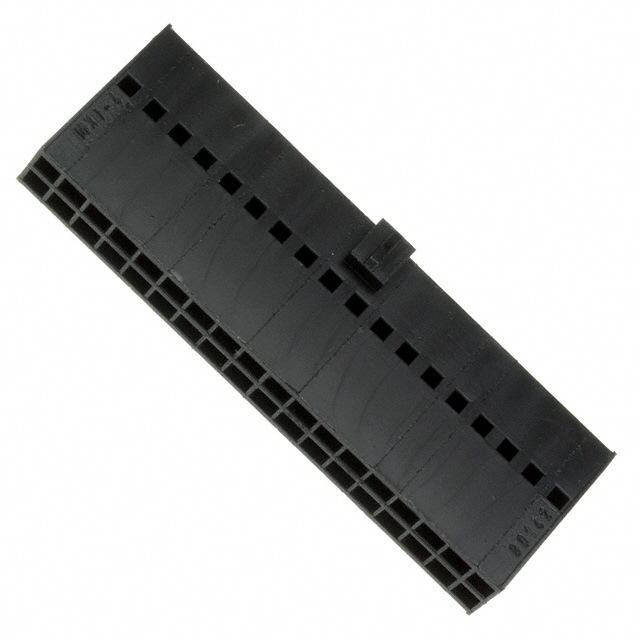

Molex 0901420036	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	36	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm

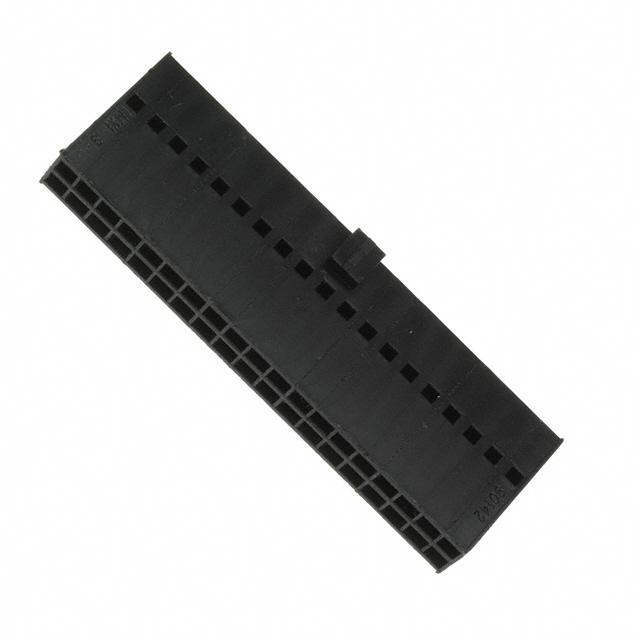

Molex 0901420038	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	38	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm

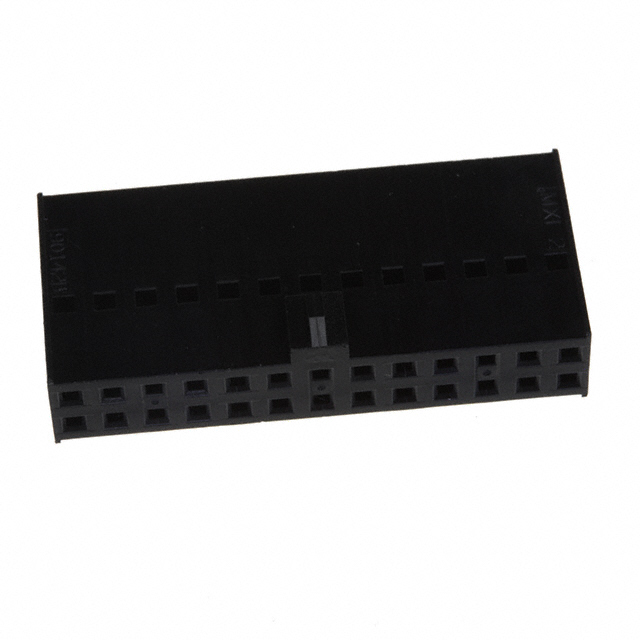

Molex 0901420026	Contacts Not Included	Receptacle	Crimp	2	Locking Ramp	Black	-55 C	105 ░C	Female Socket	26	Free Hanging (In-Line)	2.54 mm	0.1 "	Polyphenylene Oxide (PPO)	0.1 "	2.54 mm
