DCA-20PC Series

Digital Panel Meters 199.9mA 0.1 Ohms Low-Power Blue

Manufacturer: Murata Electronics

Catalog

Digital Panel Meters 199.9mA 0.1 Ohms Low-Power Blue

Catalog

Digital Panel Meters 199.9mA 0.1 Ohms Low-Power Blue

Part	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row [custom]	Measuring Type	Measuring Range [Max]	Measuring Range [Min]	Termination Style	Features	Display Type	Type	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Characters - Height [custom]	Display Characters - Height [custom]	Weight [custom]	Weight [custom]	Measuring Range
Murata Electronics DCA-20PC-6-DC1-RL-C	0 °C	60 °C	0.037 lb	16.78 g	40 VDC	5 V	3.5	Current	19.99 A	0 A	Screw Terminal	Built In Shunts	LED Red Characters	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm
Murata Electronics DCA-20PC-1-DC1-PGL-C	0 °C	60 °C			40 VDC	5 V	3.5	Current			Screw Terminal	Built In Shunts	Green Characters LED	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm	17.24 g	0.038 lb	199.9 µA
Murata Electronics DCA-20PC-5-DC4-BS-C	0 °C	60 °C			36 V	8 V	3.5	Current	1.999 A	0 A	Screw Terminal	Built In Shunts	Blue Characters LED	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm	17.24 g	0.038 lb
Murata Electronics DCA-20PC-3-DC4-RL-C	0 °C	60 °C			36 V	8 V	3.5	Current	19.99 mA	0 A	Screw Terminal	Built In Shunts	LED Red Characters	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm	17.24 g	0.038 lb

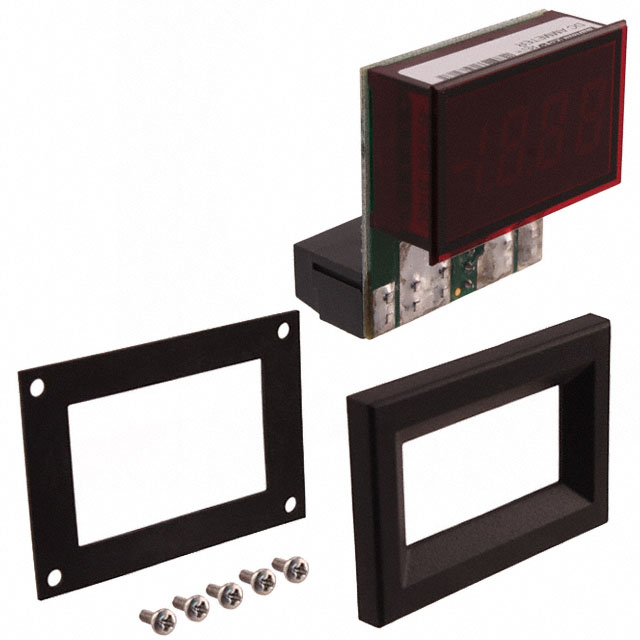

Murata Electronics DCA-20PC-4-DC4-RL-C	0 °C	60 °C	0.037 lb	16.78 g	36 V	8 V	3.5	Current	199.9 mA	0 A	Screw Terminal	Built In Shunts	LED Red Characters	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm
Murata Electronics DCA-20PC-6-DC4-BS-C	0 °C	60 °C			36 V	8 V	3.5	Current	19.99 A	0 A	Screw Terminal	Built In Shunts	Blue Characters LED	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm	17.24 g	0.038 lb
Murata Electronics DCA-20PC-1-DC4-GS-C	0 °C	60 °C			36 V	8 V	3.5	Current			Screw Terminal	Built In Shunts	Green Characters LED	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm	17.24 g	0.038 lb	199.9 µA

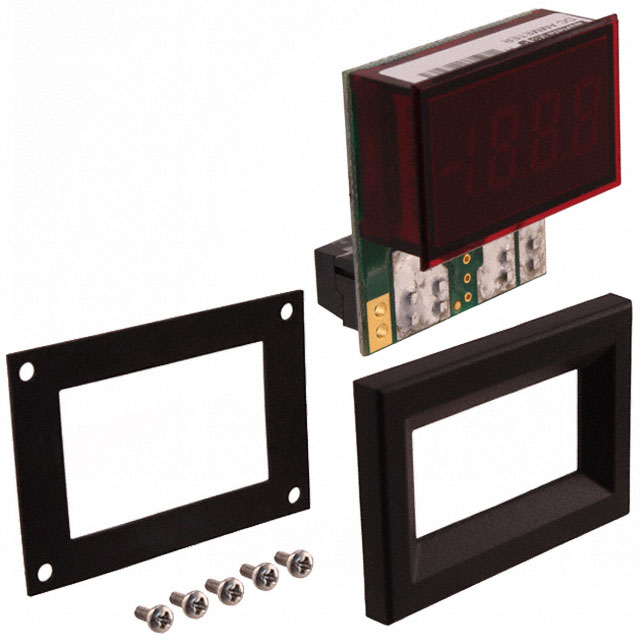

Murata Electronics DCA-20PC-5-DC1-RL-C	0 °C	60 °C	0.037 lb	16.78 g	40 VDC	5 V	3.5	Current	1.999 A	0 A	Screw Terminal	Built In Shunts	LED Red Characters	Ammeter	Panel Mount - Bezel	33.93 mm	21.29 mm	0.37 in	9.4 mm
