TB1-2G Series

Catalog

VAC DPDT (ON)-OFF-(ON), 15/32

Part	Current Rating	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Mounting Type	Illumination	Voltage Rating - AC	Quick Connect Size (0.250")	Termination Style	Circuit	Actuator Type	Actuator Length	Bushing Thread	Electrical Life (Cycles)	Voltage Rating - DC
Switch Components TB1-2G-AC-1	10 A	Mom-Off-Mom	12.2 mm	Circular	Panel Mount	Non-Illuminated	250 V	0.25 in	Quick Connect	DPDT	Standard Round	16.5 mm	15/32-32
Switch Components TB1-2G-DC-1	20 A 21 A	Mom-Off-Mom	12 mm	Circular	Panel Mount	Non-Illuminated	125 V	0.25 in	Quick Connect	DPDT	Standard Round	16.5 mm	15/32-32	6000 Cycles	14 V

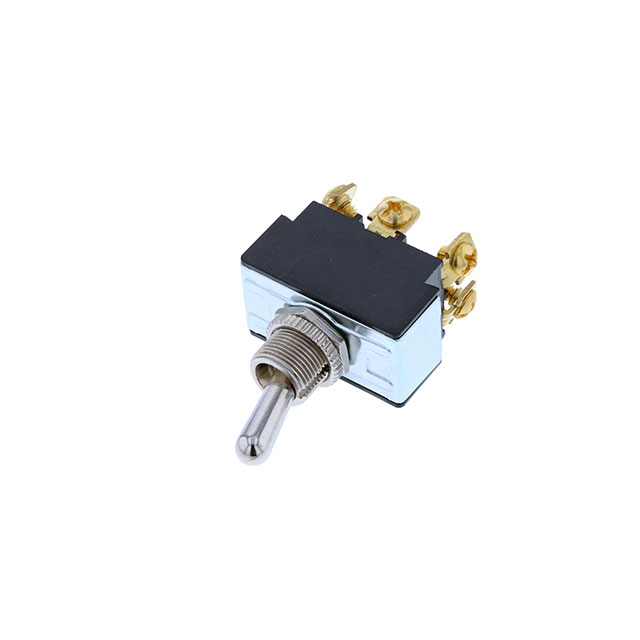

Switch Components TB1-2G-AC-6	10 A	Mom-Off-Mom	12.2 mm	Circular	Panel Mount	Non-Illuminated	250 V		Screw Terminal	DPDT	Standard Round	16.5 mm	15/32-32
Switch Components TB1-2G-DC-6	20 A 21 A	Mom-Off-Mom	12 mm	Circular	Panel Mount	Non-Illuminated	125 V		Screw Terminal	DPDT	Standard Round	16.5 mm	15/32-32	6000 Cycles	14 V
