ACE Series

Catalog

MODULAR POWER SUPPLIES 85-264VAC 120-350DC 300 W

Part	Voltage - Output 1	Voltage - Output 2	Voltage - Output 4	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Efficiency	Approval Agency	Mounting Type	Standard Number	Current - Output 1	Applications	Number of Outputs	Type	Voltage - Output 3	Current - Output 3	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 4 [custom]	Size / Dimension	Voltage - Input [Max]	Voltage - Input [Min]	Features	Power (Watts)	Current - Output 4	Current - Output 5	Current - Output 6

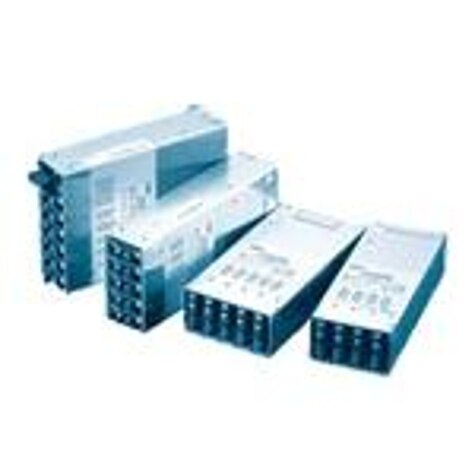

Cosel USA, Inc. AC3-MERR-00	5 V	12 V	24 V	-20 ░C	70 °C	13 A	78 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	10 A	ITE (Commercial) Medical	4	Enclosed	24 V	2.5 A	3000 V	103.1 mm	63.5 mm	254 mm	4.06 "	2.5 in	10 in	2.5 A
Cosel USA, Inc. AC6-IEE2C-00	12 V	12 V		-20 ░C	70 °C	13 A	80 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	13 A	ITE (Commercial) Medical	3	Enclosed	5 V	60 A	3000 V	5 in				2.5 in	10.98 in		63.5 mm 127 mm 278.9 mm
Cosel USA, Inc. AC3-ONMH-00	12 V	5 V		-20 ░C	70 °C	10 A	78 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	5 A	ITE (Commercial) Medical	3	Enclosed	24 V	6.5 A	3000 V	103.1 mm	63.5 mm	254 mm	4.06 "	2.5 in	10 in			264 VAC 350 VDC	85 VAC 120 VDC	Adjustable Output PFC Remote On/Off Universal Input	266 W
Cosel USA, Inc. AC3-OMWM-00	5 V	12 V	5 V	-20 ░C	70 °C	3.2 A	78 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	10 A	ITE (Commercial) Medical	4	Enclosed	-12 V	4.2 A	3000 V	103.1 mm	63.5 mm	254 mm	4.06 "	2.5 in	10 in							10 A
Cosel USA, Inc. AC6-OFF2J-00-EFW	15 V	15 V		-20 ░C	70 °C	10 A	80 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	10 A	ITE (Commercial) Medical	3	Enclosed	34 V		3000 V	5 in				2.5 in	10.98 in		63.5 mm 127 mm 278.9 mm
Cosel USA, Inc. AC9-DDDDDD-00-1B	7.5 V		7.5 V	-20 ░C	70 °C	18 A	80 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	18 A	ITE (Commercial) Medical	6	Enclosed	7.5 V	18 A	3000 V	6.99 in	63.5 mm	254 mm	177.5 mm	2.5 in	10 in							18 A	18 A	18 A
Cosel USA, Inc. AC6-OHHHH-00-F	24 V	24 V	24 V	-20 ░C	70 °C	6.5 A	80 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1		ITE (Commercial) Medical	4	Enclosed	24 V	6.5 A	3000 V	5 in				2.5 in	10.98 in		63.5 mm 127 mm 278.9 mm					6.5 A
Cosel USA, Inc. AC4-PMZHN-00	15 V	5 V	-15 V	-20 ░C	70 °C	10 A	78 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	4 A	ITE (Commercial) Medical	6	Enclosed	15 V	2.5 A	3000 V	5 in	63.5 mm	254 mm	5 in	2.5 in	10 in							3.5 A	6.5 A	5 A
Cosel USA, Inc. AC4-OOW2C-00	12 V	-12 V		-20 ░C	70 °C	3.2 A	78 %	CE CSA cURus TUV UL	Chassis Mount	60601-1 60950-1 62368-1	3.2 A	ITE (Commercial) Medical	3	Enclosed	5 V	60 A	3000 V	5 in	63.5 mm	254 mm	5 in	2.5 in	10 in
