079109 Series

Manufacturer: Molex

Catalog

Catalog

CONN RCPT 44POS 0.079 GOLD SMD

...

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Fastening Type	Contact Shape	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Features	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Applications	Contact Material	Termination	Style	Number of Positions	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions
Molex 0791091221	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin	Board Guide	Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	44	Surface Mount	All	74.8 Áin	1.9 Ám
Molex 0791091054	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	30 Áin	0.76 Ám	Female Socket	Tin		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	10	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0
Molex 0791091021	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	44	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0
Molex 0791091056	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	30 Áin	0.76 Ám	Female Socket	Tin		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	14	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0

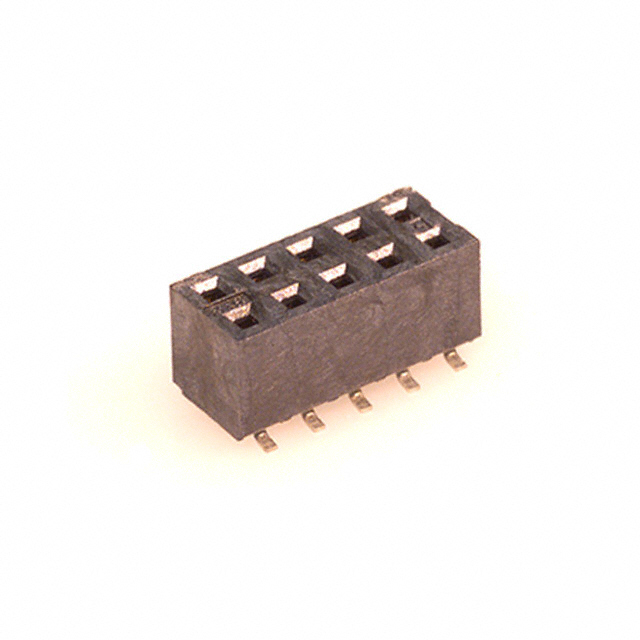

Molex 0791090004	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin-Lead		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	10	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0
Molex 0791098410	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin	Pick and Place	Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	22 positions	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0

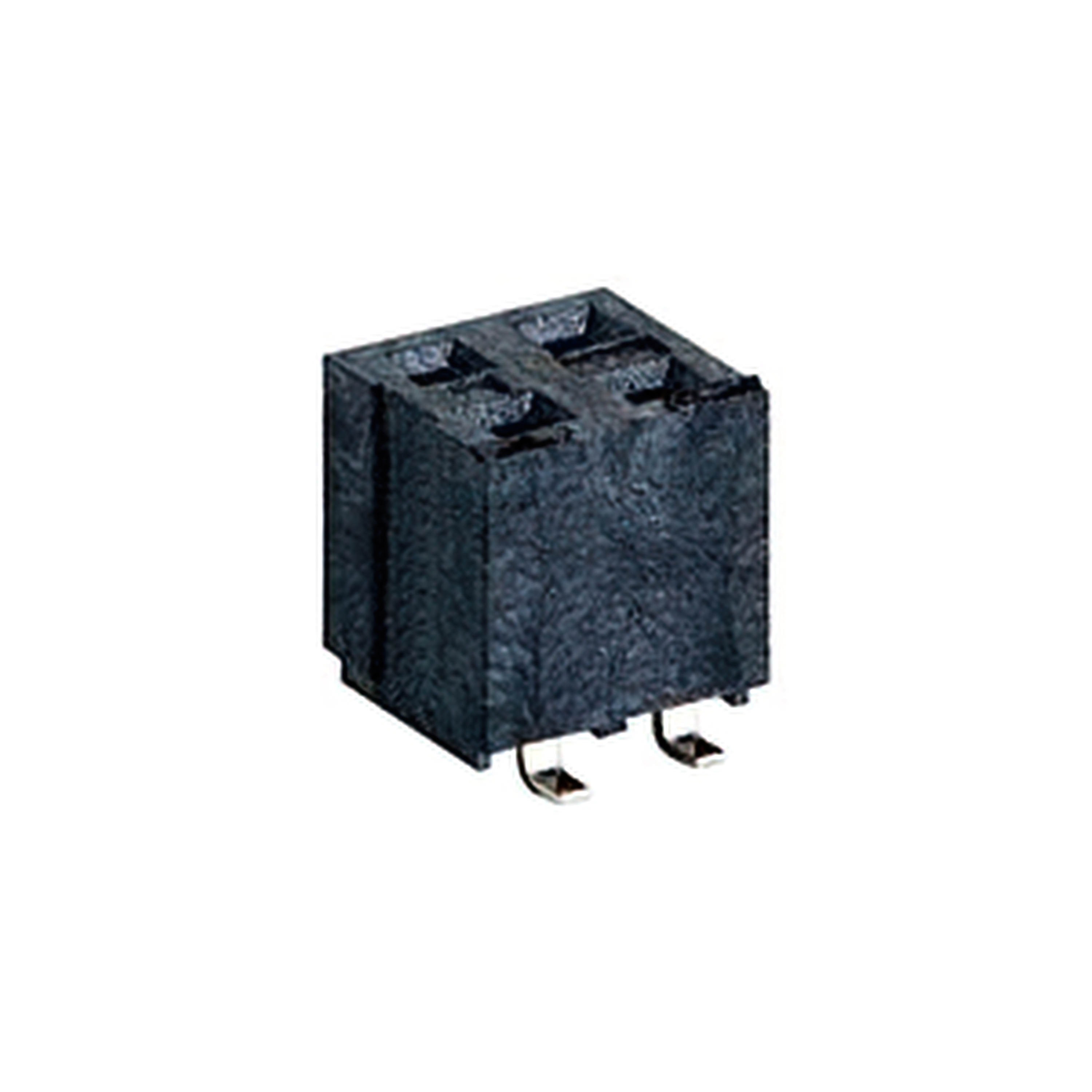

Molex 0791091022	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	46	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0
Molex 0791098607	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin	Board Guide	Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable		Surface Mount	All	74.8 Áin	1.9 Ám		16

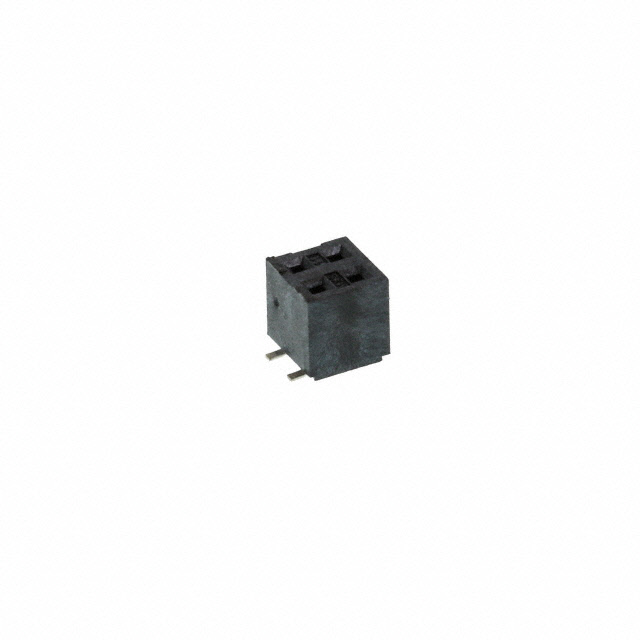

Molex 0791091001	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin		Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	4	Surface Mount	All	74.8 Áin	1.9 Ám	UL94 V-0

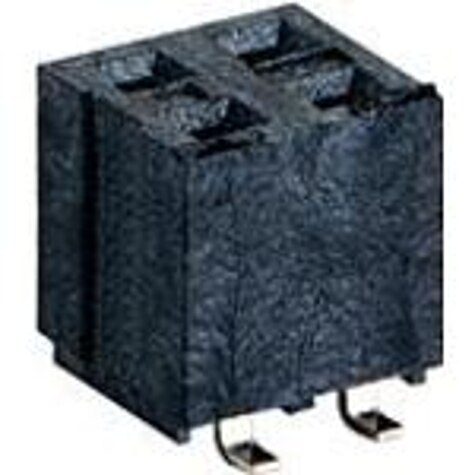

Molex 0791098612	0.079 in	2 mm	2	Push-Pull	Square	Gold	0.079 in	2 mm	4.45 mm	0.175 in	Receptacle	15 µin	0.38 µm	Female Socket	Tin	Board Guide	Black	-55 °C	125 °C	125 VDC	Automotive General Purpose Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	26	Surface Mount	All	74.8 Áin	1.9 Ám
