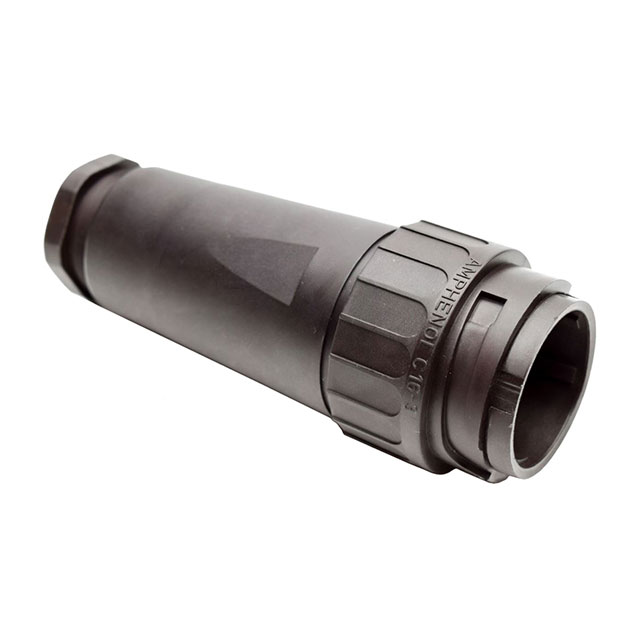

C01610I019 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN PLUG HSNG MALE 20POS INLINE
| Part | Note | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Size - Insert [custom] | Ingress Protection | Mounting Type | Contact Size | Number of Positions | Shell Material | Fastening Type | Contact Shape | Includes | Orientation | Contact Type | Material Flammability Rating | Connector Type | Type | Housing Color | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Contacts Not Included | 125 °C | -40 C | Backshell Cable Clamp Coupling Nut | 2 | IP65 - Dust Tight Water Resistant | Free Hanging (In-Line) | 1.5 mm | 20 | Nylon 6/6 Polyamide (PA66) | Bayonet Lock | Circular | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | N (Normal) | Crimp | UL94 V-0 | Plug Housing | For Male Pins | Black | Unshielded |
