089401 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 13POS 2MM

Part	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Type	Style	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Connector Type	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Color	Insulation Material	Number of Positions	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type
Molex 0894011310	0.118 in	3 mm	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	1.27 µm	50 µin	Kinked Pin Solder	Brass	Header	1	0.199 in	5.05 mm	Through Hole Right Angle	UL94 V-0	1.27 µm	50 µin	Square	Natural	Polyamide (PA66) Nylon 6/6	13	Tin	0.079 in	2 mm	Detent Lock

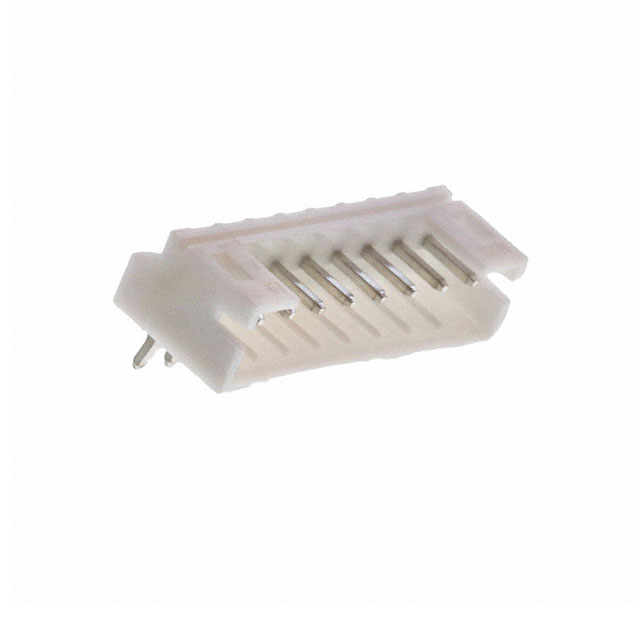

Molex 0894010810	0.118 in	3 mm	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	1.27 µm	50 µin	Kinked Pin Solder	Brass	Header	1	0.199 in	5.05 mm	Through Hole Right Angle	UL94 V-0	1.27 µm	50 µin	Square	Natural	Polyamide (PA66) Nylon 6/6	8	Tin	0.079 in	2 mm	Detent Lock
Molex 0894010710	0.118 in	3 mm	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	1.27 µm	50 µin	Kinked Pin Solder	Brass	Header	1	0.199 in	5.05 mm	Through Hole Right Angle	UL94 V-0	1.27 µm	50 µin	Square	Natural	Polyamide (PA66) Nylon 6/6	7	Tin	0.079 in	2 mm	Detent Lock
Molex 0894010410	0.118 in	3 mm	All	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	1.27 µm	50 µin	Kinked Pin Solder	Brass	Header	1	0.199 in	5.05 mm	Through Hole Right Angle	UL94 V-0	1.27 µm	50 µin	Square	Natural	Polyamide (PA66) Nylon 6/6	4	Tin	0.079 in	2 mm	Detent Lock
