QS20 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 480W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Power (Watts)	Efficiency	Voltage - Isolation	Applications	Voltage - Output 1	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Number of Outputs	Features	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Voltage - Output 1 [custom]
PULS, LP QS20.244	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2	480 W	94.5 %	500 V	Hazardous Locations ITE (Commercial)	24 V	AC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS CSA DNV GL EAC IEC UL	1	Adjustable Output Load Sharing	276 VAC	85 VAC	20 A

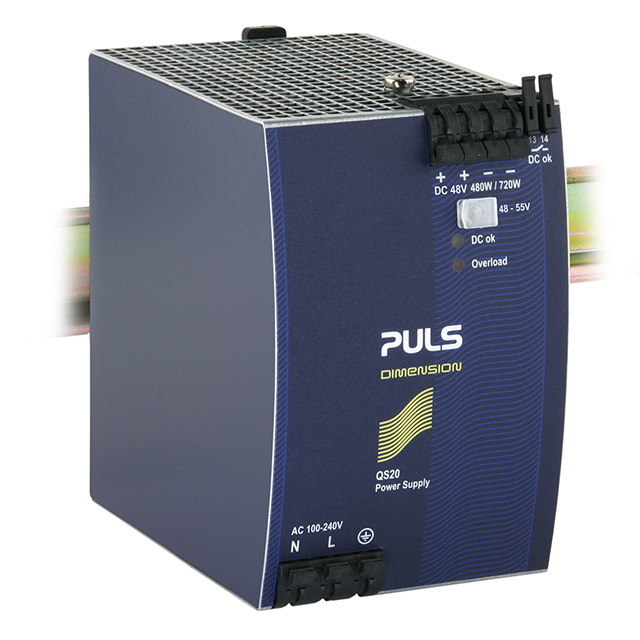

PULS, LP QS20.481	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2	480 W	94.3 %	500 V	Hazardous Locations ITE (Commercial)	48 V	AC or DC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS CSA DNV GL EAC IEC UL	1	Adjustable Output Load Sharing PFC	276 VAC	85 VAC	10 A	187 V	88 V

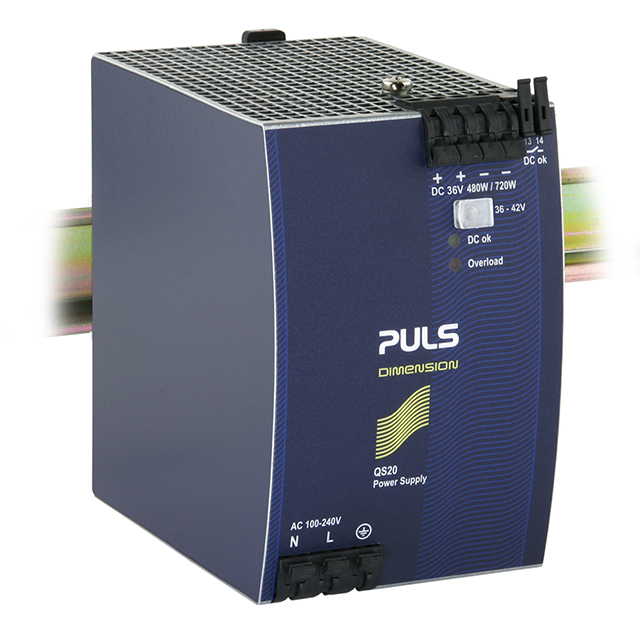

PULS, LP QS20.361	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2	480 W	94 %	500 V	Hazardous Locations ITE (Commercial)		AC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS CSA DNV GL EAC IEC UL	1	Adjustable Output Load Sharing PFC	276 VAC	85 VAC	13.3 A			36 V

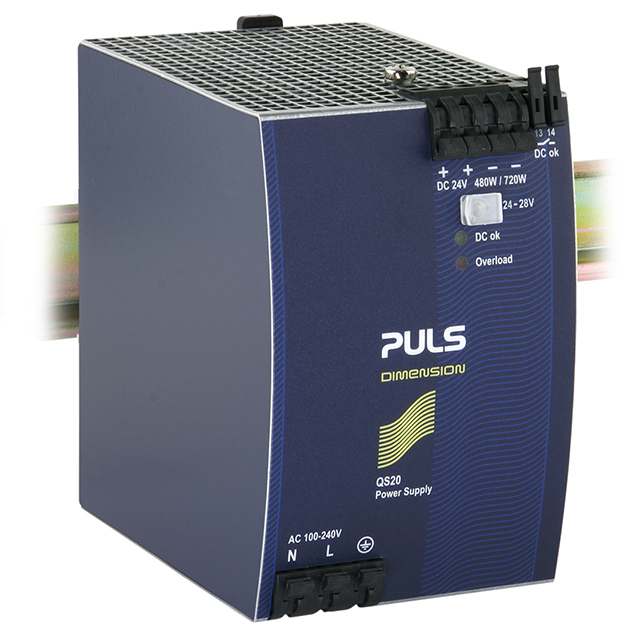

PULS, LP QS20.241	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2 F47	480 W	93.9 %	500 V	ITE (Commercial)	24 V	AC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS CSA DNV GL EAC IEC SEMI UL	1	Adjustable Output Load Sharing PFC	276 VAC	85 VAC	20 A

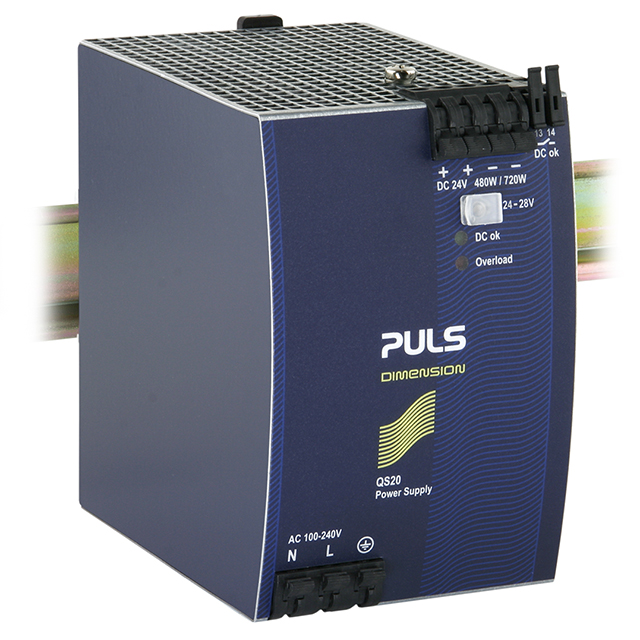

PULS, LP QS20.241-A1	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2 F47	480 W	93.9 %	500 V	Hazardous Locations ITE (Commercial)	24 V	AC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS ATEX CSA DNV GL EAC IEC IECEx SEMI UL	1	Adjustable Output Load Sharing PFC	276 VAC	85 VAC	20 A

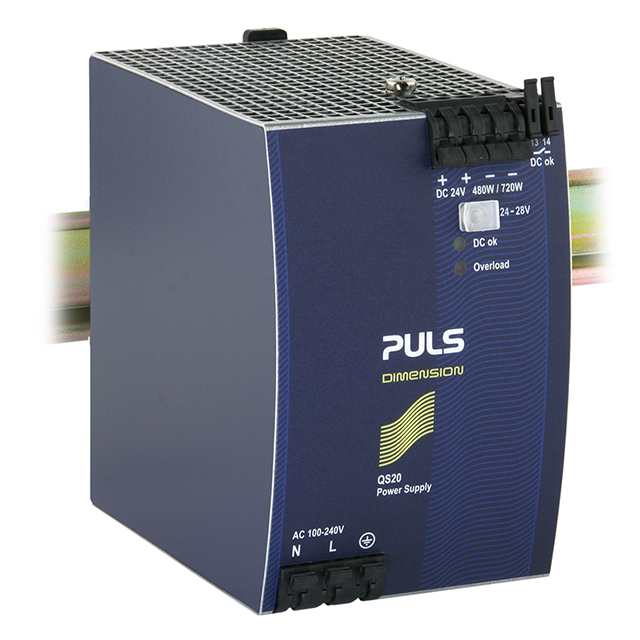

PULS, LP QS20.241-C1	70 °C	-10 °C	508 60950-1 61010-2-201 Class I Div 2 F47	480 W	93.9 %	500 V	ITE (Commercial)	24 V	AC	5 "	82 mm	127 mm	3.23 in	124 mm	4.88 in	ABS CSA DNV GL EAC IEC SEMI UL	1	Adjustable Output Conformal Coating Load Sharing PFC	276 VAC	85 VAC	20 A
