BPH-0.5 Series

Catalog

AC/DC CONVERTER 8V 1/2W

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Mounting Type	Applications	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Package / Case	Approval Agency	Efficiency	Type	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Output 1	Current - Output (Max) Options	Power (Watts)	Current - Output (Max)

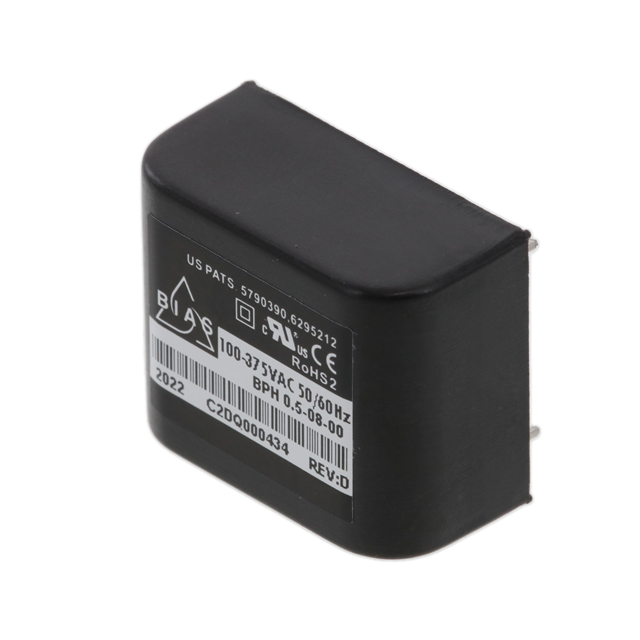

Cita Technologies, LLC. BPH-0.5-08-00	70 °C	-30 °C	1	Through Hole	ITE (Commercial)	0.55 in	0.92 in	1.1 in	7-DIP Module	CB cURus	70 %	Enclosed	375 V	100 VAC	8 V

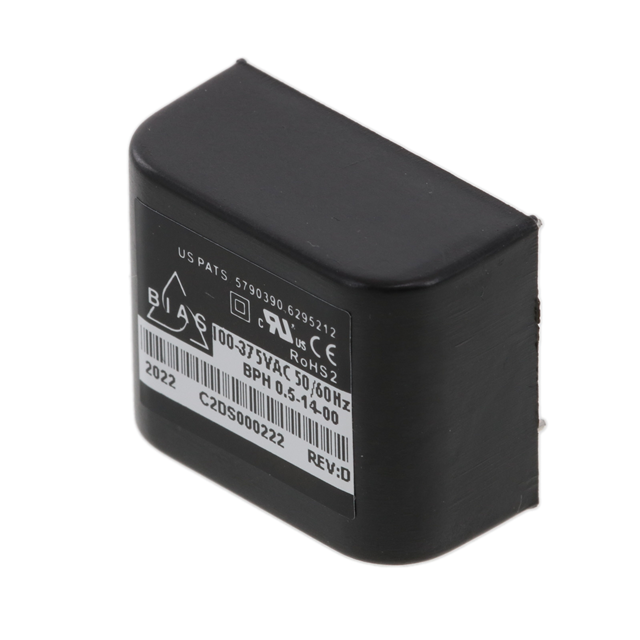

Cita Technologies, LLC. BPH-0.5-14-00	70 °C	-30 °C	1	Through Hole	ITE (Commercial)	0.55 in	0.92 in	1.1 in	7-DIP Module	CB cURus	70 %	Enclosed	375 V	100 VAC	14 V

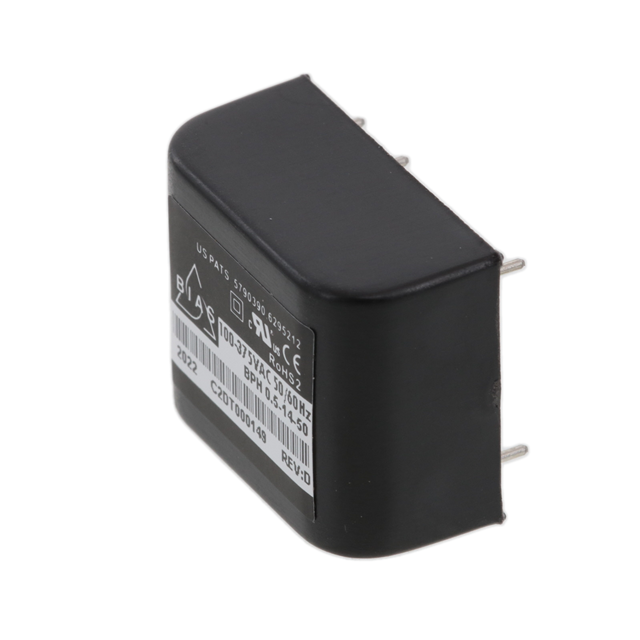

Cita Technologies, LLC. BPH-0.5-14-50	70 °C	-30 °C	2	Through Hole	ITE (Commercial)	0.55 in	0.92 in	1.1 in	7-DIP Module	CB cURus	70 %	Enclosed	375 V	100 VAC	14 V	28mA 36mA	572 mW

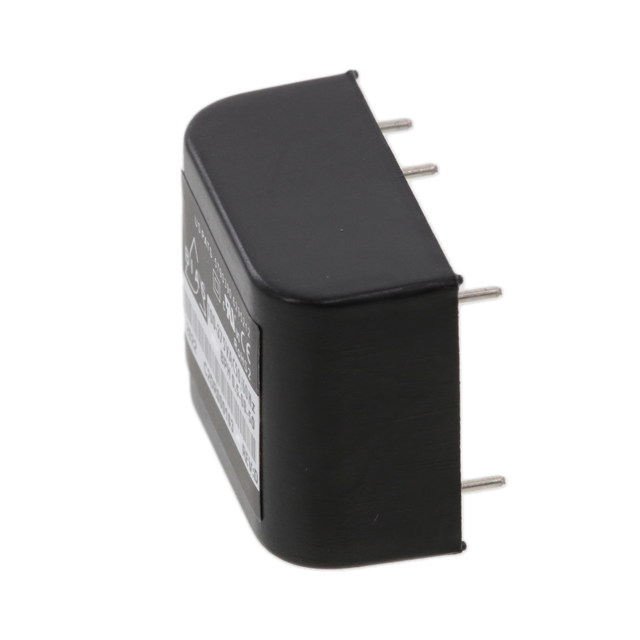

Cita Technologies, LLC. BPH-0.5-08-50	70 °C	-30 °C	2	Through Hole	ITE (Commercial)	0.55 in	0.92 in	1.1 in	7-DIP Module	CB cURus	70 %	Enclosed	375 V	100 VAC	8 V		819 mW	63 mA
