9WF0624 Series

Catalog

FAN AXIAL 60X20MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Bearing Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Approval Agency	Power (Watts)	Features	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Termination	Weight [custom]	Weight [custom]	Width [y]	Voltage - Rated	Weight	Weight

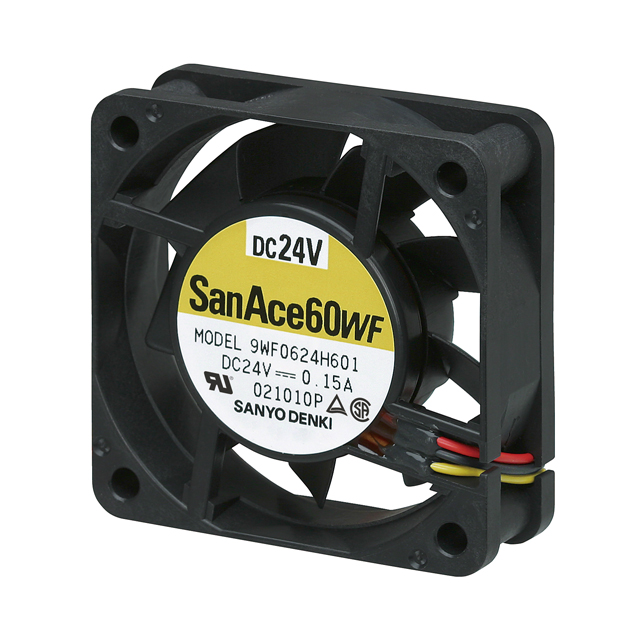

Sanyo Denki America Inc. 9WF0624H601	12	27.6 VDC	40000 Hrs	Plastic	150 mA	Plastic	Ball	Oil Resistant	-20 ░C	70 °C	42 dB	CSA TUV UL	3.6 W	Speed Sensor (Tach)	6600 RPM	24.3 CFM	0.68 m³/min	0.45 in H2O	112.1 Pa	60 mm	60 mm	Tubeaxial	3 Wire Leads	0.177 lb	80.29 g	20 mm	24 VDC
Sanyo Denki America Inc. 9WF0624H6D01	12	27.6 VDC	40000 Hrs	Plastic	150 mA	Plastic	Ball	Oil Resistant	-20 ░C	70 °C	42 dB	CSA TUV UL	3.6 W	Locked Rotor Sensor	6600 RPM	24.3 CFM	0.68 m³/min	0.45 in H2O	112.1 Pa	60 mm	60 mm	Tubeaxial	3 Wire Leads	0.177 lb	80.29 g	20 mm	24 VDC

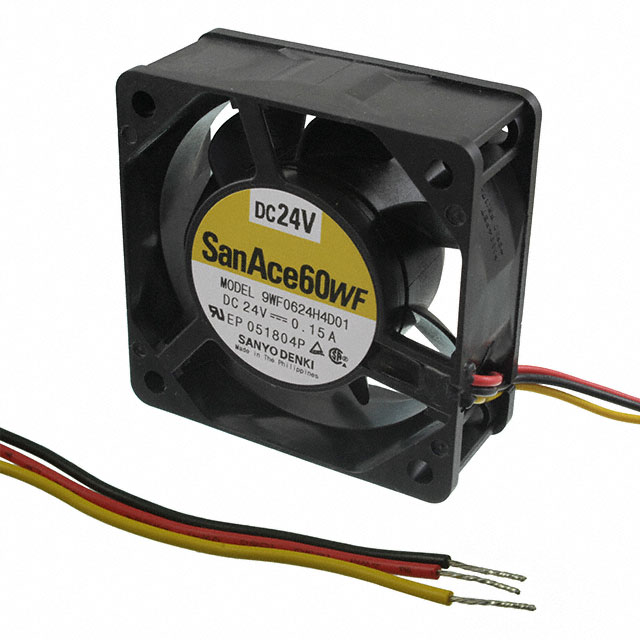

Sanyo Denki America Inc. 9WF0624H4D01			40000 Hrs	Plastic	150 mA	Plastic	Ball	Oil Resistant	-20 ░C	70 °C	41 dB	CSA TUV UL	3.6 W	Locked Rotor Sensor	6500 RPM	23.6 CFM	0.661 m³/min	0.38 in H2O	94.6 Pa	60 mm	60 mm	Tubeaxial	3 Wire Leads			25 mm	24 VDC	110.22 g	0.243 lb

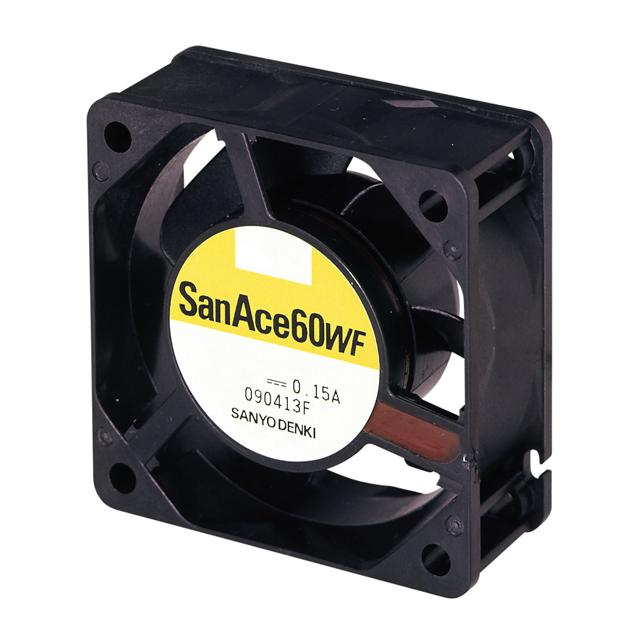

Sanyo Denki America Inc. 9WF0624H401			40000 Hrs	Plastic	150 mA	Plastic	Ball	Oil Resistant	-20 ░C	70 °C	41 dB	CSA TUV UL	3.6 W	Speed Sensor (Tach)	6500 RPM	23.6 CFM	0.661 m³/min	0.38 in H2O	94.6 Pa	60 mm	60 mm	Tubeaxial	3 Wire Leads			25 mm	24 VDC	110.22 g	0.243 lb
Sanyo Denki America Inc. 9WF0624H7D01			40000 Hrs	Plastic	120 mA	Plastic	Ball	Oil Resistant	-20 ░C	70 °C	44 dB(A)	CSA TUV UL	2.88 W	Locked Rotor Sensor	6800 RPM	18.3 CFM	0.512 mł/min	0.38 in H2O	94.6 Pa	60 mm	60 mm	Tubeaxial	3 Wire Leads			15 mm	24 VDC	62.14 g	0.137 lb
