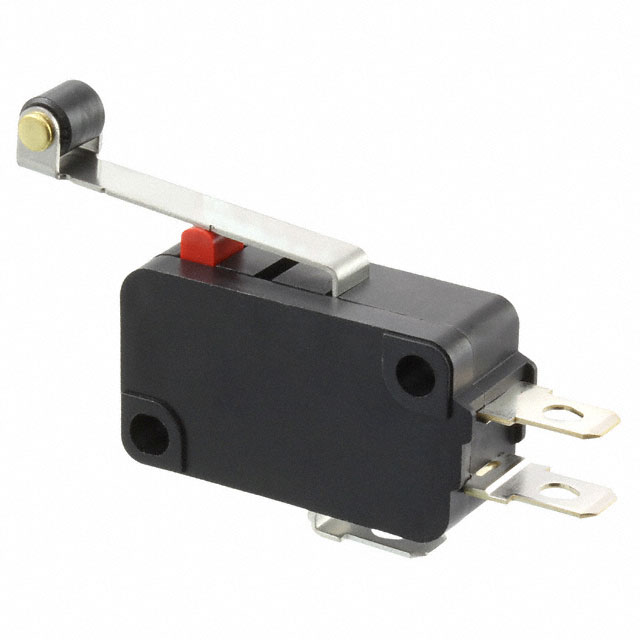

VX-016 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Voltage Rating - DC | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] | Termination Style | Termination Style | Termination Style | Operating Position | Operating Position | Electrical Life | Pretravel | Pretravel | Circuit | Actuator Type | Switch Function | Mechanical Life | Ingress Protection | Operating Force | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Chassis Mount | -25 °C | 80 °C | 125 V | 30 V | 0.031 in | 0.8 mm | 0.062 " | 1.6 mm | 4.7 mm | 0.187 in | Solder Quick Connect | 20.7 mm | 0.815 in | 1000000 Cycles | 4 mm | 0.157 in | SPDT | Lever Roller | On-Mom | 10000000 Cycles | IP40 | 30 gf | 100 mA |
