LB25CKW Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Type	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Actuator Marking	Termination Style	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC
NKK Switches LB25CKW01-1C-C	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Illuminated Standard	DPDT	Button Round	22 mm	1.9 VDC	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Red	LED Red	50 °C	-25 °C	125 V

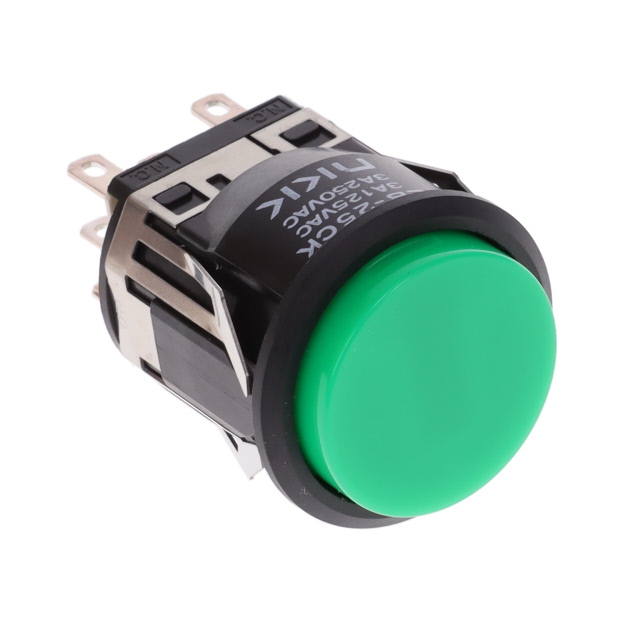

NKK Switches LB25CKW01-F	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Button Round	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Green		70 °C	-25 °C	125 V
NKK Switches LB25CKW01-E	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Button Round	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Yellow		70 °C	-25 °C	125 V
NKK Switches LB25CKW01-5D24-JD	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Illuminated Standard	DPDT	Button Round	22 mm	24 V	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Clear	Amber LED	50 °C	-25 °C	125 V

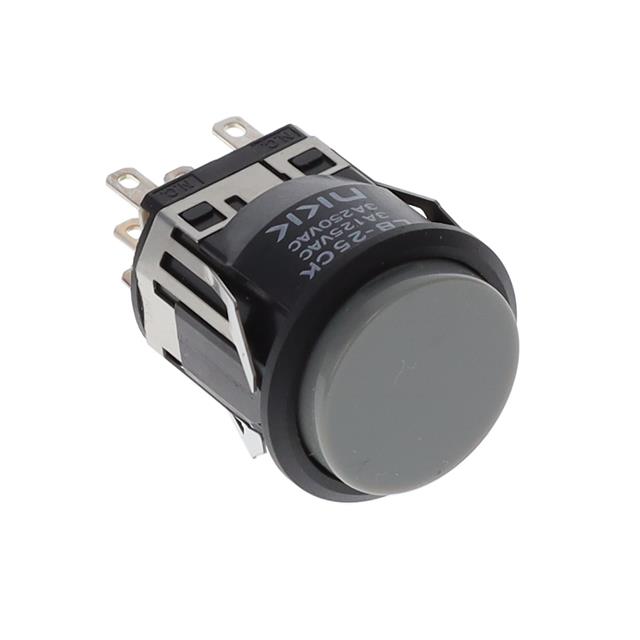

NKK Switches LB25CKW01-H	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Button Round	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In			70 °C	-25 °C	125 V
NKK Switches LB25CKW01-BJ	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Button Round	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	White		70 °C	-25 °C	125 V
NKK Switches LB25CKW01-C	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Button Round	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Red		70 °C	-25 °C	125 V
NKK Switches LB25CKW01/UC	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Standard	DPDT	Plunger for Cap	22 mm		No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In			70 °C	-25 °C	125 V
NKK Switches LB25CKW01/C-01-JC	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Illuminated Standard	DPDT	Button Round	22 mm	110 VAC	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Clear	Neon Red	50 °C	-25 °C	125 V
NKK Switches LB25CKW01-1C-A	1000000 Cycles	100000 Cycles	30 V	3 A	On-Mom	Illuminated Standard	DPDT	Button Round	22 mm	1.9 VDC	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	Black	LED Red	50 °C	-25 °C	125 V
