ACUROS-1280-USB3-001 Series

A broad portfolio of industry leading image sensors that satisfy requirements of every possible end application from wearables and consumer electronics to demanding industrial and automotive applications. 2.1 MP Acuros CQD eSWIR camera for laser beam profiling

Manufacturer: ON Semiconductor

Catalog

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Pixel Size [y]	Pixel Size [x]	Active Pixel Array [x]	Active Pixel Array [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Supplier Device Package	Qualification	Grade	Supplier Device Package [x]	Supplier Device Package [y]
ON Semiconductor AR0130CSSM00SPCA0-DRBR	1.95 V	1.7 V	3.75 µm	3.75 µm	1280	960	70 °C	-30 ░C	48-LCC	CMOS
ON Semiconductor AR0130CSSC00SPCA0-DRBR1	1.95 V 3.1 V	1.7 V 2.5 V	3.75 µm	3.75 µm	1280	960	70 °C	-30 ░C	48-LCC	CMOS	48-iLCC
ON Semiconductor AR0132AT6R00XPEA0-DPBR1	2.8 V	1.8 V	3.75 µm	3.75 µm	1280	960	105 ░C	-40 °C	63-LBGA	CMOS	63-iBGA (9x9)
ON Semiconductor AR0132AT6R00XPEA0-DRBR	1.95 V	1.7 V	3.75 µm	3.75 µm	1280	960	105 ░C	-40 °C	63-LBGA	CMOS with Processor	63-iBGA (9x9)	AEC-Q100	Automotive
ON Semiconductor AR0130CSSM00SPCA0-DRBR1	1.95 V 3.1 V	1.7 V 2.5 V	3.75 µm	3.75 µm	1280	960	70 °C	-30 ░C	48-LCC	CMOS	48-iLCC (10x10)

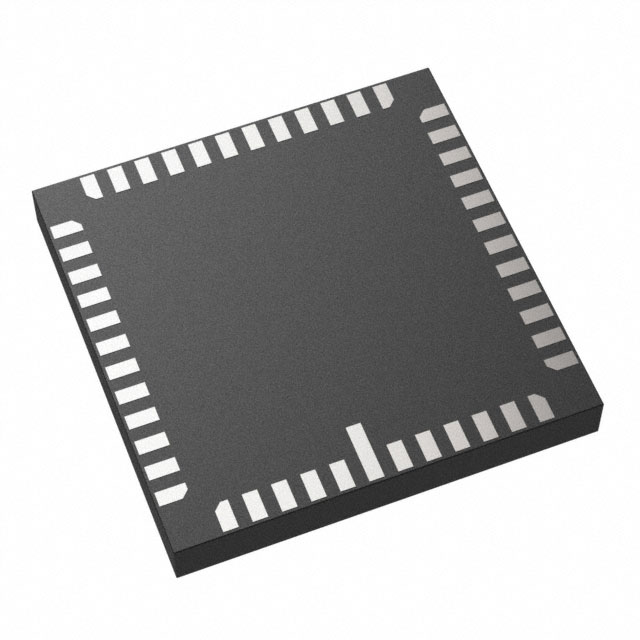

ON Semiconductor AR0130CSSM00SPCA0-DPBR	1.95 V 3.1 V	1.7 V 2.5 V	3.75 µm	3.75 µm	1280	960	70 °C	-30 ░C	48-LCC	CMOS	48-iLCC (10x10) 48-PLCC	AEC-Q100	Automotive	11.43	11.43
ON Semiconductor AR0132AT6G00XPEA0-DRBR	2.8 V	1.8 V	3.75 µm	3.75 µm	1280	960	105 ░C	-40 °C		CMOS
ON Semiconductor AR0132AT6M00XPEA0-TPBR	1.95 V	1.7 V	3.75 µm	3.75 µm	1280	960	105 ░C	-40 °C	63-LBGA	CMOS with Processor	63-iBGA (9x9)	AEC-Q100	Automotive
ON Semiconductor AR0132AT6G00XPEA0-AA-DRBR	2.8 V	1.8 V	3.75 µm	3.75 µm	1280	960	105 ░C	-40 °C		CMOS

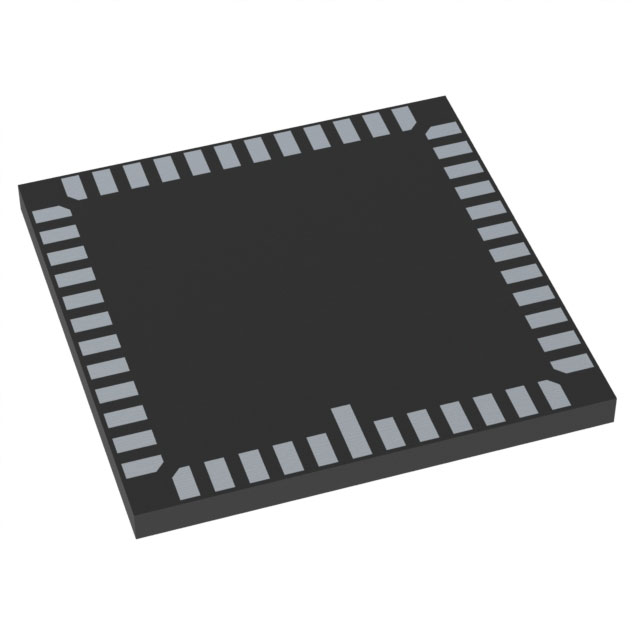

ON Semiconductor AR0130CSSC00SPBA0-DP1	1.95 V 3.1 V	1.7 V 2.5 V	3.75 µm	3.75 µm	1280	960	70 °C	-30 ░C	48-LCC	CMOS	48-PLCC			11.43	11.43

Catalog

Key Features

• Built-in depth processing (AF0130)

• High performance 1.2MP Global shutter BSI pixel

• Unique integration and readout structure along with Global shutter and on-chip storage

• Long depth distance sensing & high ambient light rejection

• Standard development environment

Description

The AR0132AT is a 1/3-inch CMOS digital image sensor with an active-pixel array of 1280H x 960V. It captures images in either linear or high dynamic range modes, with a rolling-shutter readout. It includes sophisticated camera functions such as auto exposure control, windowing, and both video and single frame modes. It is designed for both low light and high dynamic range scene performance. It is programmable through a simple two-wire serial interface. The AR0132AT produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including surveillance and HD video. This sensor is compatible with ON Semiconductor's automotive image co-processors which provides megapixel HDR image processing.
