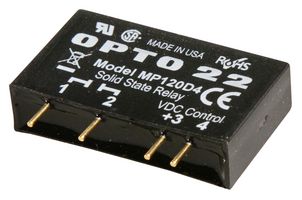

MP120D Series
Manufacturer: OPTO 22
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SOLID STATE RELAY, 4 A, 140 VAC, PCB, THROUGH HOLE, ZERO CROSSING
| Part | Termination Style | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum | Package / Case | Package Name | Mounting Type | Voltage - Load (Max) | Voltage - Load (Min) | Output Type | Load Current | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input | Circuit | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OPTO 22 | PC Pin Screw Terminal | 3 VDC | 32 VDC | 4-SIP | 4-SIP | Chassis Mount Through Hole | 140 V | 12 V | AC Zero Cross | 4 A | 100 °C | -40 °C | 3 V | SPST-NO (1 Form A) | CE CSA UR |
