M300-MV3 Series
Manufacturer: Harwin Inc.
Beta
⌘K

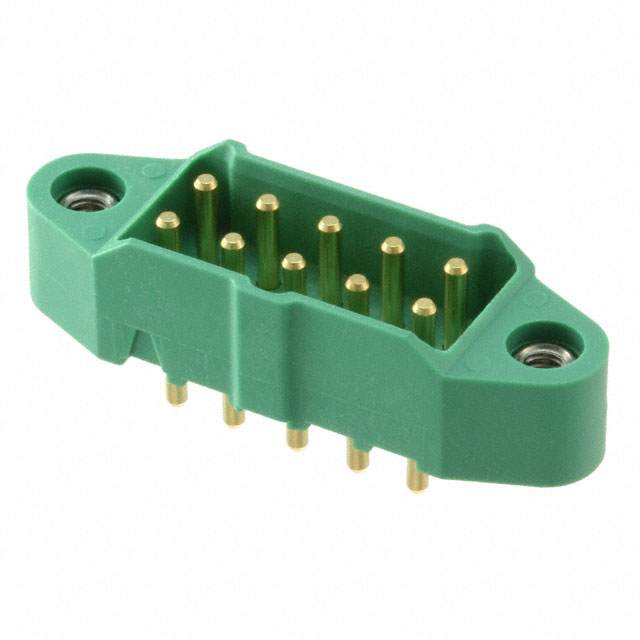

WTB CONNECTOR, HEADER, 10POS, 2ROWS, 3MM
| Part | Mounting Type | Number of Positions Loaded | Shrouding | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Number of Positions | Style | Current Rating (Amps) | Voltage Rating | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Insulation Height | Insulation Height | Fastening Type | Mated Stacking Heights | Connector Type | Insulation Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Material | Termination | Features | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Through Hole | All | Shrouded - 4 Wall | 2 | 0.118 in | 3 mm | Brass | 10 | Board to Board Cable | 10 A | 600 VAC | Gold | 0.126 " | 3.2 mm | Circular | 0.276 in | 7 mm | Threaded | 8.9 mm | Header | Green | Male Pin Power | -65 ░C | 175 °C | UL94 V-0 | 3 mm | 0.118 in | Glass Filled Nylon 4/6 Polyamide (PA46) | Solder | Mating Flange | 29.5 µin | 0.75 µm |
