86102CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

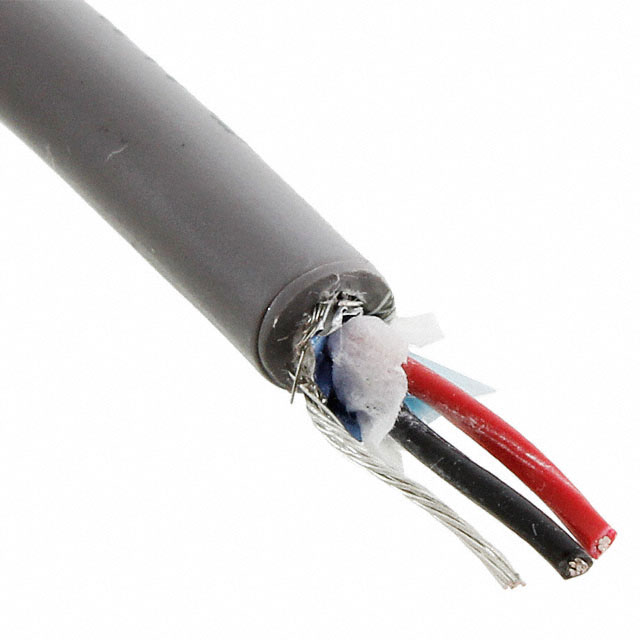

CABLE 2COND 26AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Length | Length | Ratings | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Voltage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Strand [x] | Conductor Strand [x] | Jacket Color | Jacket (Insulation) Material | Number of Conductors | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | 152.4 m | 500 ft | ISO 10993 UL Style 2661 | Multi-Conductor | 0.182 in | 4.62 mm | 26 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 34 AWG | 7 | Slate | Poly-Vinyl Chloride (PVC) | 2 | Biological Compatibility Drain Wire | ||
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | ISO 10993 UL Style 2661 | Multi-Conductor | 0.182 in | 4.62 mm | 26 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 34 AWG | 7 | Slate | Poly-Vinyl Chloride (PVC) | 2 | Biological Compatibility Drain Wire | ||||
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | 304.8 m | 1000 ft | ISO 10993 UL Style 2661 | Multi-Conductor | 0.182 in | 4.62 mm | 26 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 34 AWG | 7 | Slate | Poly-Vinyl Chloride (PVC) | 2 | Biological Compatibility Drain Wire | ||
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | ISO 10993 UL Style 2661 | Multi-Conductor | 0.182 in | 4.62 mm | 26 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 34 AWG | 7 | Slate | Poly-Vinyl Chloride (PVC) | 2 | Biological Compatibility Drain Wire | 100 ft | 30.5 m |
