DML-1 Series

Manufacturer: Adam Tech

Catalog

HEADERS & WIRE HOUSINGS CONN HEADER R/A 4POS 3MM

Part	Contact Length - Post	Contact Length - Post	Contact Type	Voltage Rating	Termination	Features	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Contact Material	Current Rating (Amps)	Mounting Type	Contact Shape	Shrouding	Connector Type	Number of Rows	Insulation Material	Insulation Color	Style	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)
Adam Tech DML-1-04-A-H-T-A-BL	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in	85 °C	-25 °C	Locking Ramp	All	Tin	0.152 in	3.85 mm	4	Brass	5 A	Right Angle Through Hole	Square	Shrouded - 4 Wall	Header	1	Nylon 6T Polyamide (PA6T)	Black	Board to Cable/Wire

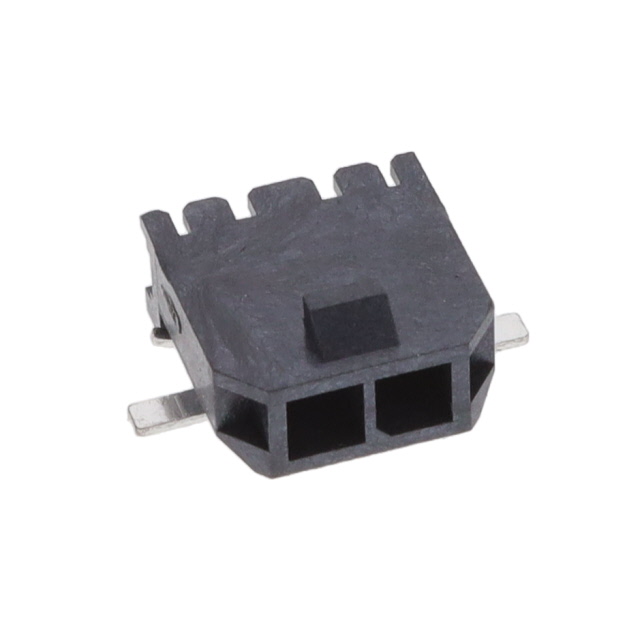

Adam Tech DML-1-02-A-H-T-A-TSMT-T/R			Male Pin	250 VAC	Solder	Solder Retention	UL94 V-0	3 mm	0.118 in	85 °C	-25 °C	Locking Ramp	All	Tin			2	Brass	5 A	Surface Mount	Square	Shrouded - 4 Wall	Header	1	Nylon 6T Polyamide (PA6T)	Black	Board to Cable/Wire	4.37 mm	0.172 in

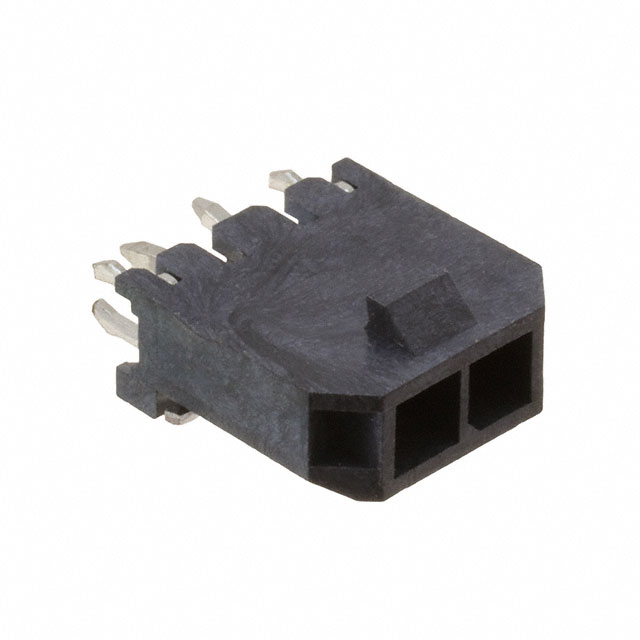

Adam Tech DML-1-02-A-V-T-A-SBL	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in			Locking Ramp	All	Tin			2	Brass		Through Hole	Square	Shrouded - 4 Wall	Header	1	Thermoplastic	Black	Board to Cable/Wire	9.91 mm	0.39 in	Varies by Wire Gauge
Adam Tech DML-1-03-A-H-T-A-TSMT-T/R			Male Pin	250 VAC	Solder	Solder Retention	UL94 V-0	3 mm	0.118 in	85 °C	-25 °C	Locking Ramp	All	Tin				Brass	5 A	Surface Mount	Square	Shrouded - 4 Wall	Header	1	Nylon 6T Polyamide (PA6T)	Black	Board to Cable/Wire	4.37 mm	0.172 in

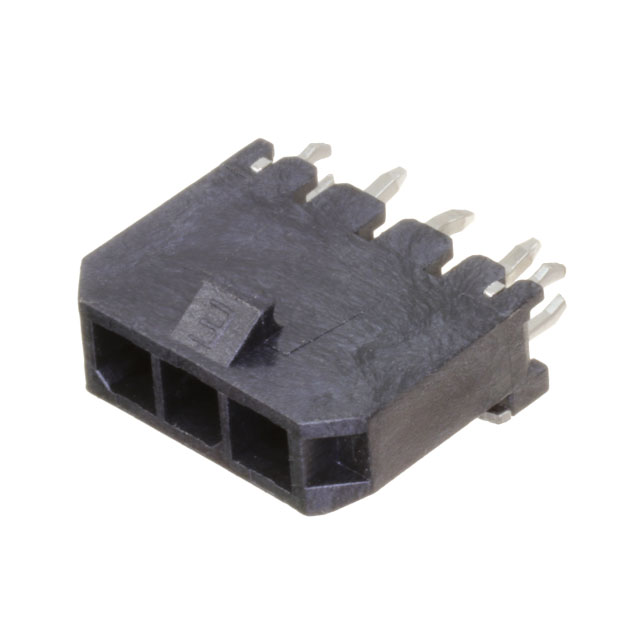

Adam Tech DML-1-03-A-V-T-A-SBL	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in			Locking Ramp	All	Tin				Brass		Through Hole	Square	Shrouded - 4 Wall	Header	1	Thermoplastic	Black	Board to Cable/Wire	9.91 mm	0.39 in	Varies by Wire Gauge

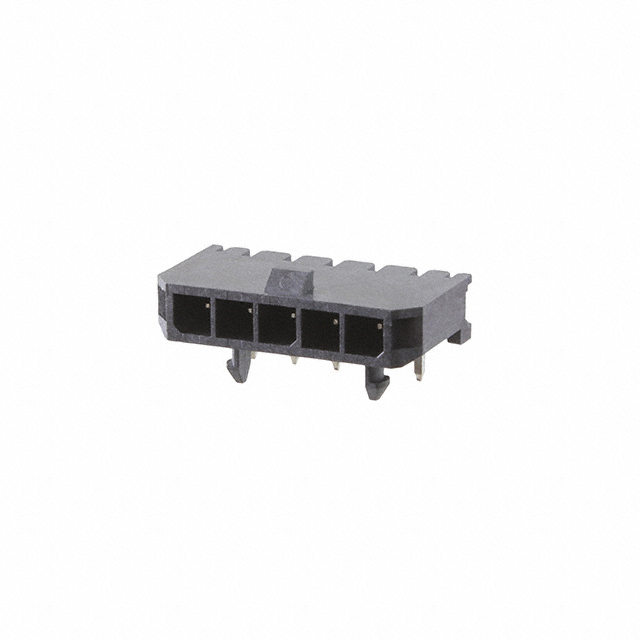

Adam Tech DML-1-05-A-H-T-A	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in			Locking Ramp	All	Tin			5	Brass	5 A	Right Angle Through Hole	Square	Shrouded - 4 Wall	Header	1	Thermoplastic	Black	Board to Cable/Wire	4.37 mm	0.172 in

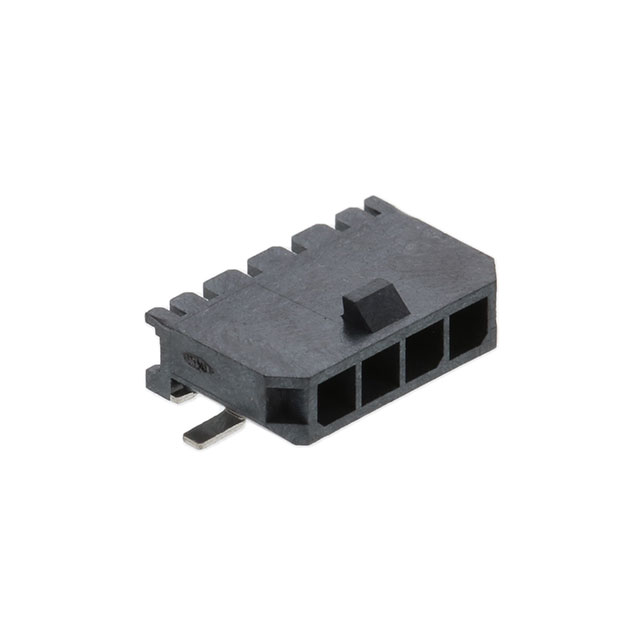

Adam Tech DML-1-04-A-H-T-A-TSMT-T/R			Male Pin	250 VAC	Solder	Solder Retention	UL94 V-0	3 mm	0.118 in	85 °C	-25 °C	Locking Ramp	All	Tin			4	Brass	5 A	Surface Mount	Square	Shrouded - 4 Wall	Header	1	Nylon 6T Polyamide (PA6T)	Black	Board to Cable/Wire	4.37 mm	0.172 in

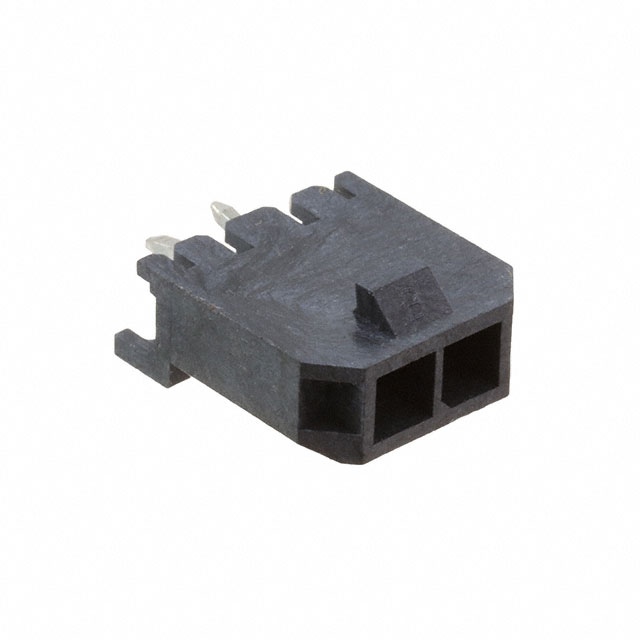

Adam Tech DML-1-02-A-V-T-A	0.125 in	3.18 mm	Male Pin	250 VAC	Solder		UL94 V-0	3 mm	0.118 in			Locking Ramp	All	Tin			2	Brass		Through Hole	Square	Shrouded - 4 Wall	Header	1	Thermoplastic	Black	Board to Cable/Wire			Varies by Wire Gauge

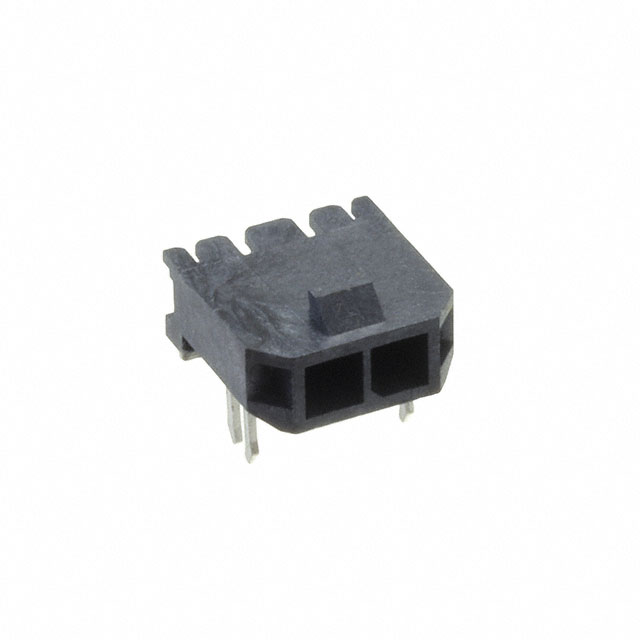

Adam Tech DML-1-02-A-H-T-A-BL	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in	85 °C	-25 °C	Locking Ramp	All	Tin	0.152 in	3.85 mm	2	Brass	5 A	Right Angle Through Hole	Square	Shrouded - 4 Wall	Header	1	Nylon 6T Polyamide (PA6T)	Black	Board to Cable/Wire

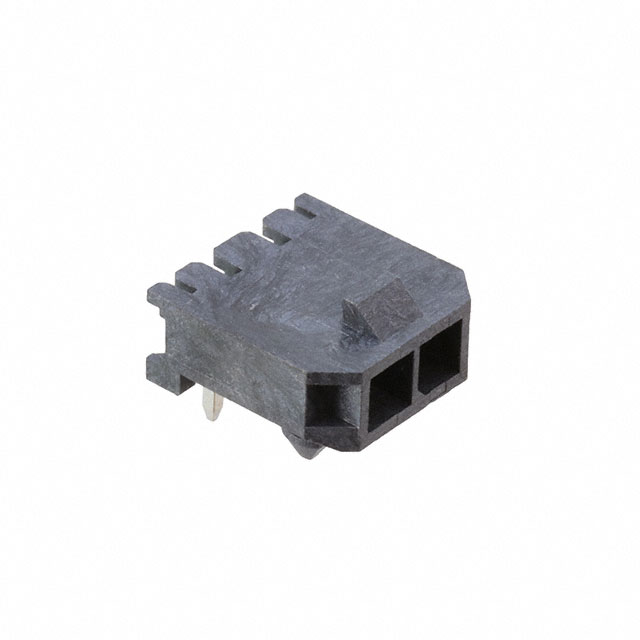

Adam Tech DML-1-02-A-H-T-A	0.125 in	3.18 mm	Male Pin	250 VAC	Solder	Board Lock	UL94 V-0	3 mm	0.118 in			Locking Ramp	All	Tin			2	Brass	5 A	Right Angle Through Hole	Square	Shrouded - 4 Wall	Header	1	Thermoplastic	Black	Board to Cable/Wire	4.37 mm	0.172 in
