1376492 Series

Catalog

2.5MM SIGNAL MATE CONN ON TAPE

Part	Applications	Current Rating (Amps)	Number of Rows	Shrouding	Insulation Material	Connector Type	Insulation Color	Contact Shape	Contact Finish - Post	Mounting Type	Material Flammability Rating	Contact Type	Number of Positions Loaded	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [custom]	Contact Length - Post	Current Rating (Amps)	Number of Positions

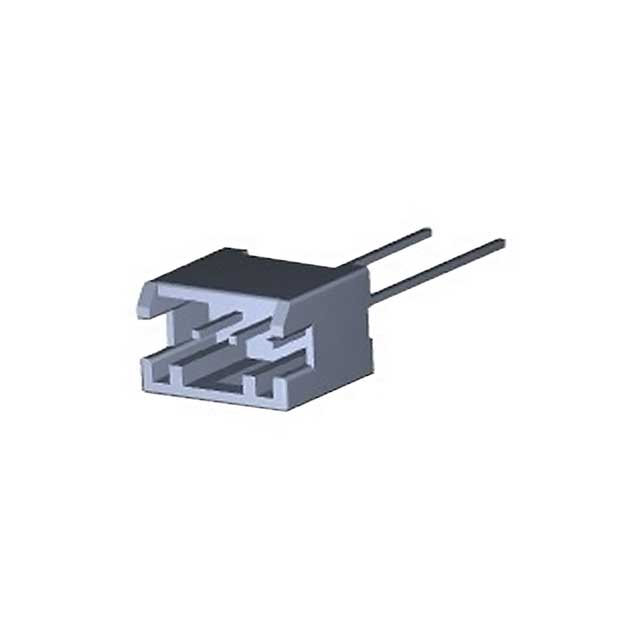

TE Connectivity AMP Connectors 5-1376492-3	General Purpose	Varies by Wire Gauge	1	Shrouded - 4 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Natural	Square	Tin	Through Hole	UL94 V-0	Male Pin	All	Latch Holder	Brass	-30 ░C	105 ░C	Solder	50 V	2.5 mm	0.098 in	Board to Cable/Wire
TE Connectivity AMP Connectors 6-1376492-3			1	Shrouded - 4 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Red	Square	Tin	Through Hole		Male Pin	All	Latch Holder	Brass	-30 ░C	105 ░C	Solder	50 VAC	2.5 mm	0.098 in	Board to Cable/Wire	0.11 in	2.79 mm	2.5 A

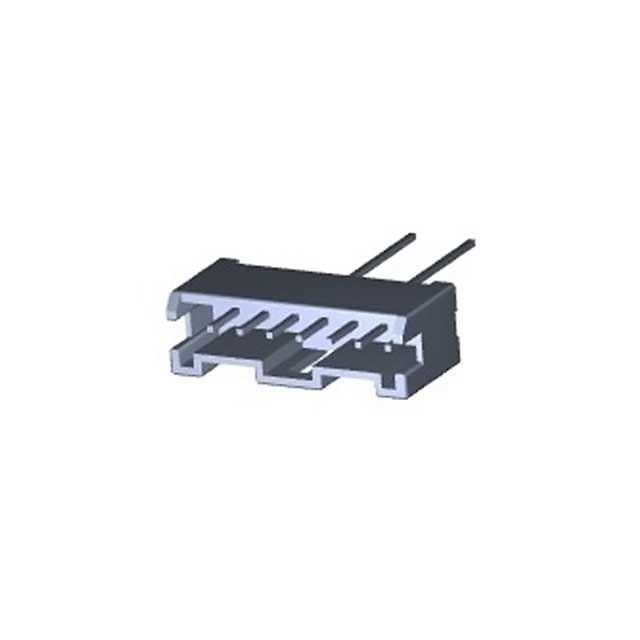

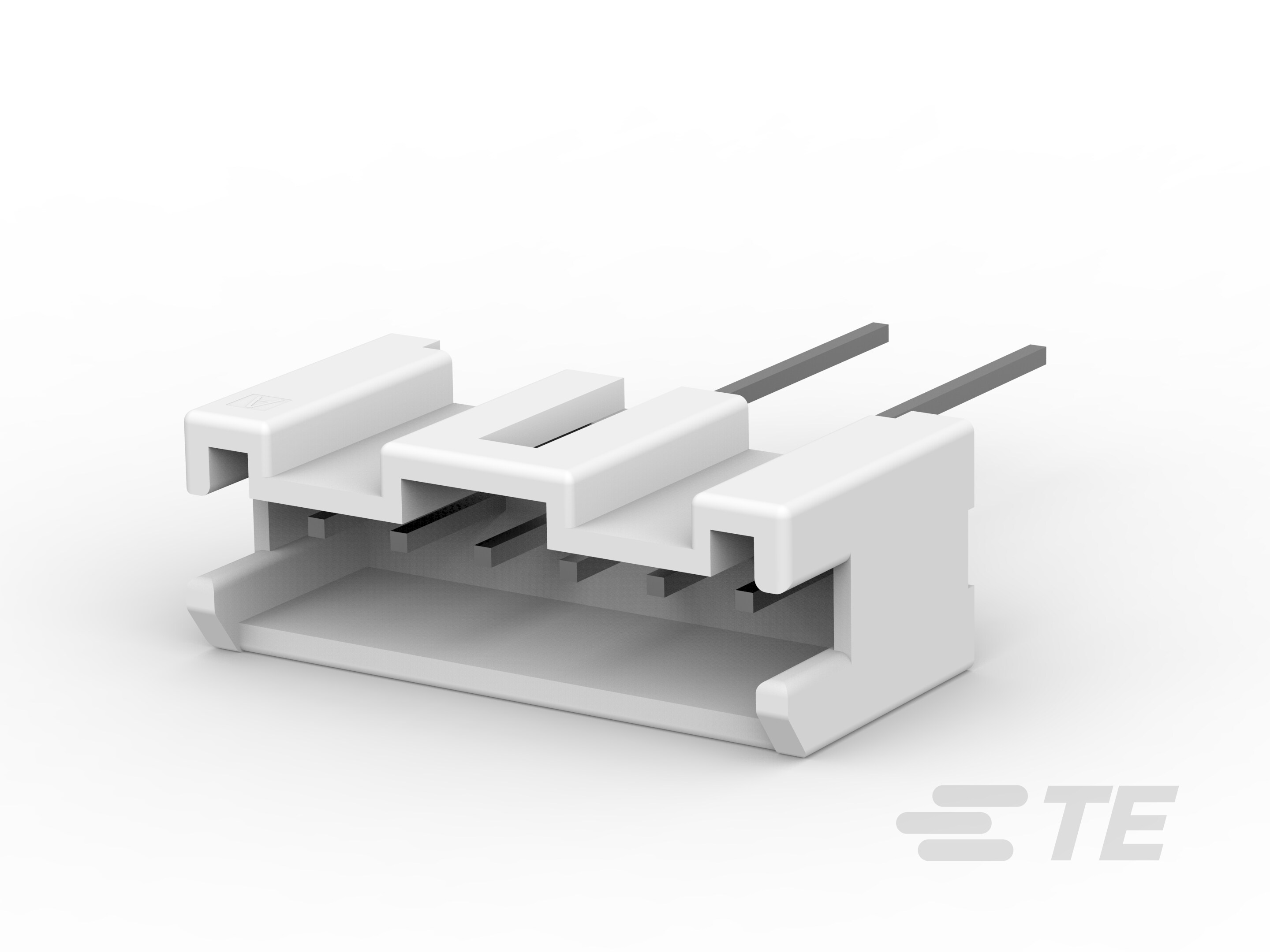

TE Connectivity AMP Connectors 5-1376492-7	General Purpose	Varies by Wire Gauge	1	Shrouded - 4 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Natural	Square	Tin	Through Hole	UL94 V-0	Male Pin	All	Latch Holder	Brass	-30 ░C	105 ░C	Solder	50 V	2.5 mm	0.098 in	Board to Cable/Wire				7

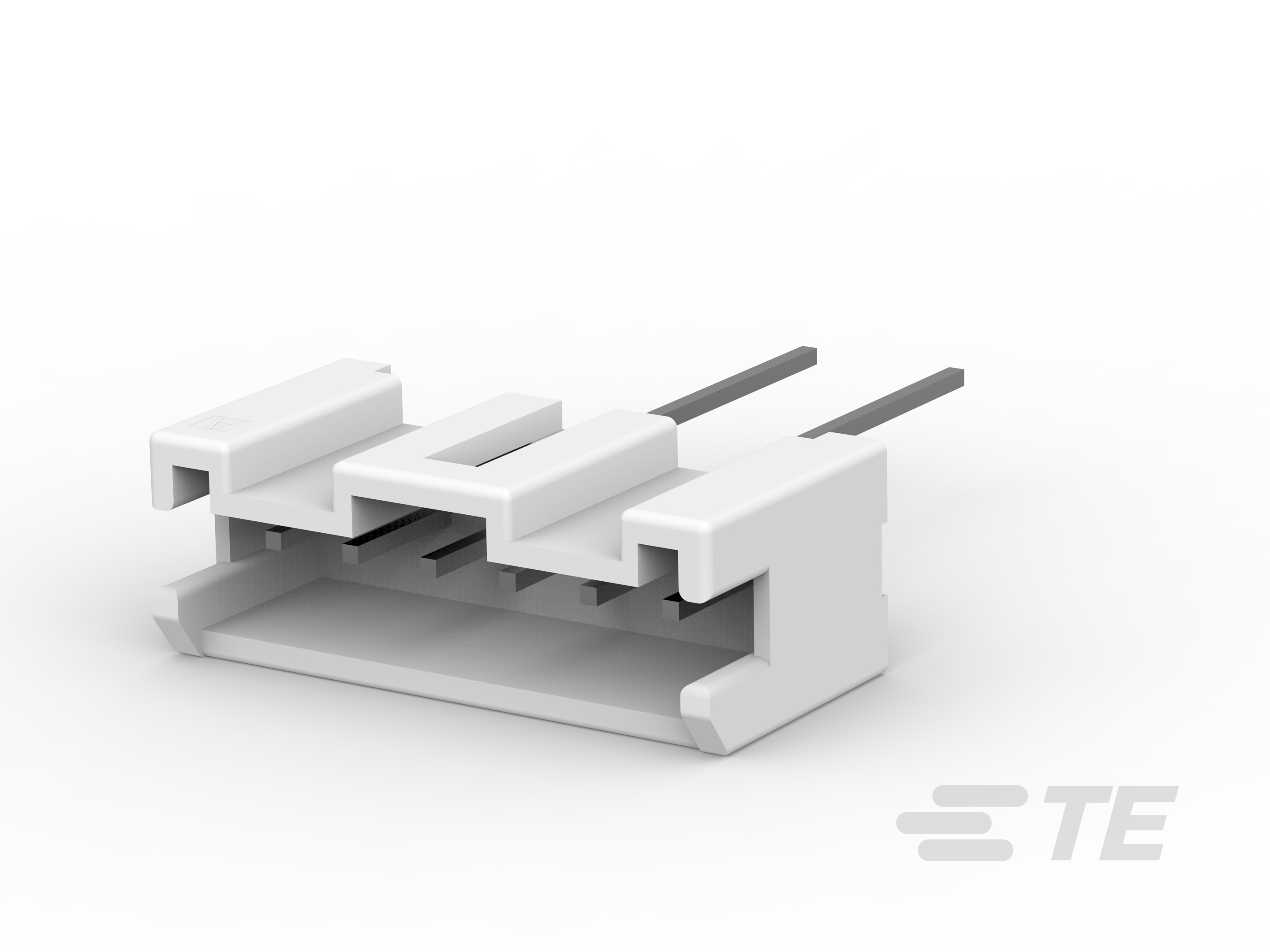

TE Connectivity AMP Connectors 5-1376492-6	General Purpose	Varies by Wire Gauge	1	Shrouded - 4 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Natural	Square	Tin	Through Hole	UL94 V-0	Male Pin	All	Latch Holder	Brass	-30 ░C	105 ░C	Solder	50 V	2.5 mm	0.098 in	Board to Cable/Wire				6
