TLX9185 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

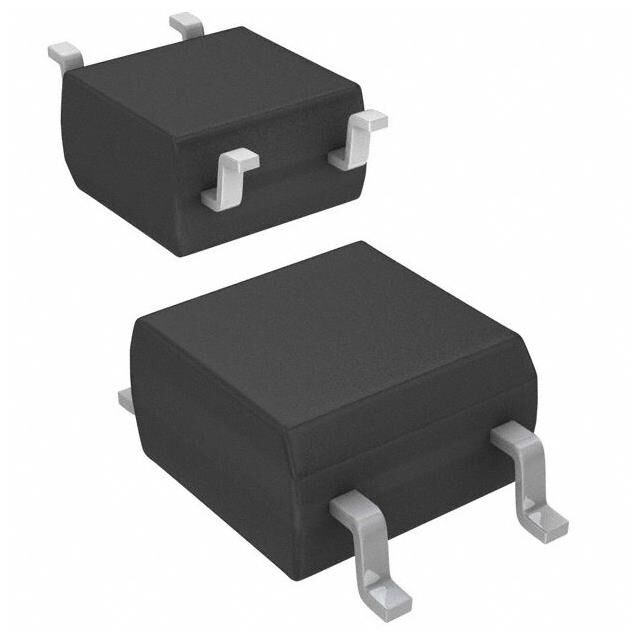

OPTOISO 3.75KV 1CH TRANS 6-SOP
| Part | Current Transfer Ratio (Max) [Max] | Rise / Fall Time (Typ) | Vce Saturation (Max) [Max] | Input Type | Mounting Type | Grade | Number of Channels [custom] | Turn On / Turn Off Time (Typ) | Current Transfer Ratio (Min) [Min] | Supplier Device Package | Current - Output / Channel [custom] | Voltage - Isolation | Voltage - Forward (Vf) (Typ) | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Current - DC Forward (If) (Max) [Max] | Package / Case | Current Transfer Ratio (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 600 % | 3 µs 5 µs | 400 mV | DC | Surface Mount | Automotive | 1 | 5 µs | 100 % | 6-SOP | 50 mA | 3750 Vrms | 1.27 V | Transistor | 125 °C | -40 C | AEC-Q101 | 30 mA | 6-SOIC (0.173" 4.40mm Width) 4 Leads | |
 Toshiba Semiconductor and Storage | 600 % | 3 µs 5 µs | 400 mV | DC | Surface Mount | 1 | 5 µs | 6-SOP | 50 mA | 3750 Vrms | 1.27 V | Transistor | 125 °C | -40 C | 30 mA | 6-SOIC (0.173" 4.40mm Width) 4 Leads | 20 % |
