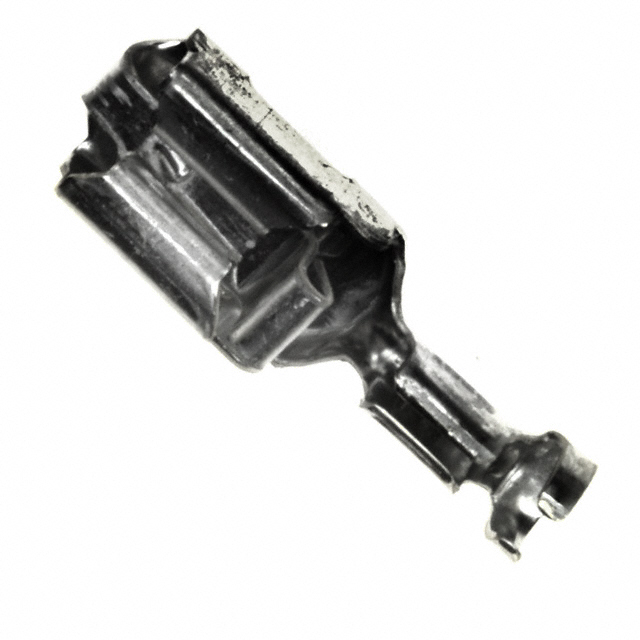

341002 Series

Catalog

CONN RCPT POS LOCK 18-14AWG .250

Part	Tab Width	Tab Width	Termination	Mounting Type	Insulation	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Material	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Contact Finish

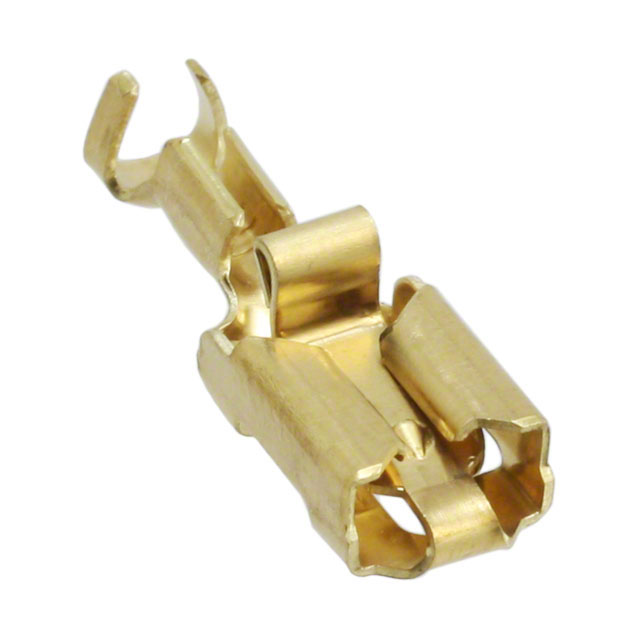

TE Connectivity Raychem Cable Protection 341002-1	6.35 mm	0.25 in	Crimp	Free Hanging (In-Line)	Non-Insulated	Female	14 AWG	18 AWG	Standard	0.094 "	0.126 in	3.2 mm	2.39 mm	Brass	0.032 in	0.81 mm	22.25 mm	0.876 "
TE Connectivity Raychem Cable Protection 341002-3	6.35 mm	0.25 in	Crimp	Free Hanging (In-Line)	Non-Insulated	Female	14 AWG	18 AWG	Standard	0.094 "	0.126 in	3.2 mm	2.39 mm	Brass	0.032 in	0.81 mm	22.25 mm	0.876 "	Tin
TE Connectivity Raychem Cable Protection 341002-6	6.35 mm	0.25 in	Crimp	Free Hanging (In-Line)	Non-Insulated	Female	14 AWG	18 AWG	Standard	0.094 "	0.126 in	3.2 mm	2.39 mm	Brass	0.032 in	0.81 mm	22.25 mm	0.876 "	Tin
