285 Series

Catalog

JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 285 SERIES

Part	Type	For Use With/Related Products	Color	Style	Number of Positions	Material - Insulation	Stripping Length	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Current - IEC	Termination Style	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]

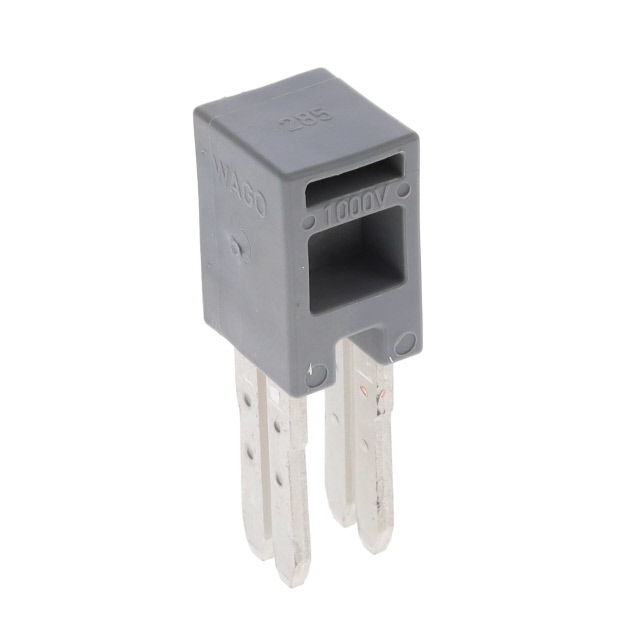

WAGO Corporation 285-435	Terminal Block Cross Connection	Terminal Blocks	Gray	Flat Pins	4

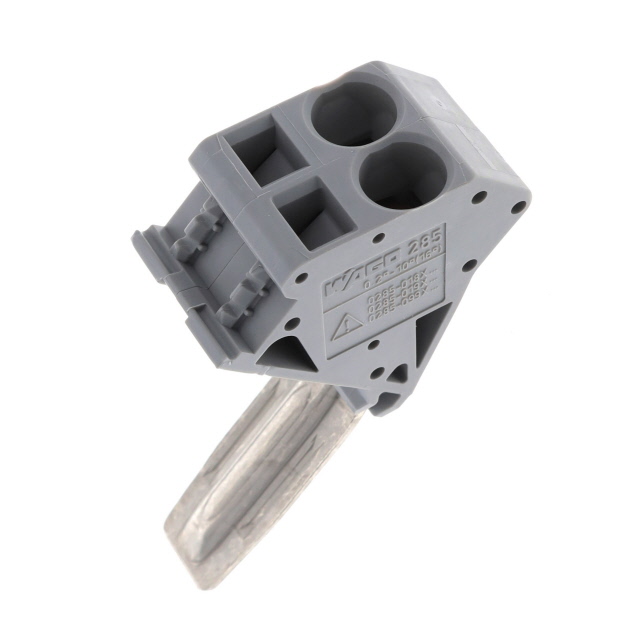

WAGO Corporation 285-407	Pick Off Terminal Block		Gray		2
WAGO Corporation 285-135	Feed Through		Gray		2	Nylon 6/6 Polyamide (PA66)	25 mm	1	35 mm²	6 mm²	1 kV	125 A	Push In Spring	16 mm	10 AWG	2 AWG
WAGO Corporation 285-137	Ground Earth		Green Yellow		2	Nylon 6/6 Polyamide (PA66)	25 mm	1	35 mm²	6 mm²			Push In Spring	16 mm	10 AWG	2 AWG

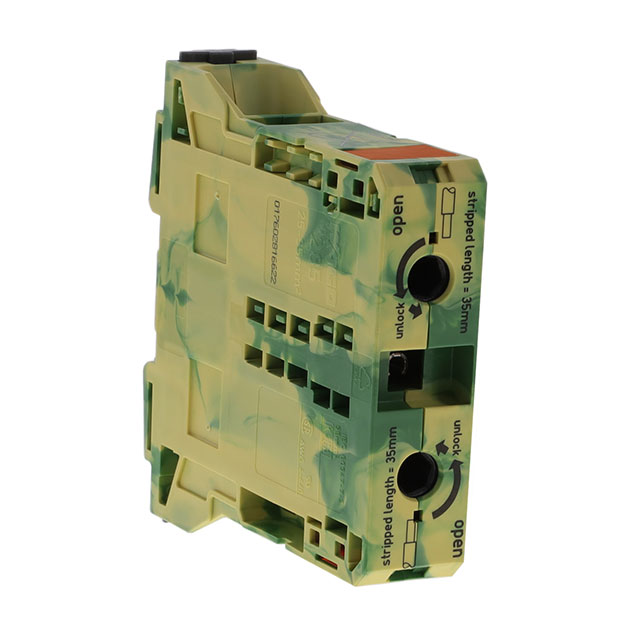

WAGO Corporation 285-197	Ground Earth		Green Yellow		2	Nylon 6/6 Polyamide (PA66)	35 mm	1	95 mm²	25 mm²			Push In Spring	25 mm	4 AWG	4 aught AWG
WAGO Corporation 285-150	Feed Through		Gray		2	Nylon 6/6 Polyamide (PA66)	30 mm	1	50 mm²	10 mm²	1 kV	150 A	Push In Spring	20 mm	8 AWG	1 aught AWG

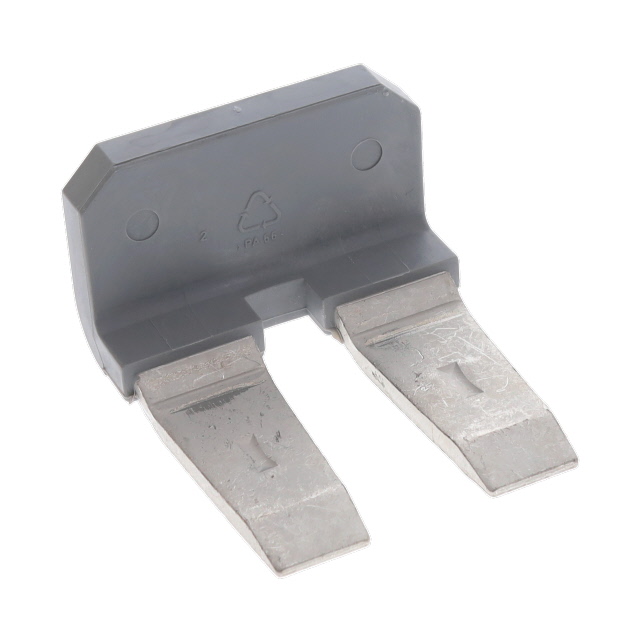

WAGO Corporation 285-495	Terminal Block Cross Connection	Terminal Blocks	Gray	Flat Pins - Angled	2

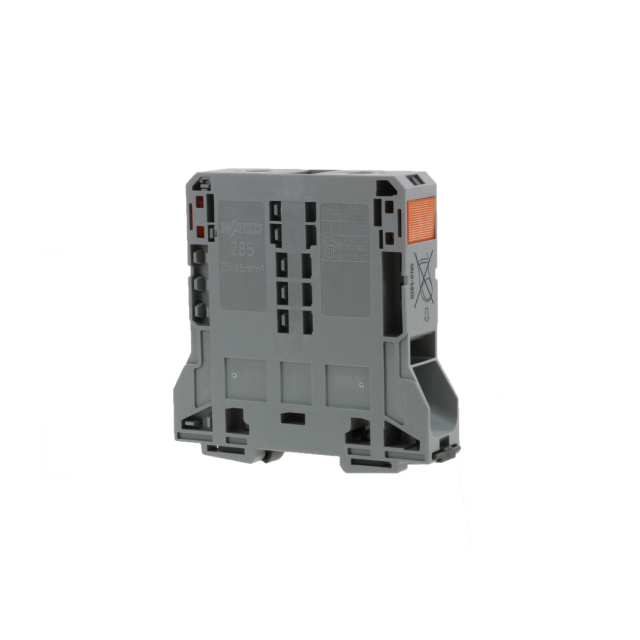

WAGO Corporation 285-195	Feed Through		Gray		2	Nylon 6/6 Polyamide (PA66)	35 mm	1	95 mm²	25 mm²	1500 V	232 A	Push In Spring	25 mm	4 AWG	4 aught AWG
WAGO Corporation 285-635	Feed Through		Gray		2	Nylon 6/6 Polyamide (PA66)	23 mm	1	35 mm²	6 mm²	1 kV	125 A	Push In Spring	16 mm	8 AWG	2 AWG
