392-096 Series

Manufacturer: EDAC Inc.

Catalog

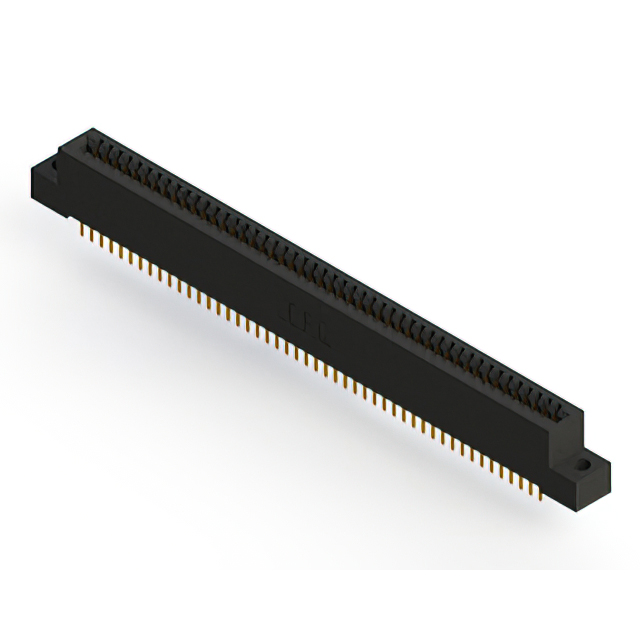

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Contact Finish	Number of Positions/Bay/Row	Gender	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Read Out	Features
EDAC Inc. 392-096-523-202	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-559-202	Polyester Thermoplastic	2	Right Angle Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	2	Black	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-555-202	Polyester Thermoplastic	2	Board Edge Straddle Mount	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	2	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual	Card Extender
EDAC Inc. 392-096-520-208	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-541-207	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			-40 C	105 ░C	2	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-524-212	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-524-202	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-559-201	Polyester Thermoplastic	2	Right Angle Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge				-40 C	105 ░C	2	Black	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-520-201	Polyester Thermoplastic	2	Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge				-40 C	105 ░C	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
EDAC Inc. 392-096-559-208	Polyester Thermoplastic	2	Right Angle Through Hole	Gold	48	Female	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	2	Black	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	96	Dual
