PPPC032 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 6POS 0.1 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Voltage Rating	Contact Type	Current Rating (Amps)	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Insulation Height	Insulation Height	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Fastening Type	Number of Rows [custom]	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PPPC032LFBN-RC	Square	Flash	Phosphor Bronze	Polyester	250 V	Female Socket	3 A	UL94 V-0	0.126 "	3.2 mm	Through Hole	0.335 "	8.51 mm	Header	0.1 in	2.54 mm	Flash	Push-Pull	2	Black	Solder	0.1 "	2.54 mm	6	Gold	All	-40 C	105 ░C	Gold
Sullins Connector Solutions PPPC032LFBN	Square	Flash	Phosphor Bronze	Polyester	250 V	Female Socket	3 A	UL94 V-0	0.126 "	3.2 mm	Through Hole	0.335 "	8.51 mm	Header	0.1 in	2.54 mm	Flash	Push-Pull	2	Black	Solder	0.1 "	2.54 mm	6	Gold	All	-40 C	105 ░C	Gold

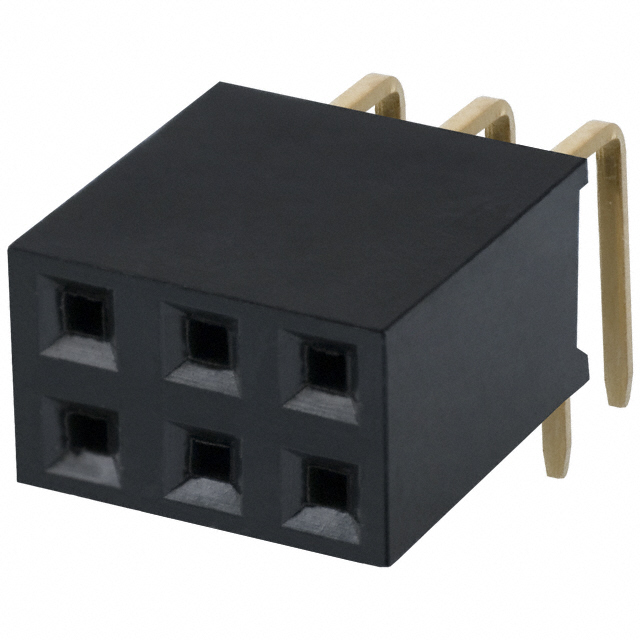

Sullins Connector Solutions PPPC032LJBN-RC	Square	Flash	Phosphor Bronze	Polyester	250 V	Female Socket	3 A	UL94 V-0			Right Angle Through Hole			Header	0.1 in	2.54 mm	Flash	Push-Pull	2	Black	Solder	0.1 "	2.54 mm	6	Gold	All	-40 C	105 ░C	Gold	0.124 in	3.15 mm	0.2 in	5.08 mm
Sullins Connector Solutions PPPC032KFMS	Square	Flash	Phosphor Bronze	Polyester	250 V	Female Socket	3 A	UL94 V-0			Surface Mount		7.6 mm	Header	0.1 in	2.54 mm	Flash	Push-Pull	2	Black	Solder	0.1 "	2.54 mm	6	Gold	All	-40 C	125 °C	Gold			0.299 "
