JWL21B Series

Catalog

SWITCH ROCKER DPST 16A 125V

Part	Electrical Life	Mechanical Life	Features	Ingress Protection	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Approval Agency	Actuator Marking	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)
NKK Switches JWL21BC2A-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Red	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O -	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BA2A-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O -	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BH1H-H	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof		4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O I	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A

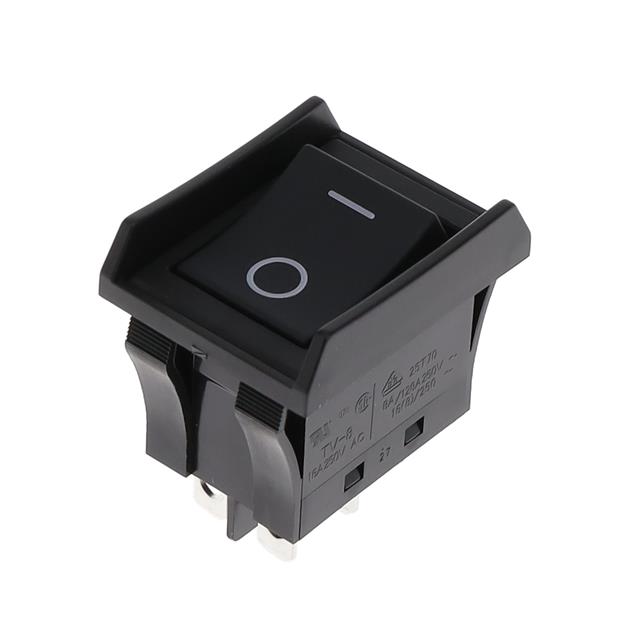

NKK Switches JWL21BA1A-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O I	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BA2A/UCV-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O -	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BAA-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BA2A-H	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O -	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BAA-H	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BC1A-A	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Red	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O I	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
NKK Switches JWL21BA2A-B	25000 Steps	25000 Steps	Epoxy Sealed Terminals	Dust Proof	Black	4.7 mm	0.187 in	Solder Quick Connect	125 V	CSA UL VDE	O -	Panel Mount Snap-In	Concave (Curved)	-25 °C	70 °C	On-Off	DPST	20.5 mm	29.5 mm	16 A
