APC-817 Series

Catalog

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Part	Current - Output / Channel [custom]	Number of Channels [custom]	Input Type	Mounting Type	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Supplier Device Package	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]	Current Transfer Ratio (Min)	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current Transfer Ratio (Max) [Max]

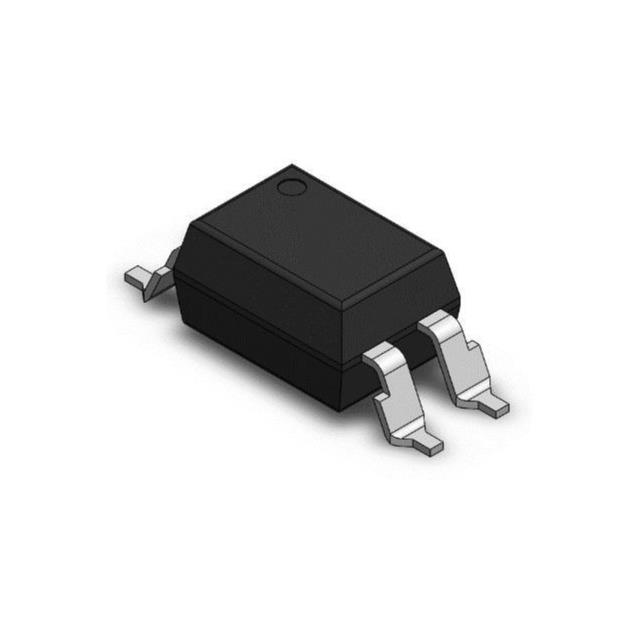

American Bright Optoelectronics Corporation APC-817A1-SL	50 mA	1	DC	Surface Mount	35 V	-55 C	110 °C	Transistor	4-SMD	160 %	200 mV	80 %	4-SMD Gull Wing	4 µs	3 µs	60 mA	1.24 V
American Bright Optoelectronics Corporation APC-817B1-SL	50 mA	1	DC	Surface Mount	35 V	-55 C	110 °C	Transistor	4-SMD (SL Type)		200 mV	130 %	4-SMD Gull Wing	4 µs	3 µs	60 mA	1.24 V	260 %
American Bright Optoelectronics Corporation APC-817D1-SL	50 mA	1	DC	Surface Mount	35 V	-55 C	110 °C	Transistor	4-SMD		200 mV	300 %	4-SMD Gull Wing	4 µs	3 µs	60 mA	1.24 V	600 %
American Bright Optoelectronics Corporation APC-817C1-SL	50 mA	1	DC	Surface Mount	35 V	-55 C	110 °C	Transistor	4-SMD	400 %	200 mV	200 %	4-SMD Gull Wing	4 µs	3 µs	60 mA	1.24 V
