SFW10S Series

Catalog

CONN FPC VERT 10POS 1MM SMD

Part	Mating Cycles	Housing Color	Contact Material	Mounting Type	Housing Material	Flat Flex Type	Material Flammability Rating	Termination	FFC, FCB Thickness	Connector/Contact Type	Actuator Material	Voltage Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Finish	Height Above Board [z]	Height Above Board [z]	Locking Feature	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Cable End Type	Features

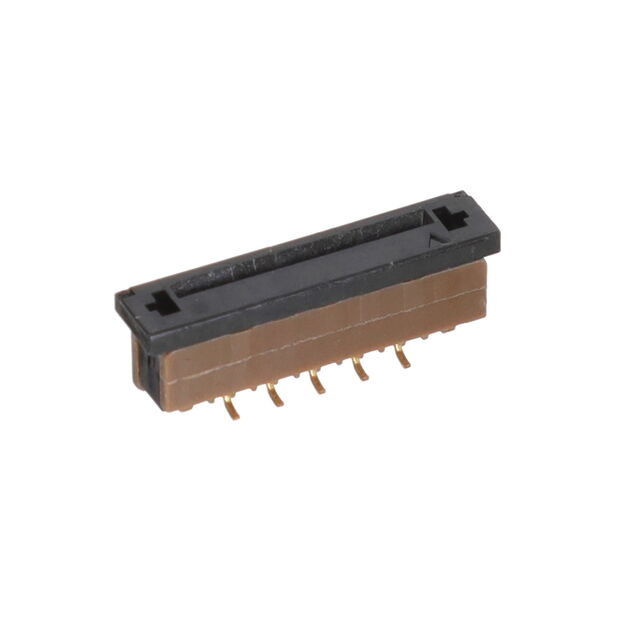

Amphenol ICC (FCI) SFW10S-2STAE1LF	20	Brown	Phosphor Bronze	Surface Mount	Glass Filled Thermoplastic	FPC	UL94 V-0	Solder	0.33 mm	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	100 V	10	-55 C	85 °C	1 mm	0.039 in	Gold	0.209 in	5.3 mm

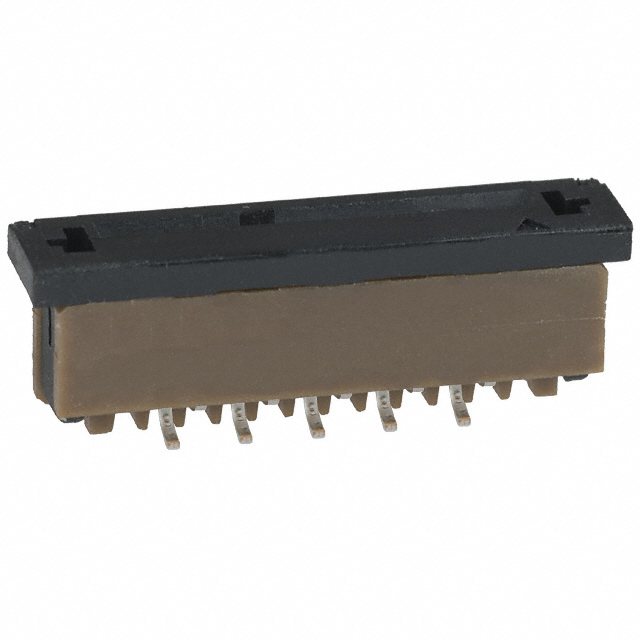

Amphenol ICC (FCI) SFW10S-2STE1LF	20	Brown	Phosphor Bronze	Surface Mount	Glass Filled Thermoplastic	FFC FPC	UL94 V-0	Solder	0.33 mm	Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	100 V	10	-55 C	105 ░C	1 mm	0.039 in	Tin	0.209 in	5.3 mm	Slide Lock

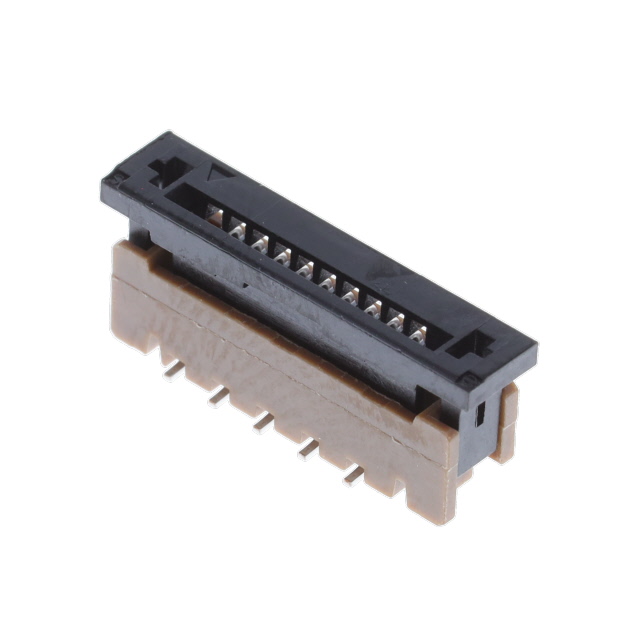

Amphenol ICC (FCI) SFW10S-2STE9LF	20	Brown	Phosphor Bronze	Surface Mount	Glass Filled Thermoplastic	FFC FPC	UL94 V-0	Solder		Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	100 V	10	-55 C	85 °C	1 mm	0.039 in	Tin	0.209 in	5.3 mm	Slide Lock	Black	0.3 mm	0.33 mm	Straight Tapered
Amphenol ICC (FCI) SFW10S-2STME9LF	20	Brown	Phosphor Bronze	Surface Mount	Glass Filled Thermoplastic	FFC FPC	UL94 V-0	Solder		Contacts Vertical - 1 Sided	Thermoplastic Glass Filled	100 V	10	-55 C	85 °C	1 mm	0.039 in	Tin	0.209 in	5.3 mm	Slide Lock	Black	0.3 mm	0.33 mm	Straight Tapered	Solder Retention Zero Insertion Force (ZIF)
