OSTTC06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

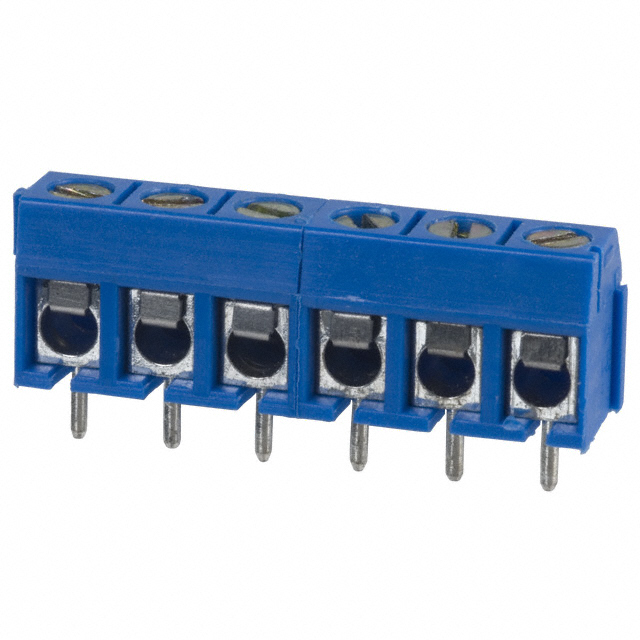

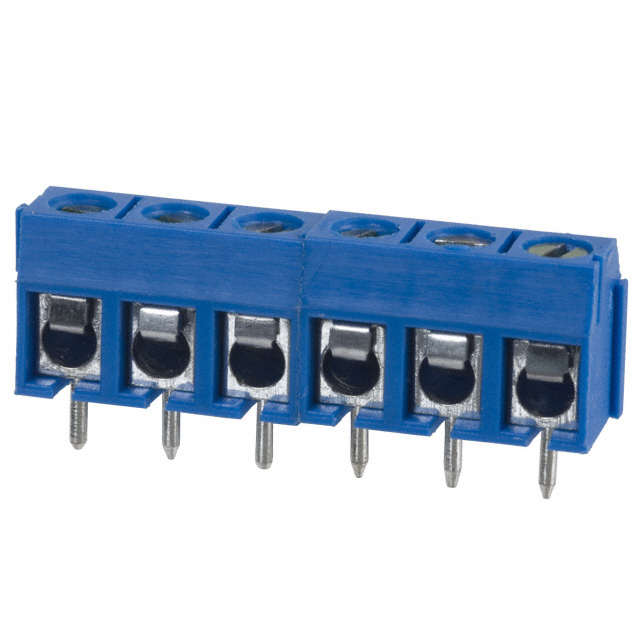

TERM BLK 6POS SIDE ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Screw Material - Plating | Housing Material | Clamp Material - Plating [custom] | Contact Material - Plating | Color | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Positions Per Level | Wire Termination | Mating Orientation | Voltage | Features | Pitch | Pitch | Number of Levels | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | M2.6 | 2.6 Lb-In | 0.3 Nm | Steel - Zinc Plated | Thermoplastic | Stainless Steel | Tin Plated | Blue | 14 AWG | 22 AWG | Through Hole | 6 | Screw - Leaf Spring Wire Guard | Horizontal with Board | 300 VDC | Interlocking (Side) | 0.197 in | 5 mm | 1 | 15 A |
 On Shore Technology Inc. | -30 ░C | 105 ░C | M2.6 | 2.6 Lb-In | 0.3 Nm | Steel - Zinc Plated | Thermoplastic | Stainless Steel | Tin Plated | Blue | 14 AWG | 22 AWG | Through Hole | 6 | Screw - Leaf Spring Wire Guard | Horizontal with Board | 300 VDC | Interlocking (Side) | 0.2 in | 5.08 mm | 1 | 15 A |
