UB-MC5BR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

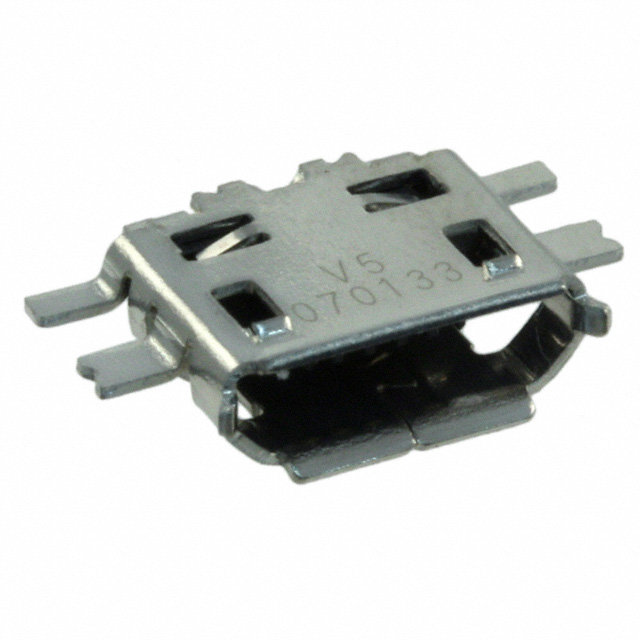

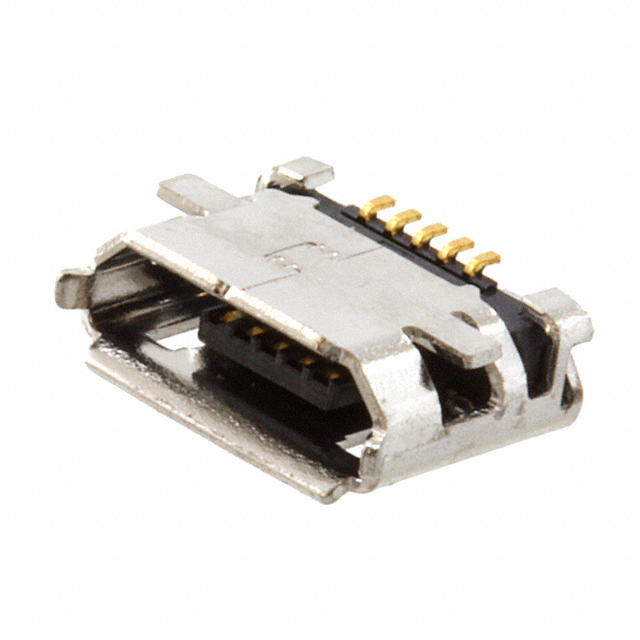

CONN RCPT MICRO USB B 5POS SMD
| Part | Shell/Shielding Material | Contact Finish | Material Flammability Rating | Insulation Color | Voltage - Rated | Mounting Feature | Termination | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts | Connector Type | Number of Ports | Mounting Type | Mating Cycles | Features | Shielding | Gender | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Stainless Steel | Gold | UL94 V-0 | Black | 30 VAC | Horizontal Mid Mount | Solder | 0.5 A 1 A 1.8 A | 85 °C | -30 ░C | 5 | USB - micro B | 1 | Board Cutout Surface Mount | 10000 | Solder Retention | Unshielded | Receptacle | |

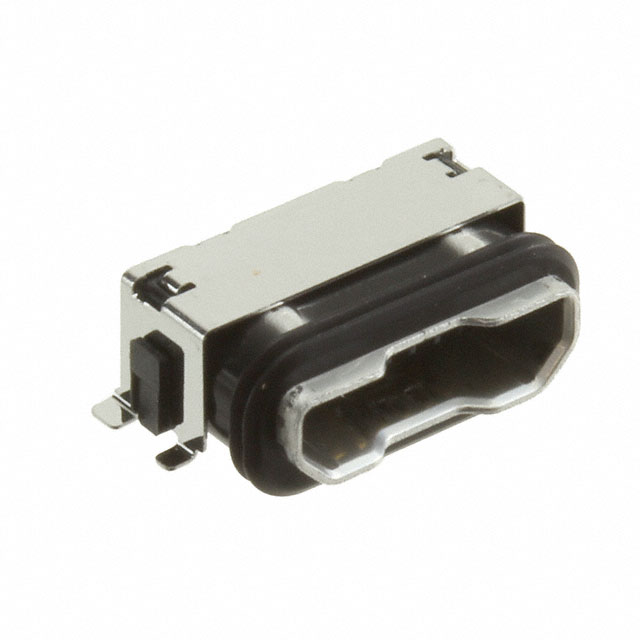

 JST Sales America Inc. | Stainless Steel | Gold | UL94 V-0 | Black | 30 VAC | Horizontal | Solder | 0.5 A 1 A 1.8 A | 85 °C | -30 ░C | 5 | USB - micro B | 1 | Right Angle Surface Mount | 10000 | Board Guide Solder Retention | Unshielded | Receptacle | Waterproof |
 JST Sales America Inc. | Stainless Steel | Gold | UL94 V-0 | Black | 30 VAC | Horizontal | Solder | 0.5 A 1 A 1.8 A | 85 °C | -30 ░C | 5 | USB - micro B | 1 | Right Angle Surface Mount | 10000 | Solder Retention | Unshielded | Receptacle |
