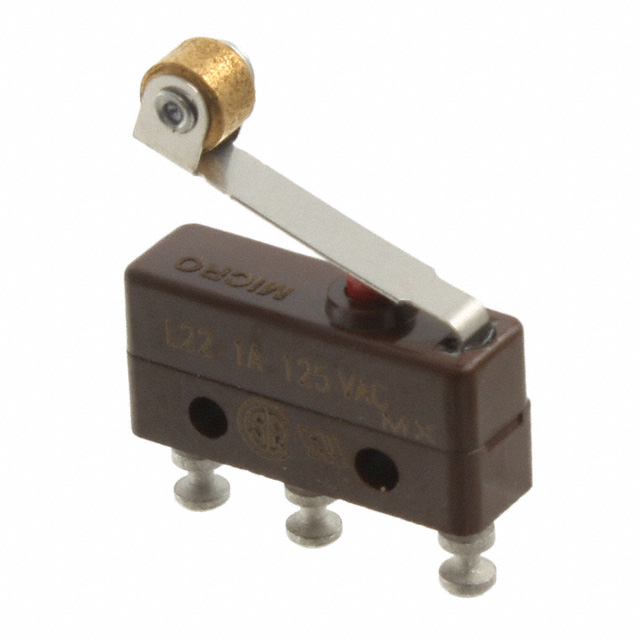

122SM44 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Switch Function | Mechanical Life | Release Force | Operating Force | Mounting Type | Pretravel | Pretravel | Circuit | Operating Position | Operating Position | Actuator Type | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | On-Mom | 10000000 Cycles | 57 gf | 198 gf | Chassis Mount | 0.218 in | 5.5 mm | SPDT | 0.562 in | 14.3 mm | Lever Roller | Solder Turret | 30 V | 1 A | 125 V | -55 C | 125 °C | 0.025 in | 0.6 mm | 0.03 " | 0.76 mm |
