M80-531 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,34 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,M2X0.4 ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Color	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Fastening Type	Number of Rows [custom]	Connector Type	Contact Material	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Mounting Type	Number of Positions [custom]	Contact Finish - Post	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Shape	Insulation Material	Number of Positions Loaded	Contact Type	Shrouding	Number of Positions

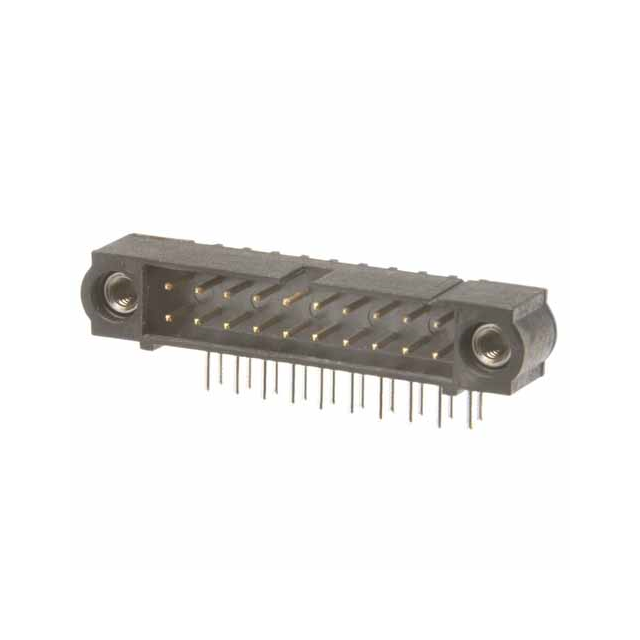

Harwin Inc. M80-5313422	118.1 µin	3 µm	Black	4.4 mm	0.173 in	5.55 mm	0.218 in	Threaded	2	Header	Phosphor Bronze	2.2 A	UL94 V-0	0.079 "	2 mm	-55 C	125 °C	Board to Board Cable	Solder	Right Angle Through Hole	34	Tin-Lead	Gold	2 mm	0.079 in	120 VDC	Keying Slot Mating Flange	29.5 µin	0.75 µm	Circular	Polyphenylene Sulfide (PPS) Glass Filled	All	Male Pin	Shrouded - 4 Wall
Harwin Inc. M80-5312042	118.1 µin	3 µm	Black	4.4 mm	0.173 in	5.55 mm	0.218 in	Threaded	2	Header	Phosphor Bronze	2.2 A	UL94 V-0	0.079 "	2 mm	-55 C	125 °C	Board to Board Cable	Solder	Right Angle Through Hole		Tin	Gold	2 mm	0.079 in	120 VDC	Keying Slot Mating Flange	29.5 µin	0.75 µm	Circular	Polyphenylene Sulfide (PPS) Glass Filled	All	Male Pin	Shrouded - 4 Wall	20
Harwin Inc. M80-5315042	118.1 µin	3 µm	Black	4.4 mm	0.173 in	5.55 mm	0.218 in	Threaded	2	Header	Phosphor Bronze	2.2 A	UL94 V-0	0.079 "	2 mm	-55 C	125 °C	Board to Board Cable	Solder	Right Angle Through Hole		Tin	Gold	2 mm	0.079 in	120 VDC	Keying Slot Mating Flange	29.5 µin	0.75 µm	Circular	Polyphenylene Sulfide (PPS) Glass Filled	All	Male Pin	Shrouded - 4 Wall	50
Harwin Inc. M80-5312642	118.1 µin	3 µm	Black	4.4 mm	0.173 in	5.55 mm	0.218 in	Threaded	2	Header	Phosphor Bronze	2.2 A	UL94 V-0	0.079 "	2 mm	-55 C	125 °C	Board to Board Cable	Solder	Right Angle Through Hole		Tin	Gold	2 mm	0.079 in	120 VDC	Keying Slot Mating Flange	29.5 µin	0.75 µm	Circular	Polyphenylene Sulfide (PPS) Glass Filled	All	Male Pin	Shrouded - 4 Wall	26
Harwin Inc. M80-5310642	118.1 µin	3 µm	Black	4.4 mm	0.173 in	5.55 mm	0.218 in	Threaded	2	Header	Phosphor Bronze	2.2 A	UL94 V-0	0.079 "	2 mm	-55 C	125 °C	Board to Board Cable	Solder	Right Angle Through Hole		Tin	Gold	2 mm	0.079 in	120 VDC	Keying Slot Mating Flange	29.5 µin	0.75 µm	Circular	Polyphenylene Sulfide (PPS) Glass Filled	All	Male Pin	Shrouded - 4 Wall	6
