MV507 Series

Catalog

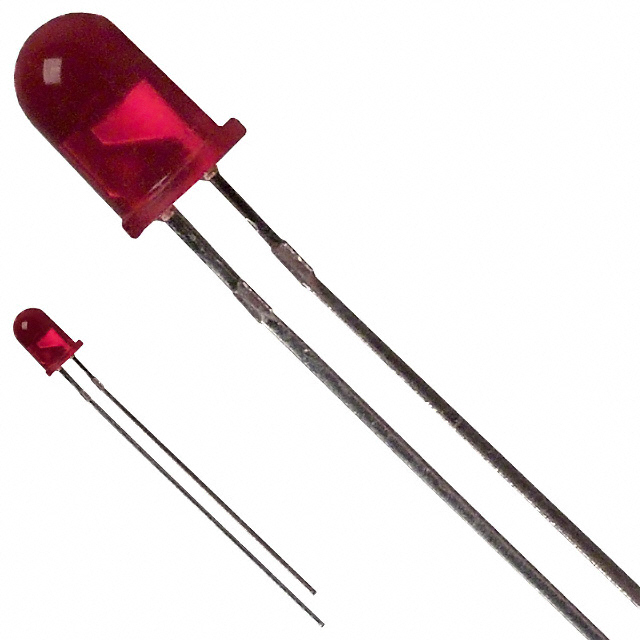

LED RED DIFFUSED T-1 T/H

Part	Configuration	Lens Transparency	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Wavelength - Peak	Mounting Type	Lens Size	Lens Size	Current - Test	Package / Case	Millicandela Rating	Lens Style	Supplier Device Package	Viewing Angle	Lens Color	Color	Viewing Angle [custom]
ON Semiconductor MV5074C	Standard	Diffused	1.6 V	5.84 mm	660 nm	Through Hole	3 mm	T-1	20 mA	Radial	2.5 mcd	Round with Domed Top	T-1	70 °	Red	Red
ON Semiconductor MV5075C	Standard	Diffused	1.6 V	5.84 mm	660 nm	Through Hole	3 mm	T-1	20 mA	Radial	1.5 mcd	Round with Domed Top	T-1		Red	Red	90 °
