T13X Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

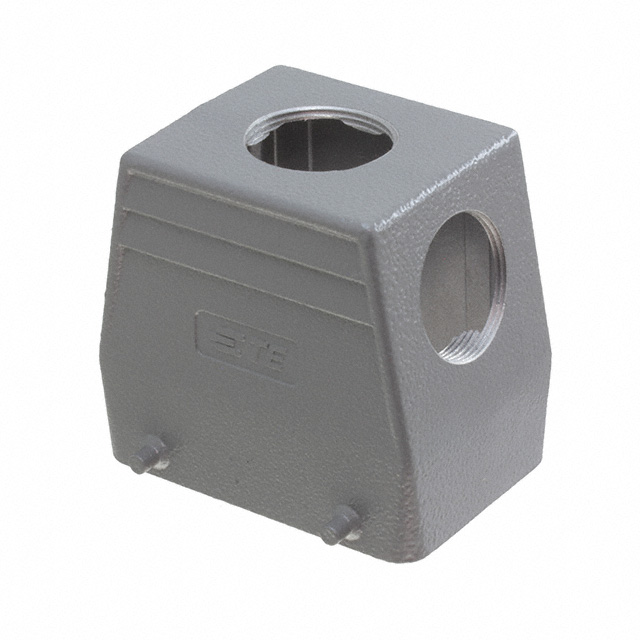

H10B-TSH/TGH-RO-2M25
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Housing Material | Style | Housing Color | Connector Type | Ingress Protection | Size | Thread Size | Lock Location | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.835 " | 43 mm | 72 mm | 1.693 " | 73 mm | 2.874 " | Aluminum Alloy Die Cast | Side and Top Entry | Gray | Hood | IP65 - Dust Tight Water Resistant | H10B | M25 | Locking Clip (1) on Base Bottom | Powder Coated | 125 °C | -40 C |
 TE Connectivity AMP Connectors | 2.992 in | 56 mm | 76 mm | 2.205 in | 82 mm | 3.228 in | Aluminum Alloy Die Cast | Side and Top Entry | Hood | IP65 - Dust Tight Water Resistant | H32A | M32 | Locking Clip (2) on Base Bottom | Zinc | 125 °C | -40 C |
