XZFBBA05 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.2" DBL BLUE 20SMD
| Part | Wavelength - Peak | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Common Pin | Current - Test | Power Dissipation (Max) | Color | Number of Characters | Display Type | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

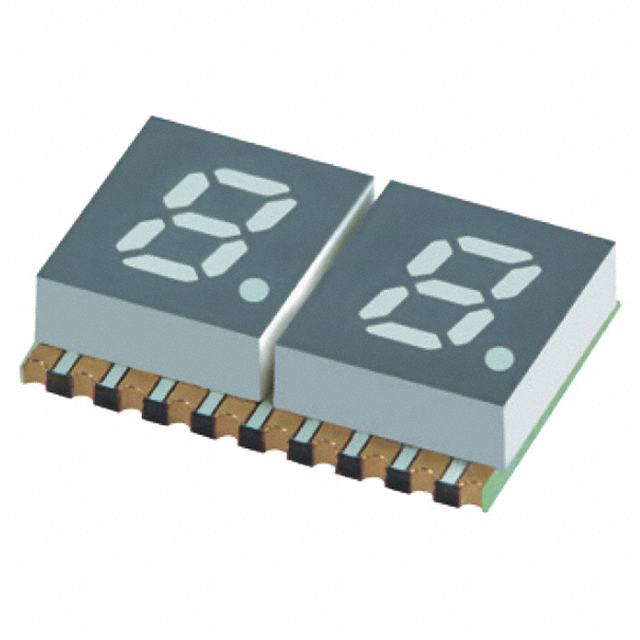

 SunLED | 468 nm | 20-SMD No Lead | 0.2 in | 5.08 mm | 3 mm | 0.118 " | 10 mm | 14.1 mm | 0.394 " | 0.555 in | 4 mcd | 3.05 V | Common Anode | 10 mA | 120 mW | Blue | 2 | 7-Segment | |

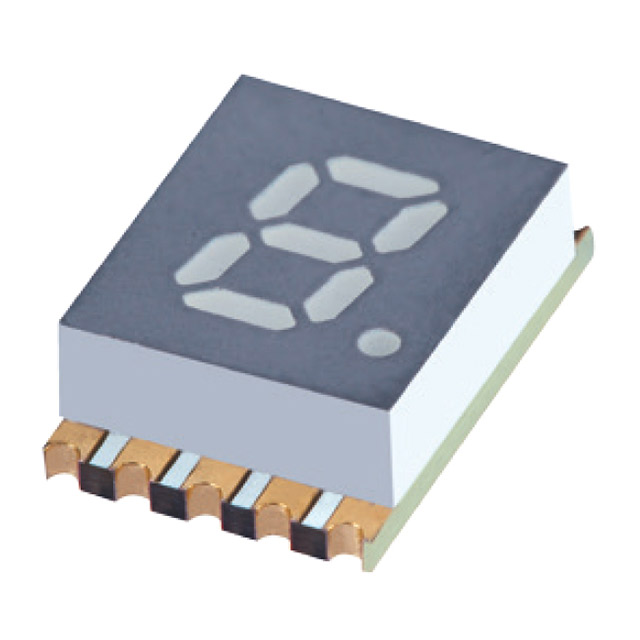

 SunLED | 468 nm | 10-SMD No Lead | 0.2 in | 5.08 mm | 10 mm | 0.394 in | 3 mm | 6.9 mm | 0.118 in | 0.272 in | 4 mcd | 3.05 V | Common Cathode | 10 mA | 120 mW | Blue | 7-Segment | 1 |
