3241 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 300-350MCM #5/8

Part	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Stud/Tab Size	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Terminal Type	Features	Length - Overall	Length - Overall	Contact Material	Mounting Type	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Color	Length - Termination	Length - Termination	Insulation Diameter [Max] [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]
TE Connectivity Raychem Cable Protection 324105	Crimp	1.545 in	39.24 mm	Non-Insulated	0.625 Stud	3.45 mm	0.136 in	350 kcmil	300 kcmil	Tin	Circular	Brazed Seam	67.84 mm	2.671 in	Copper	Free Hanging (In-Line)

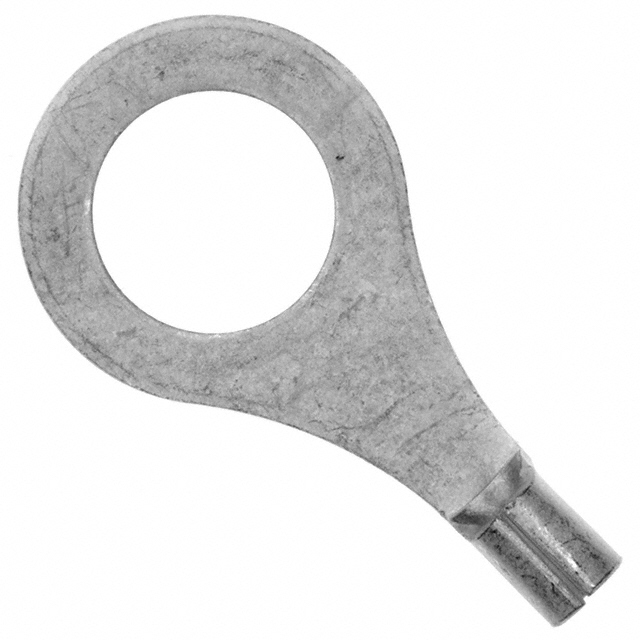

TE Connectivity Raychem Cable Protection 324124	Crimp			Non-Insulated	0.3125 Stud	0.79 mm	0.031 in	22 AWG	16 AWG	Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)	13.49 mm	0.531 "	25.27 mm	0.995 in
TE Connectivity Raychem Cable Protection 324159	Crimp	0.25 "	6.35 mm	Insulated	4 Stud	0.79 mm	0.031 in			Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)			17.86 mm	0.703 in	Nylon Polyamide (PA)	0.105 in	3.81 mm	2.67 mm	0.15 "	Blue

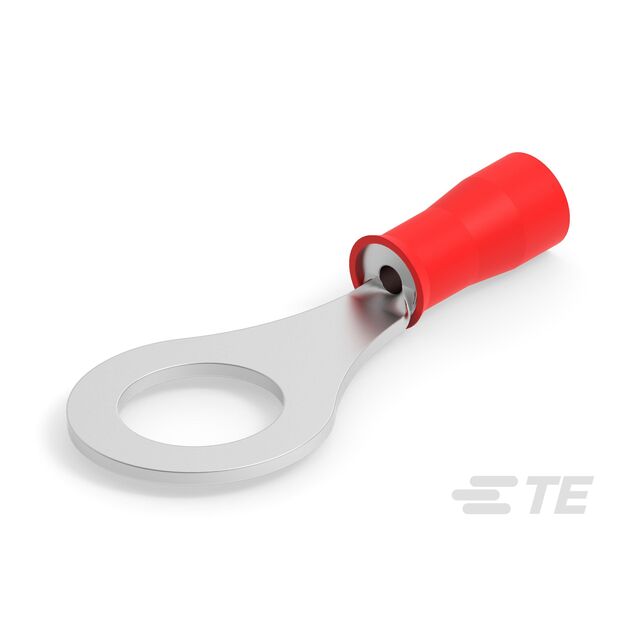

TE Connectivity Raychem Cable Protection 324123	Crimp			Insulated	0.3125 Stud	0.79 mm	0.031 in	22 AWG	16 AWG	Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)	13.49 mm	0.531 "	30.94 mm	1.218 in	Nylon Polyamide (PA)	0.08 in	3.18 mm	2.03 mm	0.125 "	Red
TE Connectivity Raychem Cable Protection 324169	Crimp			Insulated				22 AWG	16 AWG	Tin	Flanged	Serrated Termination			Copper	Free Hanging (In-Line)			22.17 mm	0.873 in	Poly-Vinyl Chloride (PVC)	0.105 in		2.67 mm	0.14 in	Red	10.57 mm	0.416 in	3.56 mm	0.171 in	4.34 mm	0.25 in	6.35 mm	0.416 in	10.57 mm	8 Stud

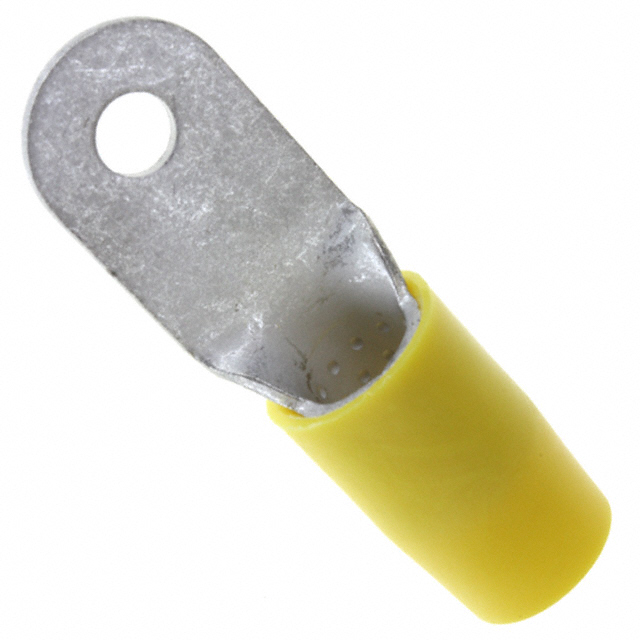

TE Connectivity Raychem Cable Protection 324111	Crimp	0.546 in	13.87 mm	Insulated	10 Stud	1.22 mm	0.048 in			Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)			46.02 mm	1.812 in	Nylon Polyamide (PA)					Yellow											0.382 in	9.7 mm	4 AWG
TE Connectivity Raychem Cable Protection 324187	Crimp			Insulated		2.59 mm	0.102 in			Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)			72.59 mm	2.858 in	Nylon Polyamide (PA)					Blue										3/8 Stud	0.765 in	19.43 mm	4 aught AWG

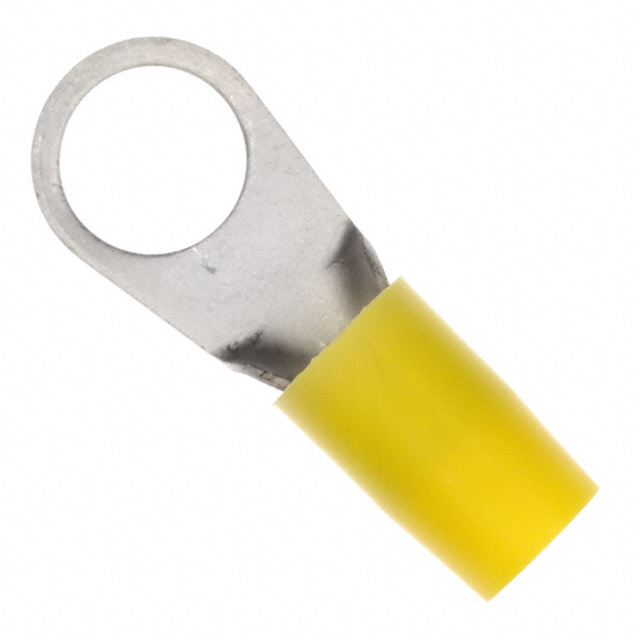

TE Connectivity Raychem Cable Protection 324114	Crimp	0.679 in	17.25 mm	Insulated		1.22 mm	0.048 in			Tin	Circular	Serrated Termination			Copper	Free Hanging (In-Line)			47.7 mm	1.878 in	Nylon Polyamide (PA)					Yellow										1/2 Stud	0.382 in	9.7 mm	4 AWG
TE Connectivity Raychem Cable Protection 324165	Crimp			Insulated	6 Stud					Tin	Flanged	Serrated Termination			Copper	Free Hanging (In-Line)		0.294 in	19.81 mm	0.78 in	Poly-Vinyl Chloride (PVC)					Blue	10.57 mm	0.416 in		0.145 in	3.68 mm	0.203 in	5.16 mm		7.47 mm					4.9 mm	3 mm	0.193 in	0.118 in
