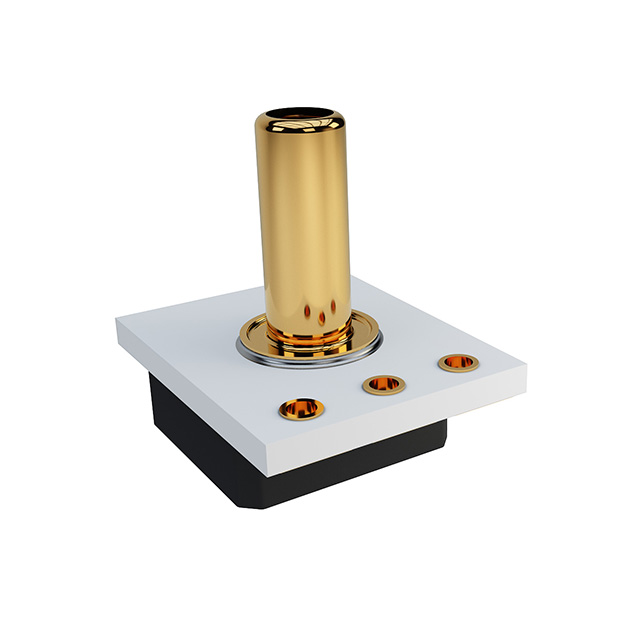

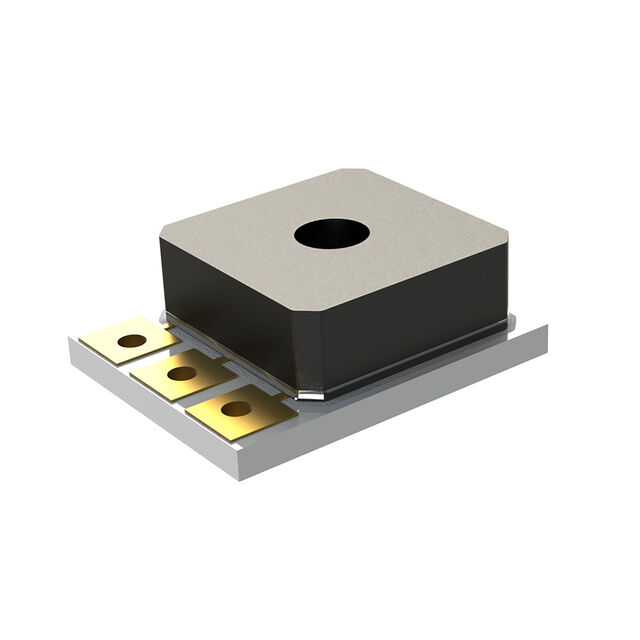

BPS130 Series
Manufacturer: Bourns Inc.
Beta
⌘K
BOARD MOUNT PRESSURE SENSORS PRESSURE SENSOR, ANALOG, 100 PSIA, PINS
| Part | Output Type | Output [Min] | Output [Max] | Port Size | Port Size | Port Size | Package / Case | Operating Pressure | Operating Pressure | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Maximum Pressure | Maximum Pressure | Accuracy | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Port Style | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 3-SIP Module | 689.48 kPa | 100 PSI | PC Pin | 5.5 V | 4.5 V | 200 PSI | 1378.95 kPa | 0.25 % | Board Mount | -40 C | 150 °C | Through Hole | Barbless | |||
 Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 3-SIP Module | 103.42 kPa | 15 PSI | PC Pin | 5.5 V | 4.5 V | 0.25 % | Board Mount | -40 C | 150 °C | Through Hole | Barbless | Gauge | 206.84 kPa | 30 PSI | ||
 Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | Module | 103.42 kPa | 15 PSI | 5.5 V | 4.5 V | 0.25 % | Board Mount | -40 C | 150 °C | No Port | Gauge | 206.84 kPa | 30 PSI | |||||||
Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 3-SIP Module | 689.48 kPa | 100 PSI | PC Pin | 5.5 V | 4.5 V | 200 PSI | 1378.95 kPa | 0.25 % | Board Mount | -40 C | 150 °C | Through Hole | Barbless | Gauge | ||
 Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 103.42 kPa | 15 PSI | Solder Pad | 5.5 V | 4.5 V | 0.25 % | Board Mount | -40 C | 150 °C | Barbless | 206.84 kPa | 30 PSI | |||||
Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 689.48 kPa | 100 PSI | Solder Pad | 5.5 V | 4.5 V | 200 PSI | 1378.95 kPa | 0.25 % | Board Mount | -40 C | 150 °C | Barbless | Gauge | ||||
 Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 2068.43 kPa | 300 PSI | Solder Pad | 5.5 V | 4.5 V | 0.25 % | Board Mount | -40 C | 150 °C | Barbless | Gauge | 4136.85 kPa | 600 PSI | ||||
Bourns Inc. | Analog Voltage | 0.45 V | 4.95 V | 0.122 in | Male Tube | 3.1 mm | 2068.43 kPa | 300 PSI | Solder Pad | 5.5 V | 4.5 V | 0.25 % | Board Mount | -40 C | 150 °C | Barbless | 4136.85 kPa | 600 PSI |
