M50-353 Series

Catalog

BTB CONN, HEADER, 6POS, 1ROWS, 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Current Rating (Amps)	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Type	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Insulation Material	Connector Type	Number of Positions	Mounting Type

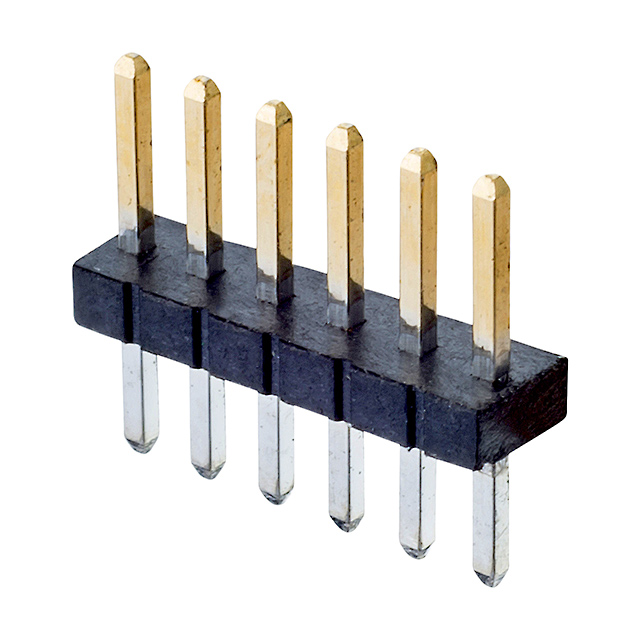

Harwin Inc. M50-3530642	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header	6	Through Hole

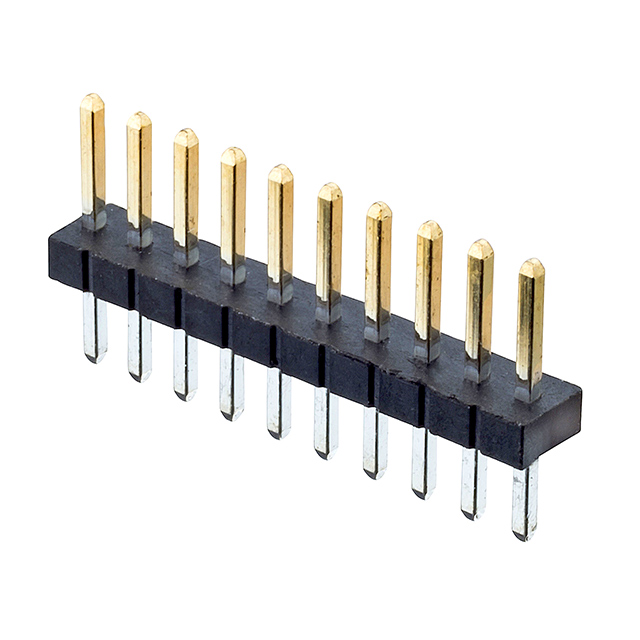

Harwin Inc. M50-3531042	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header	10	Through Hole

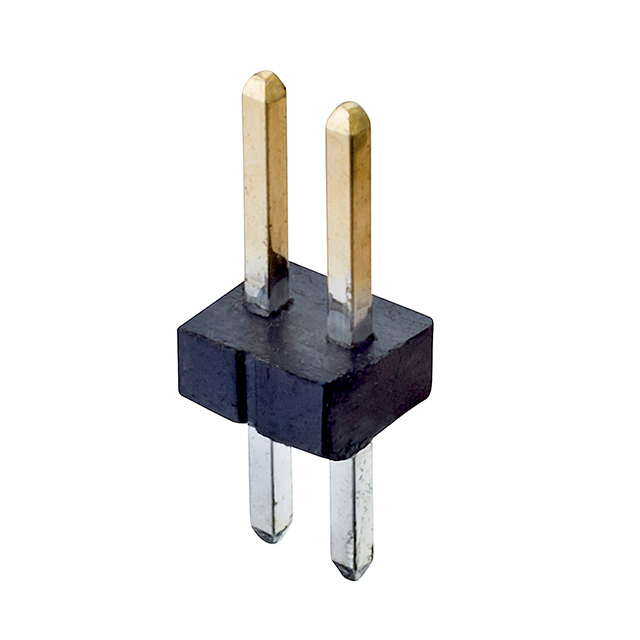

Harwin Inc. M50-3530242	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header	2	Through Hole

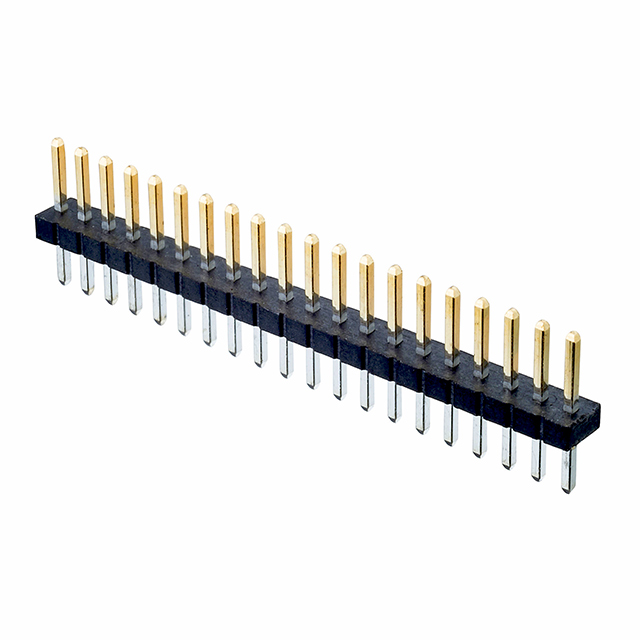

Harwin Inc. M50-3532042	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header	20	Through Hole
Harwin Inc. M50-3530442	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header	4	Through Hole

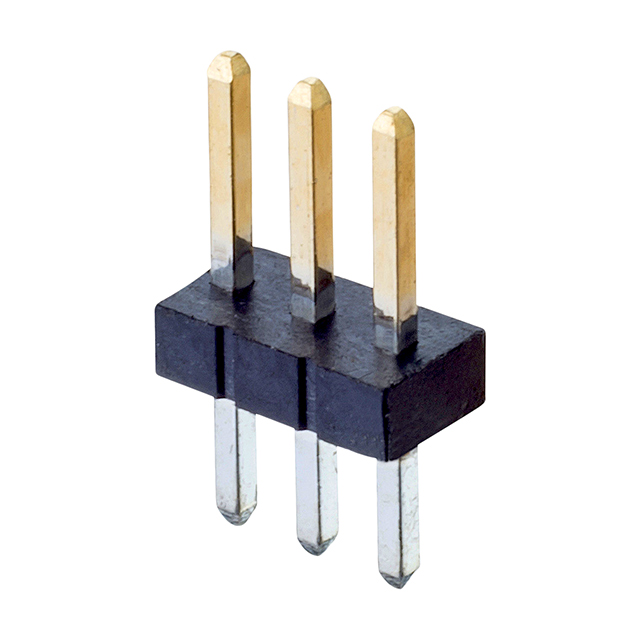

Harwin Inc. M50-3530342	2.54 µm	100 µin	3.1 mm 4.6 mm 5.4 mm	1 A	1	0.248 in	6.3 mm	Male Pin	UL94 V-0	Square	All	1 mm	0.039 in	Gold	Push-Pull	Tin	0.091 "	2.3 mm	1.27 mm	0.05 in	Solder	3 mm	0.118 in	Unshrouded	-40 C	105 ░C	Brass	Black	Nylon 9T Polyamide (PA9T)	Header		Through Hole
