PPPC092 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 18POS 0.1 GOLD PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish - Mating	Termination	Mounting Type	Material Flammability Rating	Connector Type	Contact Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

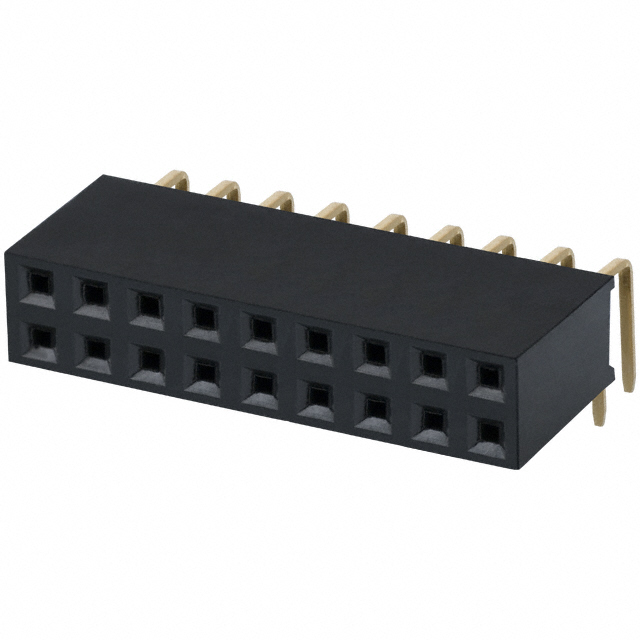

Sullins Connector Solutions PPPC092LJBN-RC	Phosphor Bronze	Square	Polyester	Flash	0.1 in	2.54 mm	Black	Gold	Solder	Right Angle Through Hole	UL94 V-0	Header	Female Socket	Gold	0.2 in	5.08 mm	Push-Pull	Flash	0.1 "	2.54 mm	3 A	250 V	0.124 in	3.15 mm	2	All	18	-40 C	105 ░C

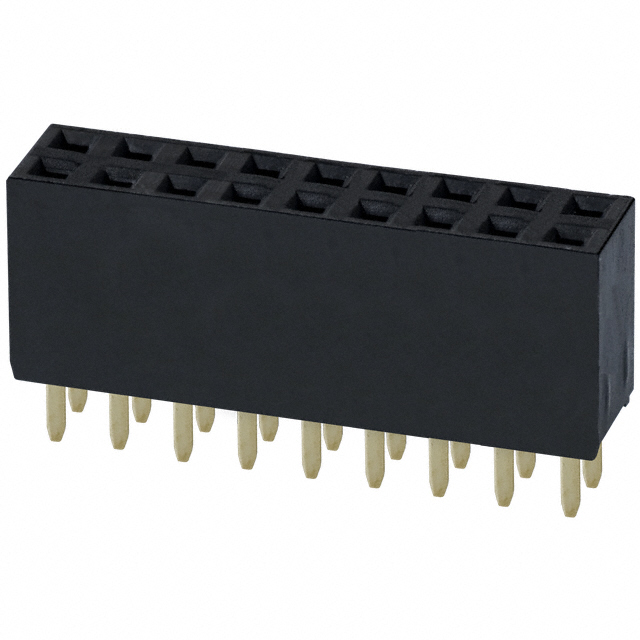

Sullins Connector Solutions PPPC092LFBN-RC	Phosphor Bronze	Square	Polyester	Flash	0.1 in	2.54 mm	Black	Gold	Solder	Through Hole	UL94 V-0	Header	Female Socket	Gold			Push-Pull	Flash	0.1 "	2.54 mm	3 A	250 V			2	All	18	-40 C	105 ░C	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPPC092KFMS	Phosphor Bronze	Square	Polyester	Flash	0.1 in	2.54 mm	Black	Gold	Solder	Surface Mount	UL94 V-0	Header	Female Socket	Gold	0.299 "		Push-Pull	Flash	0.1 "	2.54 mm	3 A	250 V			2	All	18	-40 C	125 °C				7.6 mm
Sullins Connector Solutions PPPC092LJBN	Phosphor Bronze	Square	Polyester	Flash	0.1 in	2.54 mm	Black	Gold	Solder	Right Angle Through Hole	UL94 V-0	Header	Female Socket	Gold	0.2 in	5.08 mm	Push-Pull	Flash	0.1 "	2.54 mm	3 A	250 V	0.124 in	3.15 mm	2	All	18	-40 C	105 ░C
Sullins Connector Solutions PPPC092LFBN	Phosphor Bronze	Square	Polyester	Flash	0.1 in	2.54 mm	Black	Gold	Solder	Through Hole	UL94 V-0	Header	Female Socket	Gold			Push-Pull	Flash	0.1 "	2.54 mm	3 A	250 V			2	All	18	-40 C	105 ░C	0.126 "	3.2 mm	0.335 "	8.51 mm
