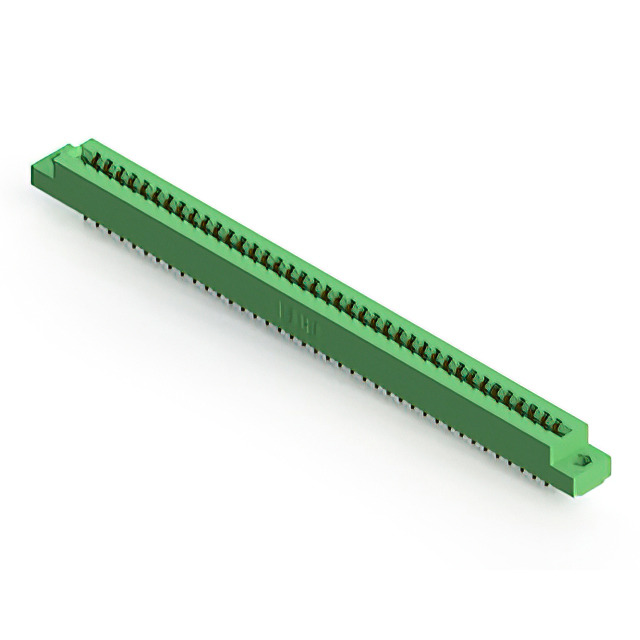

305-078 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 78 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Rows [custom]	Number of Positions/Bay/Row	Card Type	Flange Feature	Read Out	Gender	Color	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Features

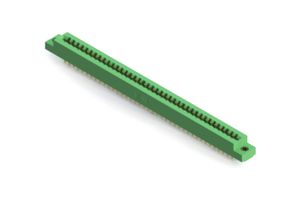

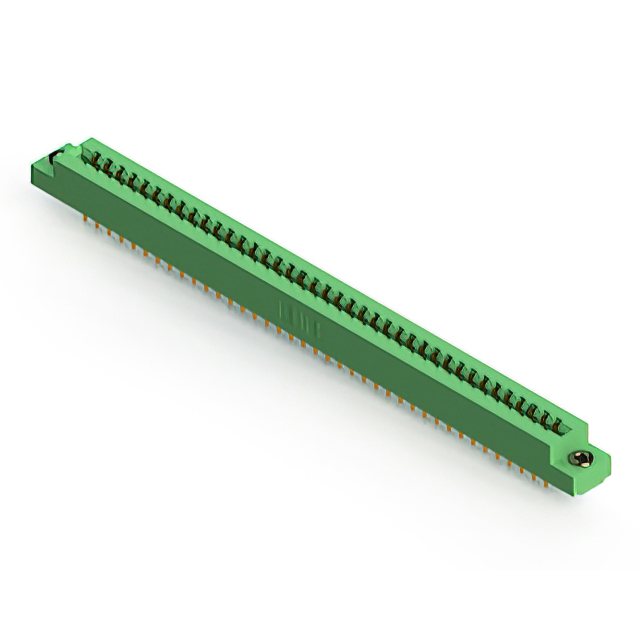

EDAC Inc. 305-078-520-507	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Dual	Female	Green	Solder
EDAC Inc. 305-078-500-202	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Dual	Female	Green	Solder Eyelet(s)	3.25 mm	0.128 "

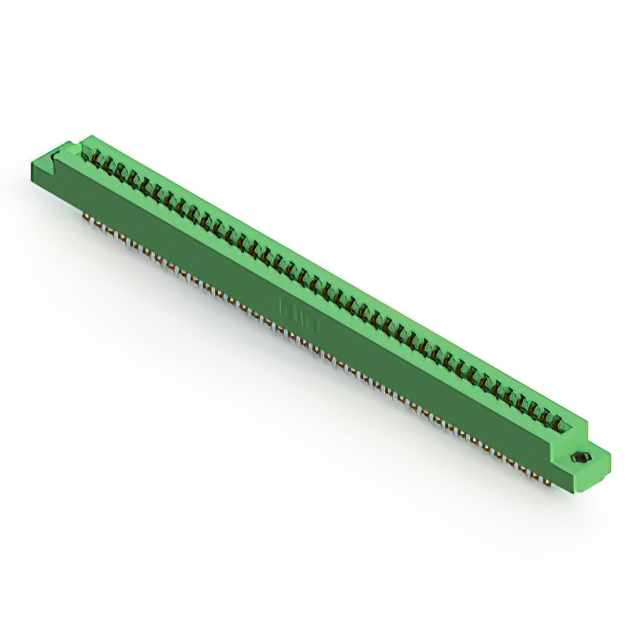

EDAC Inc. 305-078-555-207	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Dual	Female	Green	Solder			Card Extender

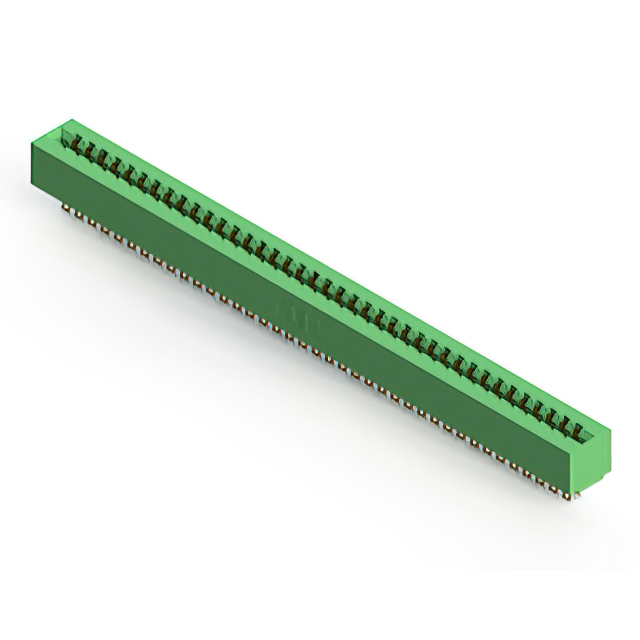

EDAC Inc. 305-078-555-201	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge		Dual	Female	Green	Solder			Card Extender

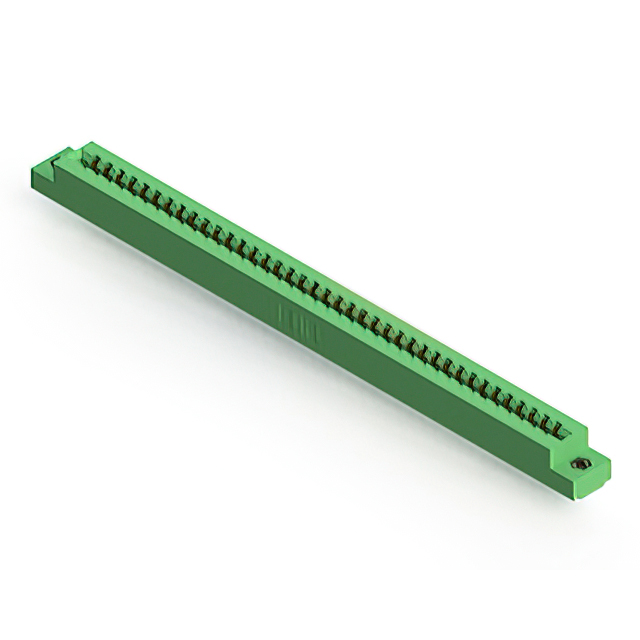

EDAC Inc. 305-078-521-508	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Green	Solder

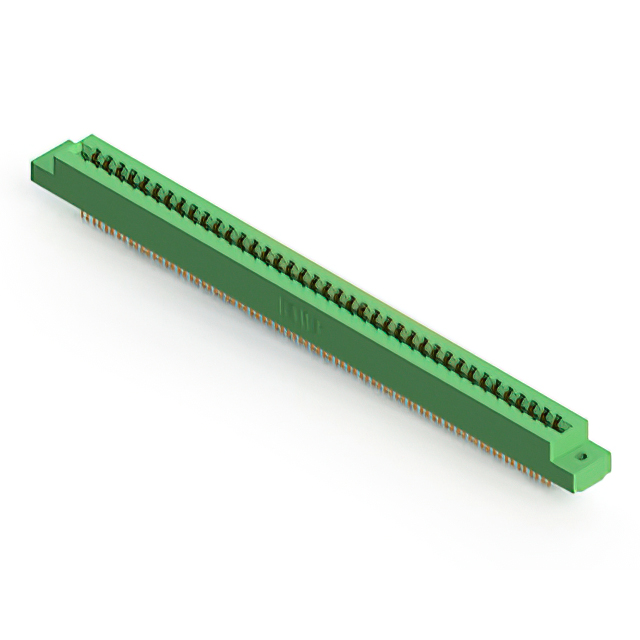

EDAC Inc. 305-078-500-502	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Dual	Female	Green	Solder Eyelet(s)	3.25 mm	0.128 "

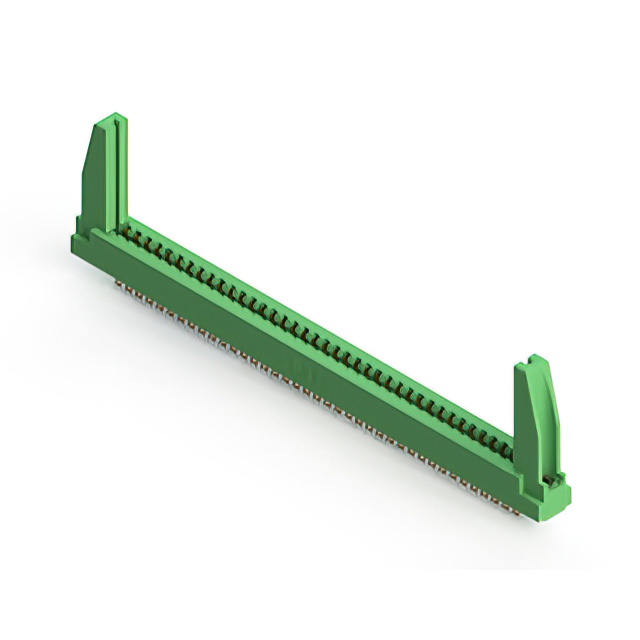

EDAC Inc. 305-078-555-578	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Green	Solder			Card Extender Card Guides

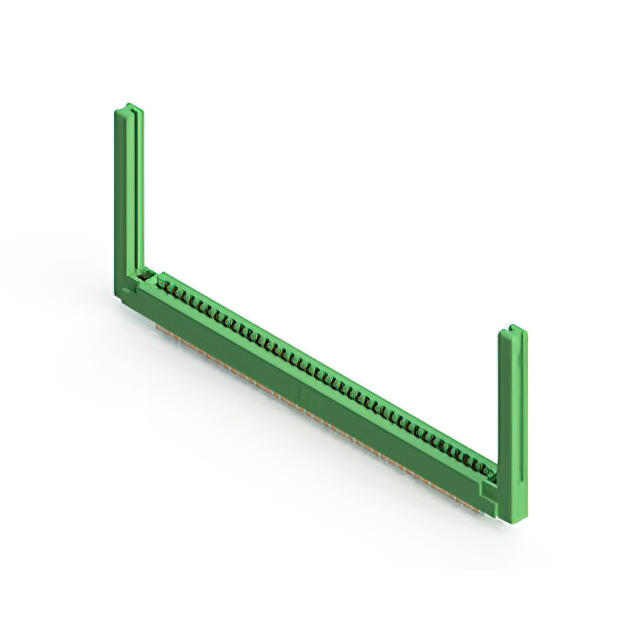

EDAC Inc. 305-078-500-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Green	Solder Eyelet(s)

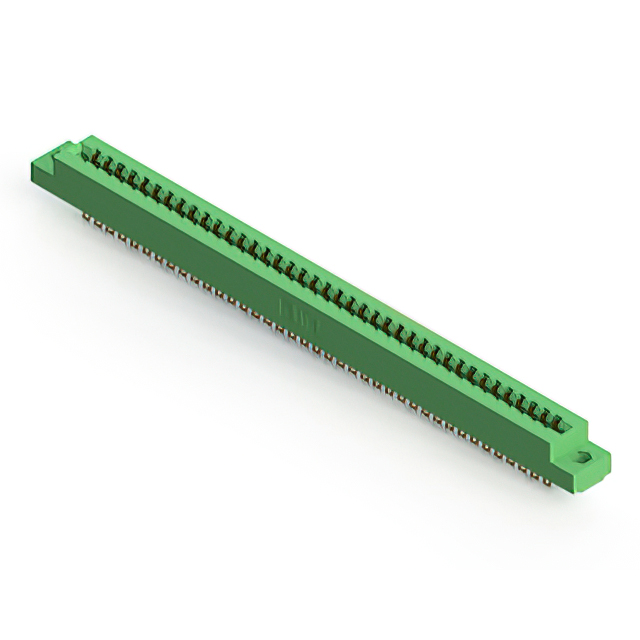

EDAC Inc. 305-078-555-204	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Dual	Female	Green	Solder	3.96 mm	0.156 "	Card Extender

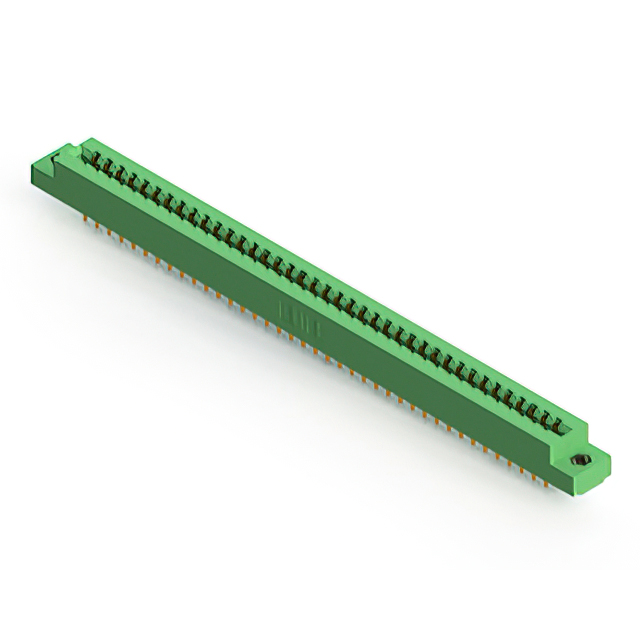

EDAC Inc. 305-078-520-208	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Copper Alloy	78	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	39	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Green	Solder
